HANDLEBAR

SFV650A GLADIUS 2014 (L4) USA (E03)

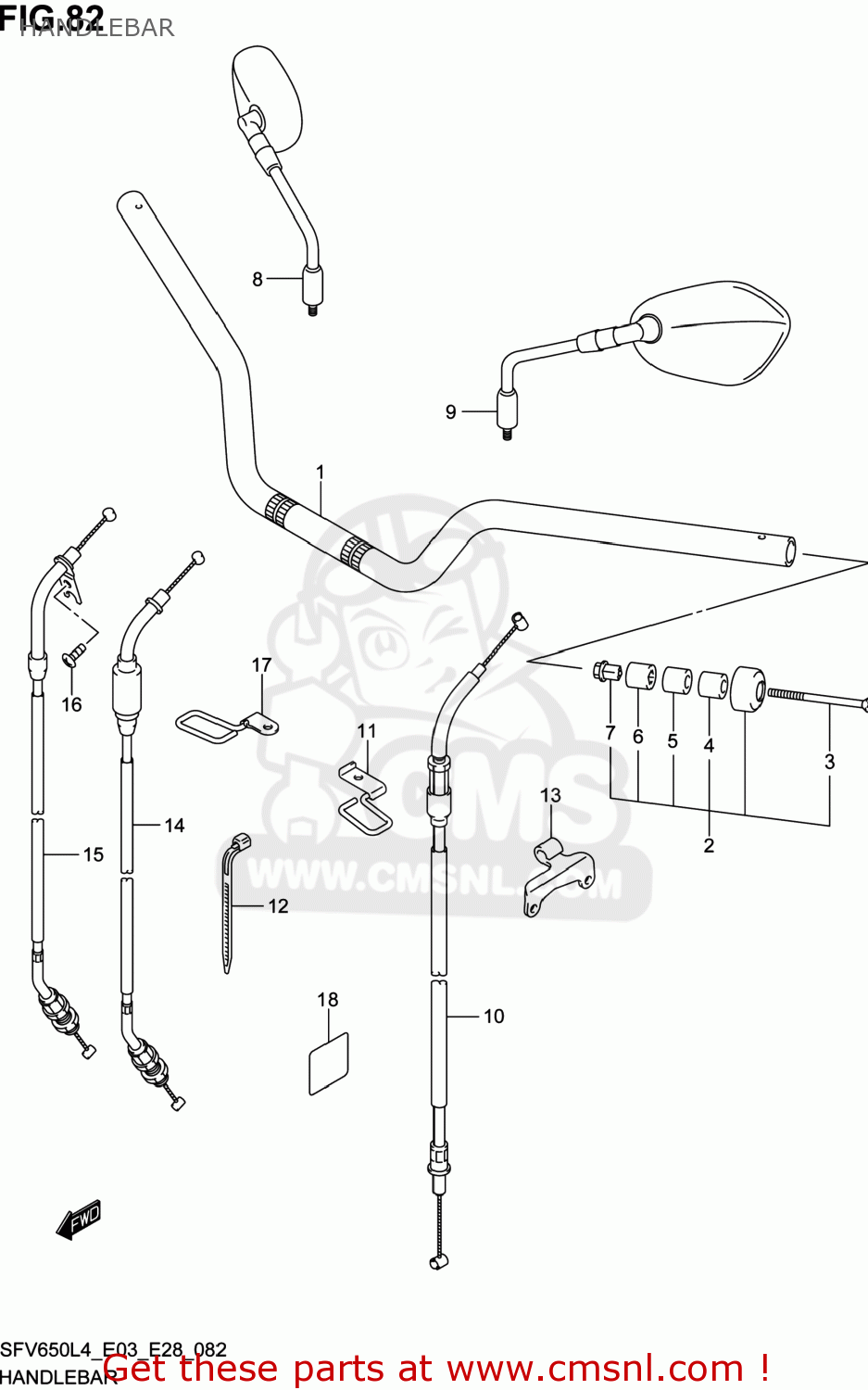

Handlebar diagram SFV650A GLADIUS 2014 (L4) USA (E03)

HANDLEBAR SFV650A GLADIUS 2014 (L4) USA (E03)

HANDLEBAR SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611144H00
ref: 1

HANDLEBAR

€ 116.00

2

5620041830
ref: 2

BALANCER SET,HANDLEBAR

€ 28.00

3

021220670B
ref: 3

SCREW

€ 2.50

4

5627242F00
ref: 4

EXPANDER,HANDLE BALANCER

€ 3.00

5

0918006161
ref: 5

SPACER(6.5X16X15)

€ 4.00

6

5627210G00
ref: 6

EXPANDER,HANDLE BALANCER

€ 3.00

7

5627310G10
ref: 7

NUT,HANDLE BALANCER

€ 6.50

8

5650008J10
ref: 8

MIRROR ASSY,RR VIEW,R

€ 91.00

9

5660008J10
ref: 9

MIRROR ASSY,RR VIEW,L

€ 91.00

10

5820044H00
ref: 10

CABLE ASSY,CLUTCH

€ 47.50

11

5863044H00
ref: 11

GUIDE,CLUTCH CABLE

€ 15.00

12

0940718402
ref: 12

CLAMP(L:165)

€ 2.50

13

5863444H00
ref: 13

STOPPER,CLUTCH CABLE

€ 9.50

14

5830044H00
ref: 14

CABLE ASSY,THROTTLE NO.1

€ 43.00

15

5830044H10
ref: 15

CABLE ASSY,THROTTLE NO.2

€ 41.00

16

0912505042
ref: 16

SCREW(5X10)

€ 2.50

17

5862044H20
ref: 17

GUIDE,THROTTLE CABLE

€ 15.00

18

8787356K50
ref: 18

PROTECTOR

€ 5.00
