FRONT MASTER CYLINDER (SFV650AL4 E28)

SFV650A GLADIUS 2014 (L4) USA (E03)

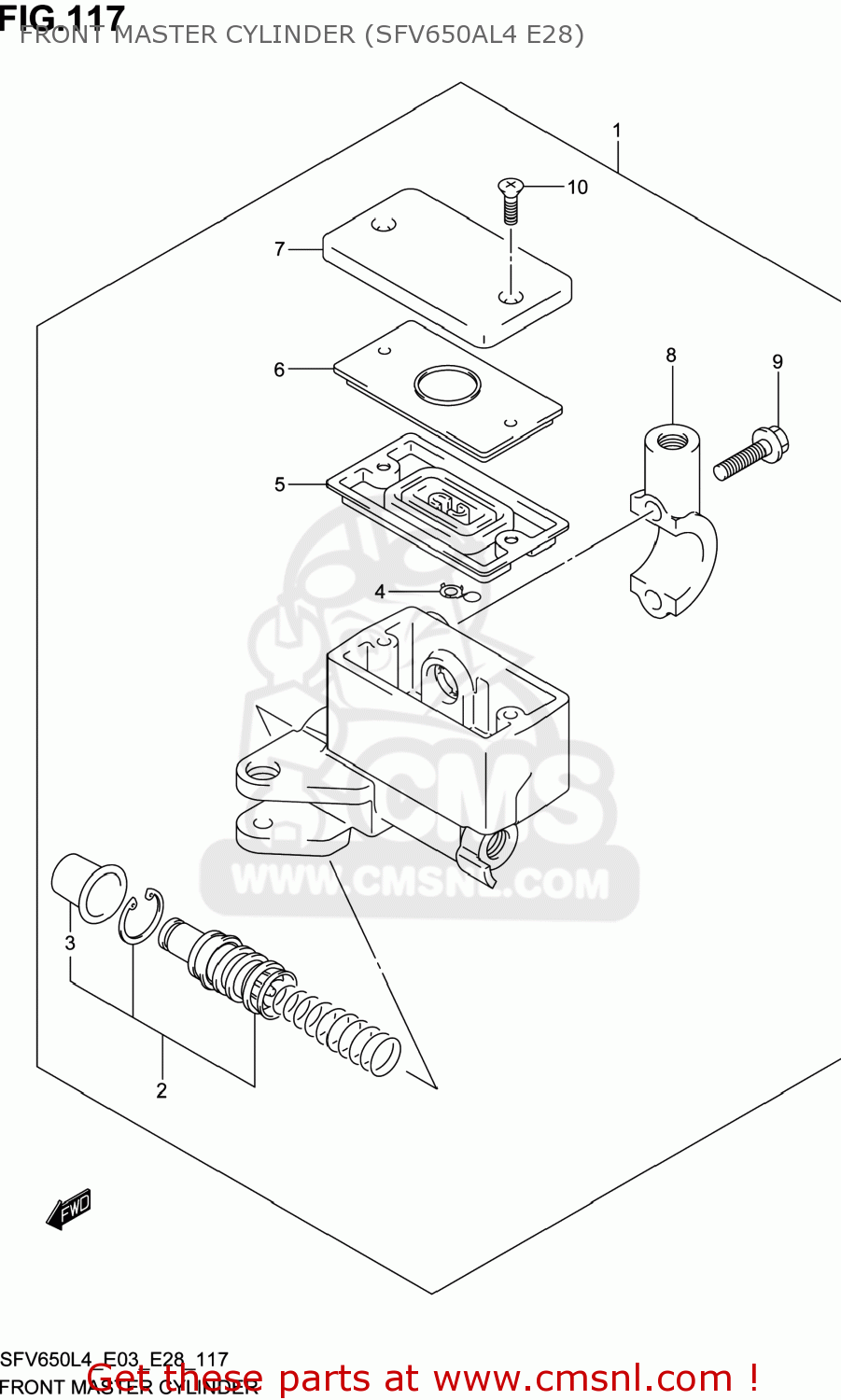

Front master cylinder (sfv650al4 e28) diagram SFV650A GLADIUS 2014 (L4) USA (E03)

FRONT MASTER CYLINDER (SFV650AL4 E28) SFV650A GLADIUS 2014 (L4) USA (E03)

FRONT MASTER CYLINDER (SFV650AL4 E28) SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960010G30
ref: 1

CYLINDER ASSY,FR MASTER

€ 190.00

2

5960045870
ref: 2

PISTON & CUP SET

€ 34.00

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966432F00
ref: 4

PROTECTOR

€ 7.50

5

5966749460
ref: 5

5966749460

6

5966841C00
ref: 6

PLATE,DIAPHRAGM

€ 8.00

7

5966910G00
ref: 7

CAP

€ 19.00

8

5967132F00
ref: 8

HOLDER

€ 17.00

9

5967502FA0
ref: 9

BOLT(6X22)

€ 3.00

10

6968949300
ref: 10

SCREW

€ 1.50
