RADIATOR HOSE

SFV650A GLADIUS 2014 (L4) USA (E03)

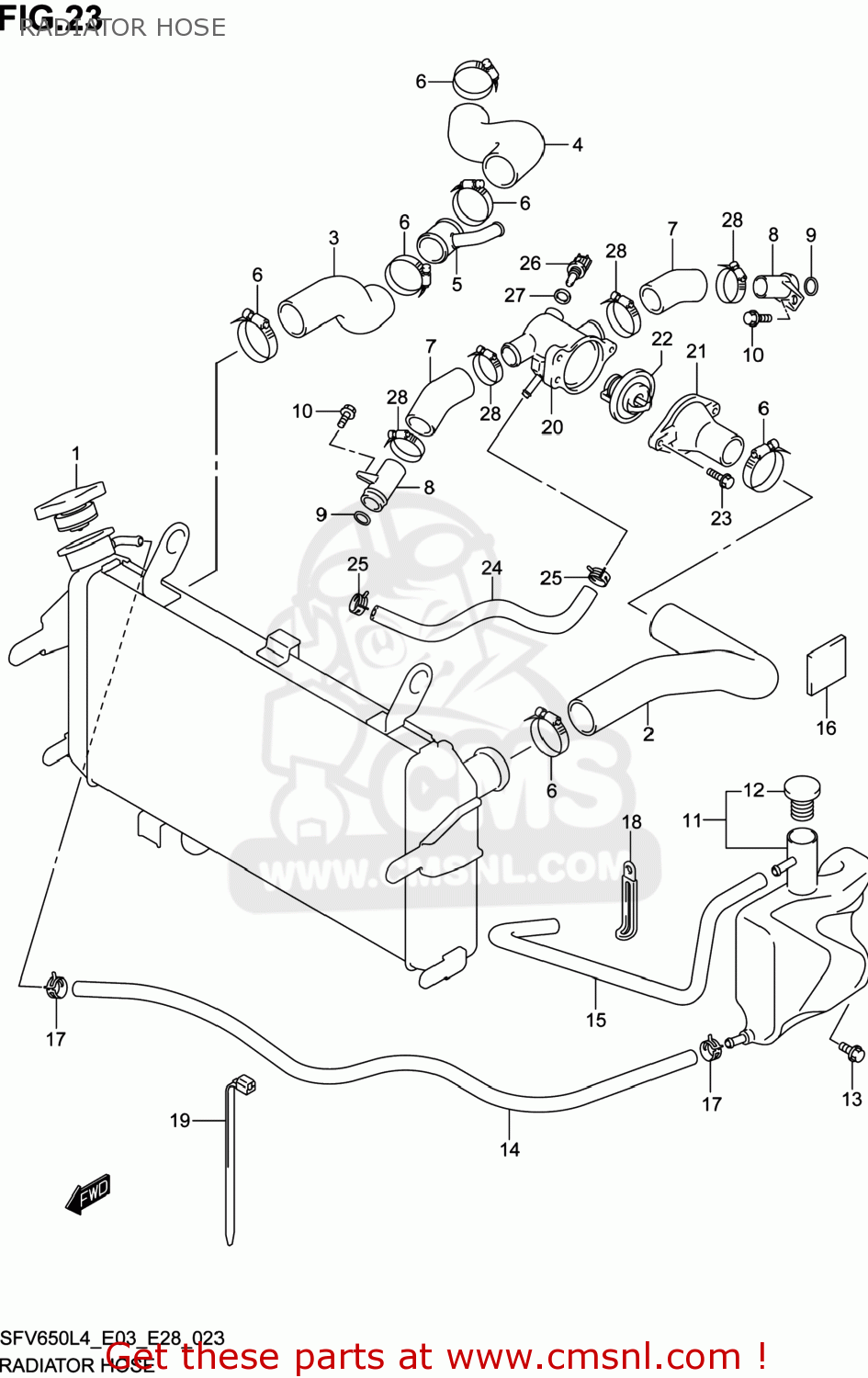

Radiator hose diagram SFV650A GLADIUS 2014 (L4) USA (E03)

RADIATOR HOSE SFV650A GLADIUS 2014 (L4) USA (E03)

RADIATOR HOSE SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1773012C30
ref: 1

CAP,RADIATOR

€ 33.50

2

1785144H00
ref: 2

HOSE,RADIATOR INLET

€ 38.50

3

1785244H00
ref: 3

HOSE,RADIATOR OUTLET NO.1

€ 15.00

4

1785444H00
ref: 4

HOSE,RADIATOR OUTLET NO.2

€ 16.50

5

1788044H00
ref: 5

UNION,WATER HOSE THREE WAY

€ 33.50

6

0940238512
ref: 6

CLAMP

€ 9.50

7

1785319F00
ref: 7

HOSE,CONNECTOR INLET

€ 11.50

8

1789006G20
ref: 8

UNION,CONNECTOR HOSE

€ 9.50

9

0928018008
ref: 9
09280-18009

O RING(D:3.2,ID:17.8)

€ 8.00

10

071300612A
ref: 10

BOLT

€ 2.50

11

1791044H00
ref: 11

TANK ASSY,RESERVOIR

€ 41.00

12

1793102FA0
ref: 12

CAP,RESERVOIR TANK

€ 4.50

13

0911106085
ref: 13

BOLT(6X12)

€ 4.50

14

1798144H00
ref: 14

HOSE,RESERVOIR TANK INLET

€ 12.00

15

1798244H00
ref: 15

HOSE,RESERVOIR TANK OVFL

€ 11.00

16

6319125C00
ref: 16

CUSHION

€ 2.50

17

0940108411
ref: 17

CLIP

€ 3.00

18

0940406429
ref: 18

CLAMP(L:45)

€ 2.50

19

0940719401
ref: 19

CLAMP(L:190)

€ 2.00

20

1766202F11
ref: 20

CONNECTOR,THERMOSTAT INLET

€ 40.00

21

1766317G00
ref: 21

CAP,THERMOSTAT CONNECTOR

€ 18.00

22

1767006G70
ref: 22

THERMOSTAT,WATER

€ 24.50

23

015470616A
ref: 23

BOLT

€ 2.00

24

1785644H00
ref: 24

HOSE,CONNECTOR TO WATER PUMP

€ 13.50

25

0940112409
ref: 25

CLAMP

€ 3.00

26

1365049X00
ref: 26

SENSOR,TEMP

€ 73.00

27

0916812017
ref: 27

GASKET(12X17X1) (NAS)

€ 2.00

28

0940228513
ref: 28

CLAMP

€ 6.50
