FUEL TANK (SFV650AL4 E33)

SFV650A GLADIUS 2014 (L4) USA (E03)

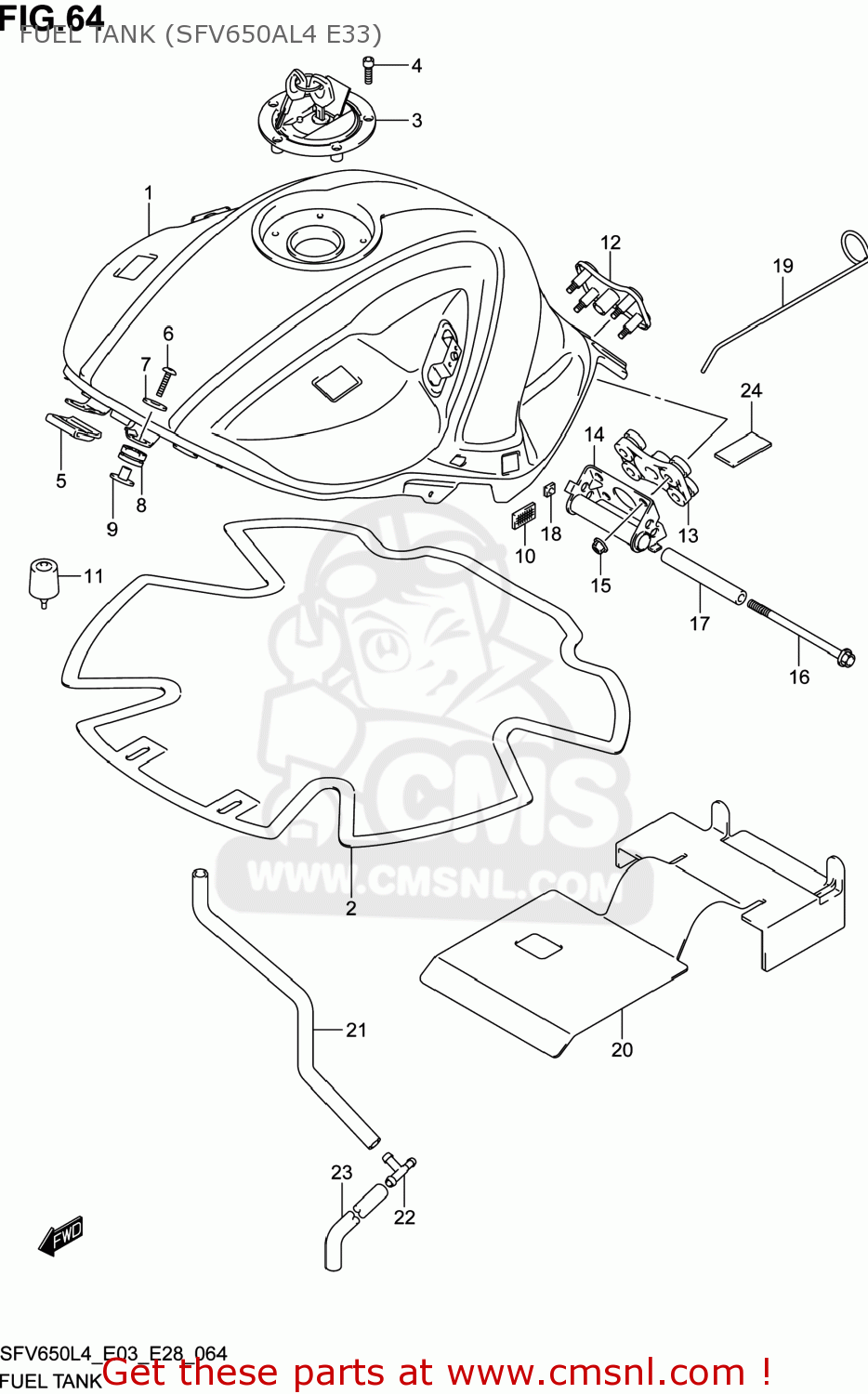

Fuel tank (sfv650al4 e33) diagram SFV650A GLADIUS 2014 (L4) USA (E03)

FUEL TANK (SFV650AL4 E33) SFV650A GLADIUS 2014 (L4) USA (E03)
FUEL TANK (SFV650AL4 E33) SFV650A GLADIUS 2014 (L4) USA (E03)
FUEL TANK (SFV650AL4 E33) SFV650A GLADIUS 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4410044H51YVB
ref: 1-1
TANK ASSY,FUEL(BLACK)
€ 0.00
1-2
4410044H51YWW
ref: 1-2
TANK ASSY,FUEL(WHITE)
€ 0.00
2
4419144H00
ref: 2
SHIELD,FUEL TANK HEAT
4419144H00
€ 71.00
3
4420016870
ref: 3
CAP SET,FUEL TANK
€ 148.50
4
0910605017
ref: 4
BOLT(5X20)
0910605017
€ 3.00
5
4454644H00
ref: 5
RUBBER,FUEL TANK FR
4454644H00
€ 8.50
6
0913906029
ref: 6
SCREW(6X25)
0913906029
€ 5.00
7
0916006012
ref: 7
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
8
4451116G00
ref: 8
CUSHION,FUEL TANK FR
4451116G00
€ 4.00
9
4451216G00
ref: 9
SPACER,FUEL TANK FR
4451216G00
€ 6.50
10
4791237H00
ref: 10
FASTENER,FRAME COVER
4791237H00
€ 8.00
11
4454229G00
ref: 11
CUSHION,FUEL TANK RR
4454229G00
€ 6.00
12
4457016G00
ref: 12
BRACKET,FUEL TANK RR UP
4457016G00
€ 12.50
13
4454216G00
ref: 13
CUSHION,FUEL TANK RR
4454216G00
€ 11.50
14
4453044H00
ref: 14
BRACKET,FUEL TANK RR
4453044H00
€ 18.00
15
083193106A
ref: 15
NUT
083193106A
€ 2.50
16
0910306060
ref: 16
BOLT(6X100)
0910306060
€ 2.50
17
4456135F00
ref: 17
SPACER,FUEL TANK RR
€ 10.50
18
083181106A
ref: 18
NUT
€ 1.50
19
4457416G00
ref: 19
STAY,FUEL TANK
4457416G00
€ 11.50
20
4427144H00
ref: 20
SHEET,HEAT SHIELD RUBBER
4427144H00
€ 46.00
21
4442344H00
ref: 21
HOSE,FUEL TANK WATER DRAIN
4442344H00
€ 10.00
22
0936708005
ref: 22
3 WAY
0936708005
€ 4.00
23
4442344H10
ref: 23
HOSE,WATER DRAIN
4442344H10
€ 5.50
24
3692008D10
ref: 24
PROTECTOR(30X30X3)
€ 2.00
