STAND

SFV650A GLADIUS 2014 (L4) USA (E03)

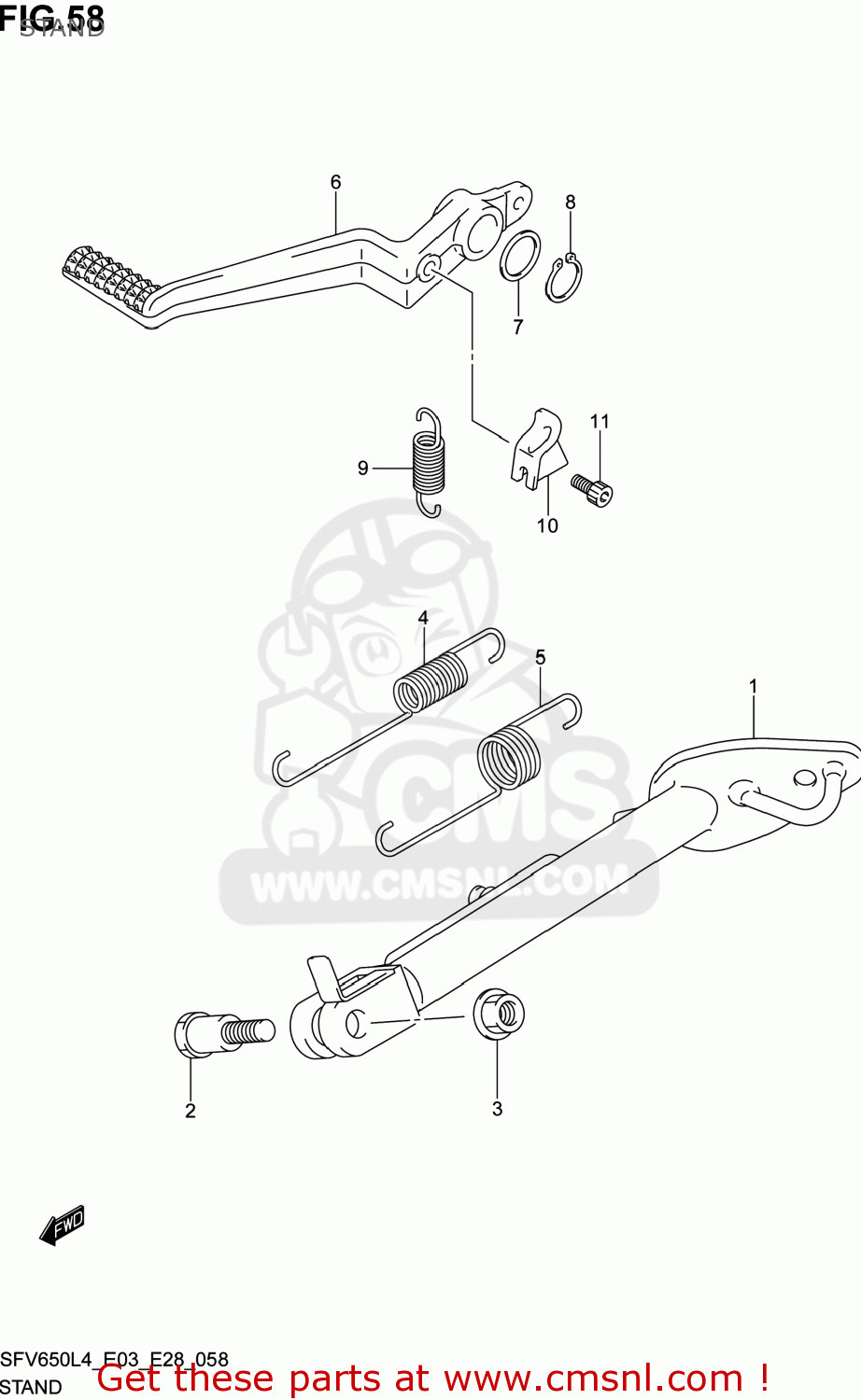

Stand diagram SFV650A GLADIUS 2014 (L4) USA (E03)

STAND SFV650A GLADIUS 2014 (L4) USA (E03)

STAND SFV650A GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231044H00
ref: 1

STAND,PROP

€ 136.00

2

0911110059
ref: 2

BOLT(10X21)

€ 7.00

3

083193110A
ref: 3

NUT

€ 3.00

4

0944315046
ref: 4

SPRING

€ 7.50

5

0944322017
ref: 5

SPRING

€ 7.00

6

4311144G10
ref: 6

PEDAL,BRAKE

€ 75.50

7

0916018022
ref: 7

WASHER(18X24X1)

€ 3.00

8

083313118A
ref: 8

CIRCLIP

€ 2.00

9

0944311030
ref: 9

SPRING

€ 4.00

10

4356144G00
ref: 10

BRACKET,RETURN SPRING

€ 5.00

11

071300610B
ref: 11

BOLT

€ 2.50
