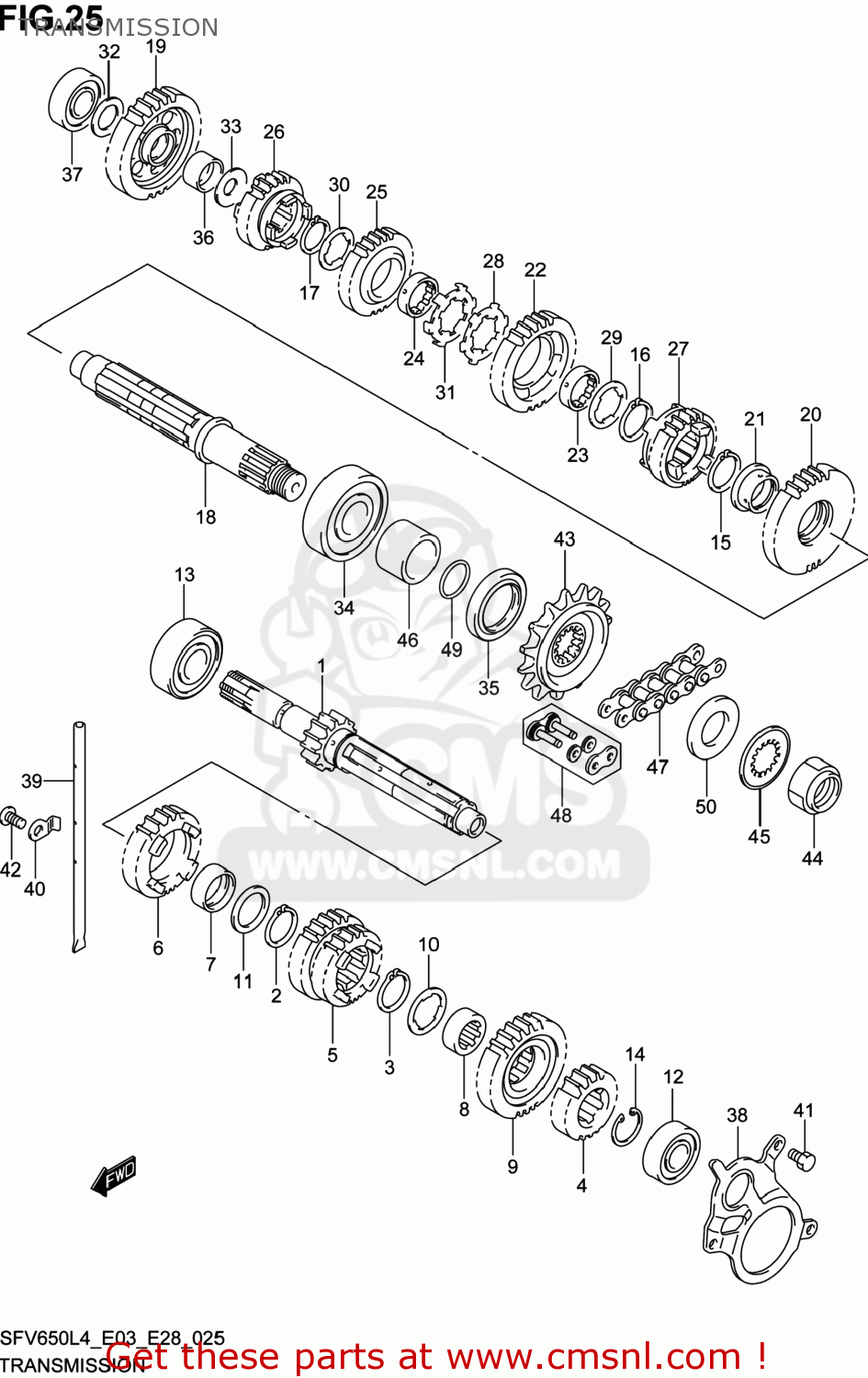

TRANSMISSION

ref

part #

description

quantity

1

2412027G00
ref: 1

SHAFT,COUNTER

€ 180.00

2

2412719F00
ref: 2

CIRCLIP

€ 2.00

3

2412719F00
ref: 3

CIRCLIP

€ 2.00

4

2422120F10
ref: 4

GEAR,2ND DRIVE

€ 70.00

5

2423120F10
ref: 5

GEAR,3RD & 4TH DRIVE

€ 91.50

5

2423120F10
ref: 5

GEAR,3RD & 4TH DRIVE

€ 91.50

6

2425120F02
ref: 6

GEAR,5TH DRIVE(NT:26)

€ 78.50

7

2425219F00
ref: 7

BUSH

€ 9.50

8

2425238A10
ref: 8

BUSH,6TH DRIVE GEAR

€ 10.50

9

2426120F00
ref: 9

GEAR,6TH DRIVE(NT:27)

€ 85.00

10

0916725021
ref: 10

WASHER,LOCK

€ 3.00

11

0918125167
ref: 11

SHIM(25X34X1)

€ 3.50

12

0926217046
ref: 12

BEARING(17X40X12)

€ 23.00

13

0926220145
ref: 13

BEARING(20X52X15)

€ 24.00

14

0938025012
ref: 14

CIRCLIP

€ 2.00

15

2412719F00
ref: 15

CIRCLIP

€ 2.00

16

2412719F00
ref: 16

CIRCLIP

€ 2.00

17

2412719F00
ref: 17

CIRCLIP

€ 2.00

18

2413044H10
ref: 18

SHAFT,DRIVE

€ 220.50

19

2431144H00
ref: 19

GEAR,1ST DRIVEN

€ 82.50

20

2432144H10
ref: 20

GEAR,2ND DRIVEN

€ 75.50

21

2432219F10
ref: 21

BUSH,2ND DRIVEN GEAR

€ 15.00

22

2433144H00
ref: 22

GEAR,3RD DRIVEN

€ 78.50

23

2433224510
ref: 23

BUSH,DRIVEN GEAR

€ 9.50

24

2433224510
ref: 24

BUSH,DRIVEN GEAR

€ 9.50

25

2434144H00
ref: 25

GEAR,4TH DRIVEN

€ 83.50

26

2435144H10
ref: 26

GEAR,5TH DRIVEN

€ 43.50

27

2436144H00
ref: 27

GEAR,6TH DRIVEN

€ 82.50

28

0916725013
ref: 28

WASHER,LOCK

€ 2.50

29

0916725021
ref: 29

WASHER,LOCK

€ 3.00

30

0916725021
ref: 30

WASHER,LOCK

€ 3.00

31

0916925001
ref: 31

WASHER

€ 2.00

32

0918117195
ref: 32

SHIM(17X28X1)

€ 3.00

33

0918120195
ref: 33

SHIM(20X30X1)

€ 3.00

34

0926225125
ref: 34

BEARING(25X62X17)

€ 49.00

35

0928336011
ref: 35

SEAL,OIL(36X50X6)

€ 18.50

36

0930020032
ref: 36

BUSH(20X24X13)

€ 10.00

37

0926217023
ref: 37

BEARING(17X40X12)

€ 14.00

38

2475119F10
ref: 38

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

39

2488112C20
ref: 39

GUIDE,T/M OIL

€ 9.50

40

2488512C10
ref: 40

RETAINER,TRANSMISSION OIL

€ 2.00

41

015000612A
ref: 41

BOLT

€ 2.00

42

021120612A
ref: 42

SCREW

€ 1.50

43

2751002D10
ref: 43

SPROCKET,ENGINE(NT:15)

€ 29.50

44

0915920004
ref: 44

NUT

€ 12.00

45

0916725028
ref: 45

WASHER,LOCK

€ 2.00

46

2753119F10
ref: 46

SPACER,ENGINE SPROCKET

€ 20.00

47

2760044H00112
ref: 47

CHAIN,DRIVE(DID 520VM2)

€ 135.00

48

2762044H00
ref: 48

JOINT SET,DRIVE CHAIN

€ 13.50

49

0928024010
ref: 49

O RING(D:2.4,ID:23.7)

€ 5.50

50

0821125442
ref: 50

WASHER

€ 3.00
