BALANCER CHAIN

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

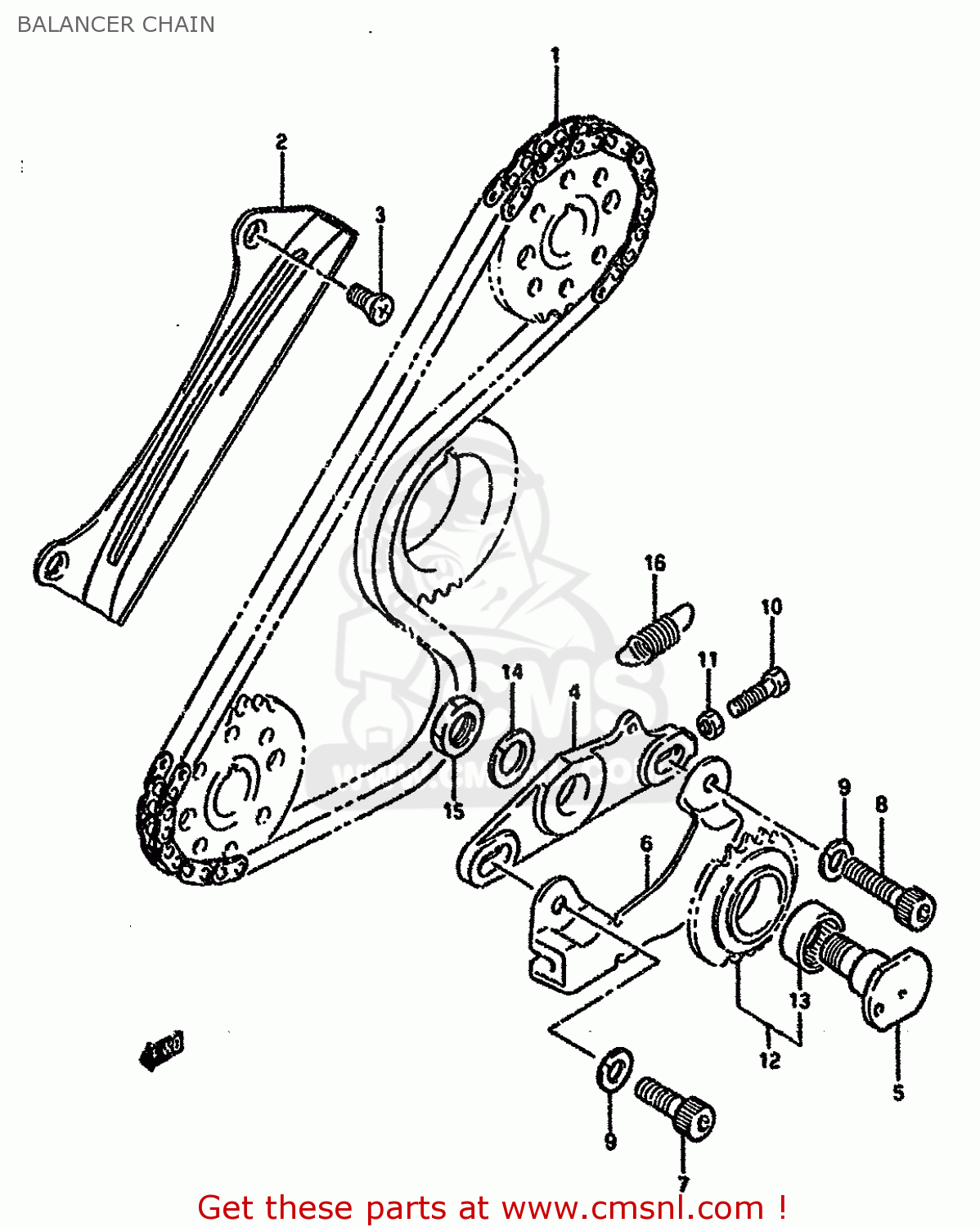

Balancer chain diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1267012D00
ref: 1

CHAIN,BALANCER

€ 111.50

1269512D00
ref: 2

GUIDE,BALANCER CHAIN

€ 20.00

0212206163
ref: 3

SCREW ,6X16

€ 2.00

1268112D00
ref: 4

BRACKET,BALANCER CHAIN

€ 48.50

1268214A01
ref: 5

SHAFT,BALANCER CHAIN TENSIONER

€ 29.00

1269612D00
ref: 6

GUIDE,BALANCER CHAIN TNSN

€ 26.00

0910608005
ref: 7

BOLT(8X22)

€ 2.00

0713008303
ref: 8

BOLT

€ 3.00

9-1

0832101087
ref: 9-1
MODEL M/N/P

WASHER,LOCK

€ 2.00

9-2

0832101083
ref: 9-2
MODEL R/S/T

LOCK WASHER

€ 2.50

0150005163
ref: 10

BOLT

€ 1.50

0914005006
ref: 11

NUT

€ 2.00

1268544B00
ref: 12

SPRKT,BALANCER CHAIN TENSIONER

€ 75.00

0926317007
ref: 13

BEARING(17X23X12)

€ 13.00

0916212006
ref: 14

WASHER,LOCK

€ 2.50

0914012021
ref: 15

NUT

€ 2.50

0944310040
ref: 16

SPRING

€ 2.50
