GEAR SHIFTING

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

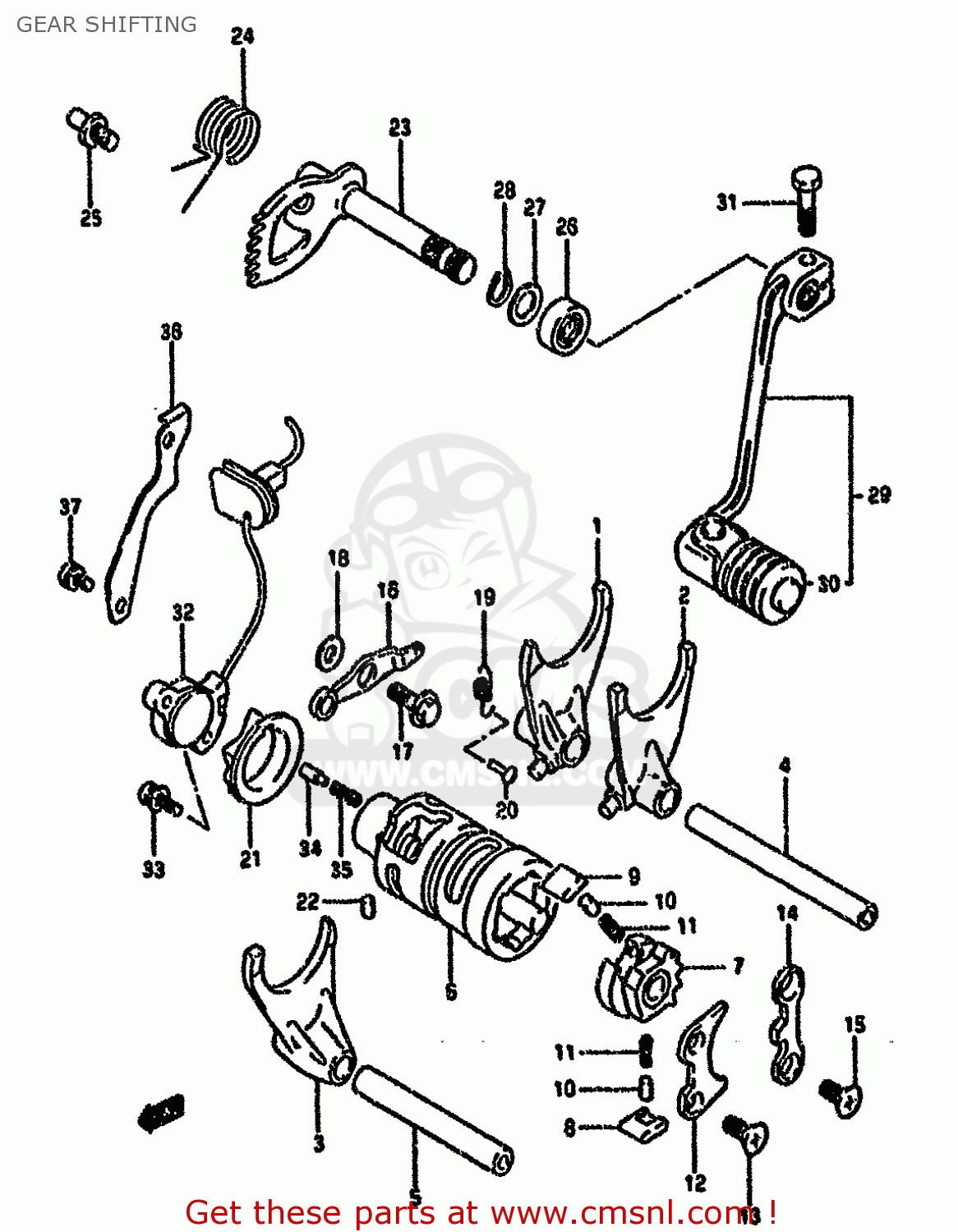

Gear shifting diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

GEAR SHIFTING DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
GEAR SHIFTING DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
GEAR SHIFTING DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
2521137400
ref: 1
FORK,GEAR SHIFT NO.1
€ 58.50
2
2522137400
ref: 2
FORK,GEAR SHIFT NO.2
€ 58.50
3
2523114A00
ref: 3
FORK,GEAR SHIFT NO.3
€ 54.50
4
2541120A11
ref: 4
-25411-14500
SHAFT,GEAR SHIFT FORK
2541120A11
€ 14.50
5-1
2542114A01
ref: 5-1
MODEL M/N/P
SHAFT,GEAR SHIFT FORK
€ 14.50
5-2
2542114A02
ref: 5-2
MODEL R/S/T
SHAFT,GEAR SHIFT FORK
2542114A02
€ 14.50
6
2531037400
ref: 6
CAM,GEAR SHIFT
2531037400
€ 91.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533114A00
ref: 12
LIFTER,GEAR SHAFT PAWL
2533114A00
€ 6.00
13-1
0212206127
ref: 13-1
MODEL M/N/P
SCREW
0212206127
€ 3.00
13-2
0212206123
ref: 13-2
MODEL R/S/T
SCREW
0212206123
€ 3.00
14
2534140001
ref: 14
STOPPER,GEAR SHIFT POLE
2534140001
€ 6.50
15-1
0212206127
ref: 15-1
MODEL M/N/P
SCREW
0212206127
€ 3.00
15-2
0212206123
ref: 15-2
MODEL R/S/T
SCREW
0212206123
€ 3.00
16
2535037400
ref: 16
STOPPER,GEAR SHIFT CAM
2535037400
€ 8.00
17-1
0911106019
ref: 17-1
MODEL M/N/P
BOLT
€ 1.50
17-2
0911106054
ref: 17-2
MODEL R/S/T
BOLT(6X14.6)
0911106054
€ 1.50
18
0821106141
ref: 18
WASHER
0821106141
€ 2.50
19
0944308020
ref: 19
SPRING
0944308020
€ 2.00
20
0922304001
ref: 20
RIVET
0922304001
€ 1.50
21-1
2538137400
ref: 21-1
MODEL M/N/P
PLATE,SHIFT CAM STOPPER
€ 10.50
21-2
2538137401
ref: 21-2
MODEL R/S/T
PLATE,GEAR SHIFT CAM STOPPER
2538137401
€ 10.50
22-1
0621104063
ref: 22-1
MODEL M/N/P/R/S
PIN 4X6
0621104063
€ 2.00
22-2
0422104069
ref: 22-2
MODEL T
PIN
0422104069
€ 2.00
23-1
2551014A02
ref: 23-1
MODEL M/N/P/R/S
SHAFT,GEAR SHIFT
2551014A02
€ 64.00
23-2
2551032E00
ref: 23-2
MODEL T
SHAFT,GEAR SHIFT
2551032E00
€ 64.00
24
0944426013
ref: 24
-09444-26012
SPRING
0944426013
€ 3.50
25
2567101000
ref: 25
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
26
0928512002
ref: 26
OIL SEAL
0928512002
€ 7.00
27
0821212201
ref: 27
WASHER
0821212201
€ 1.50
28
0833131126
ref: 28
CIRCLIP,12 MM
0833131126
€ 2.00
29
2560012D11
ref: 29
LEVER ASSY,GEAR SHIFT
2560012D11
€ 104.50
30
2565203D00
ref: 30
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.50
31-1
0150006203
ref: 31-1
MODEL M/N/P-09100-06
BOLT
0150006203
€ 2.00
31-2
0155006203
ref: 31-2
MODEL R/S/T
BOLT
0155006203
€ 2.50
32
3772014A11
ref: 32
BASE ASSY,NEUTRAL SW TERMINAL
3772014A11
€ 72.50
33-1
0211275168
ref: 33-1
MODEL M/N/P
SCREW
0211275168
€ 2.50
33-2
0211275163
ref: 33-2
MODEL R/S/T
SCREW
0211275163
€ 2.50
34
0920905011
ref: 34
PIN(5X15.5)
0920905011
€ 2.00
35
0944004010
ref: 35
SPRING
0944004010
€ 1.50
36
3772114A00
ref: 36
CLAMP,LEAD WIRE
3772114A00
€ 3.50
37-1
0211236108
ref: 37-1
MODEL M/N/P
SCREW
€ 0.00
37-2
0211236103
ref: 37-2
MODEL R/S/T
SCREW
€ 1.50
up

all assemblies
