ELECTRICAL

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

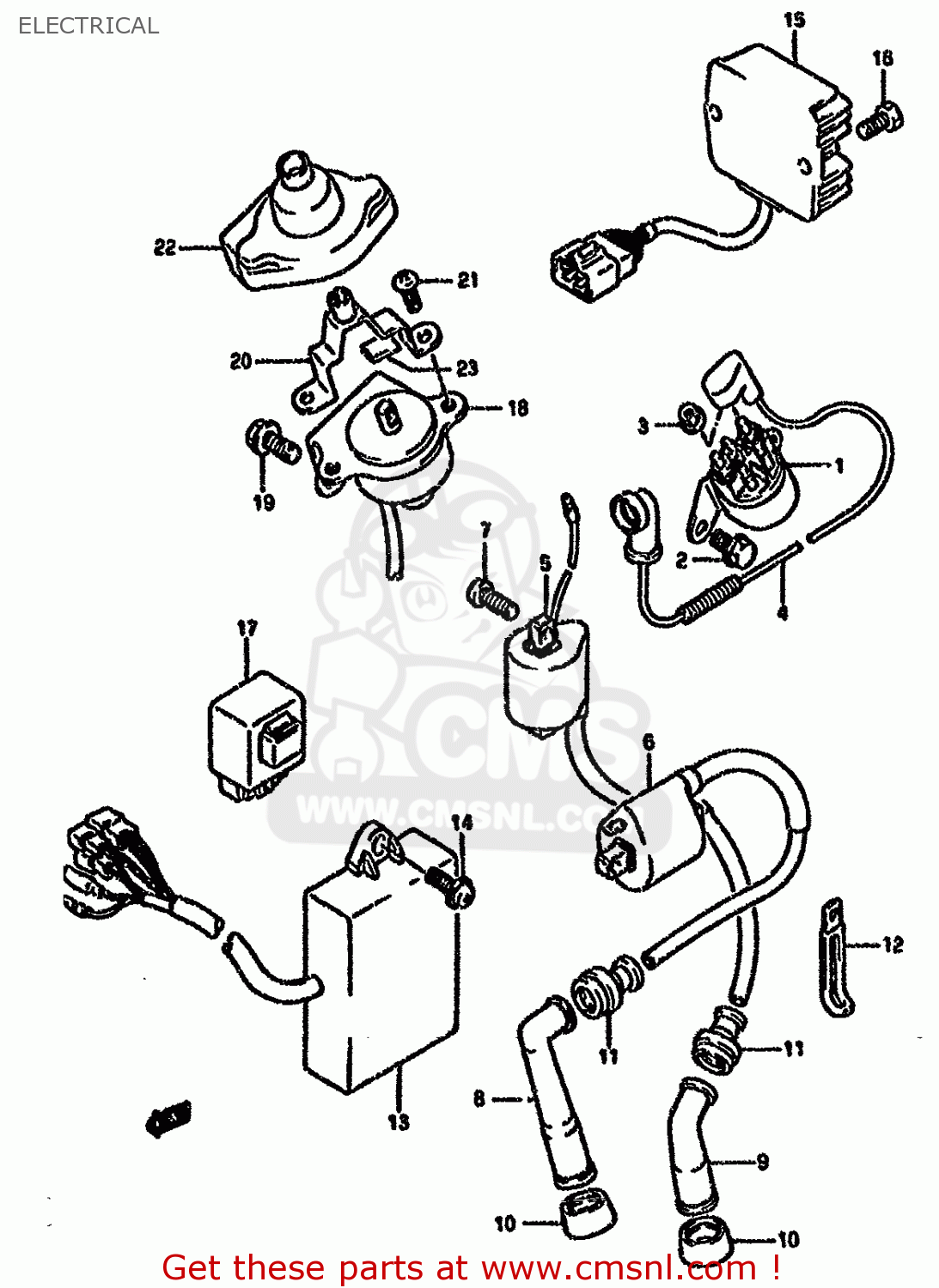

Electrical diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

ELECTRICAL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
ELECTRICAL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
ELECTRICAL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2-1
0151706106
ref: 2-1
MODEL M/N/P
BOLT
0151706106
€ 2.50
2-2
0155006103
ref: 2-2
MODEL R/S/T
BOLT
0155006103
€ 2.50
3
0836135066
ref: 3
NUT
€ 2.00
4
3381041C00
ref: 4
-33810-12D00
WIRE,STARTER MOTOR LEAD
3381041C00
€ 29.00
5
3341012D10
ref: 5
COIL ASSY,IGNITION
3341012D10
€ 95.50
6
3341012D20
ref: 6
COIL ASSY,IGNITION
3341012D20
€ 100.00
7-1
0211206206
ref: 7-1
MODEL M/N/P
SCREW
0211206206
€ 2.00
7-2
0211206203
ref: 7-2
MODEL R/S/T
SCREW, 6X20
0211206203
€ 2.00
8
3351045010
ref: 8
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
9
3351043010
ref: 9
CAP,SPARK PLUG
3351043010
€ 11.50
10
3354124510
ref: 10
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
11
3354238B00
ref: 11
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
12-1
0940406402
ref: 12-1
MODEL M/N/P/R/S
CLAMP
€ 2.50
12-2
0940406429
ref: 12-2
MODEL T
CLAMP(L:45)
€ 2.50
13-1
3290012D10
ref: 13-1
MODEL M/N/P/R/S
CDI UNIT
€ 521.50
13-2
3290012D20
ref: 13-2
MODEL T
CDI UNIT
3290012D20
€ 390.50
14-1
0215206166
ref: 14-1
MODEL M/N/P
SCREW
€ 2.00
14-2
0214206163
ref: 14-2
MODEL R/S/T
SCREW
0214206163
€ 2.50
15
3280034A01
ref: 15
-32800-34A00
RECTIFIER ASSY
3280034A01
€ 194.50
16-1
0912806038
ref: 16-1
MODEL M/N/P
SCREW
€ 1.00
16-2
0912806045
ref: 16-2
MODEL R/S/T
BOLT(6X12)
€ 1.00
17
3291031D00
ref: 17
CONTROL UNIT,DECOMP
3291031D00
€ 110.50
18
3397012D00
ref: 18
SOLENOID ASSY,DECOMP
3397012D00
€ 168.00
19-1
0118708165
ref: 19-1
MODEL M/N/P
BOLT
€ 3.00
19-2
0158008123
ref: 19-2
MODEL R/S
BOLT
0158008123
€ 3.50
19-3
0155008123
ref: 19-3
MODEL T
BOLT
0155008123
€ 3.50
20
3397112D00
ref: 20
HOLDER,DECOMPRESSION CABLE
€ 14.50
21-1
0211206126
ref: 21-1
MODEL M/N/P
SCREW
0211206126
€ 1.50
21-2
0211206123
ref: 21-2
MODEL R/S/T
SCREW
0211206123
€ 1.50
22
3397312D00
ref: 22
COVER,DECOMP
€ 12.50
23
3365219B00
ref: 23
-33972-31D00
CUSHION,BATTERY(80X27X3)
3365219B00
€ 4.50
