TRANSMISSION

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

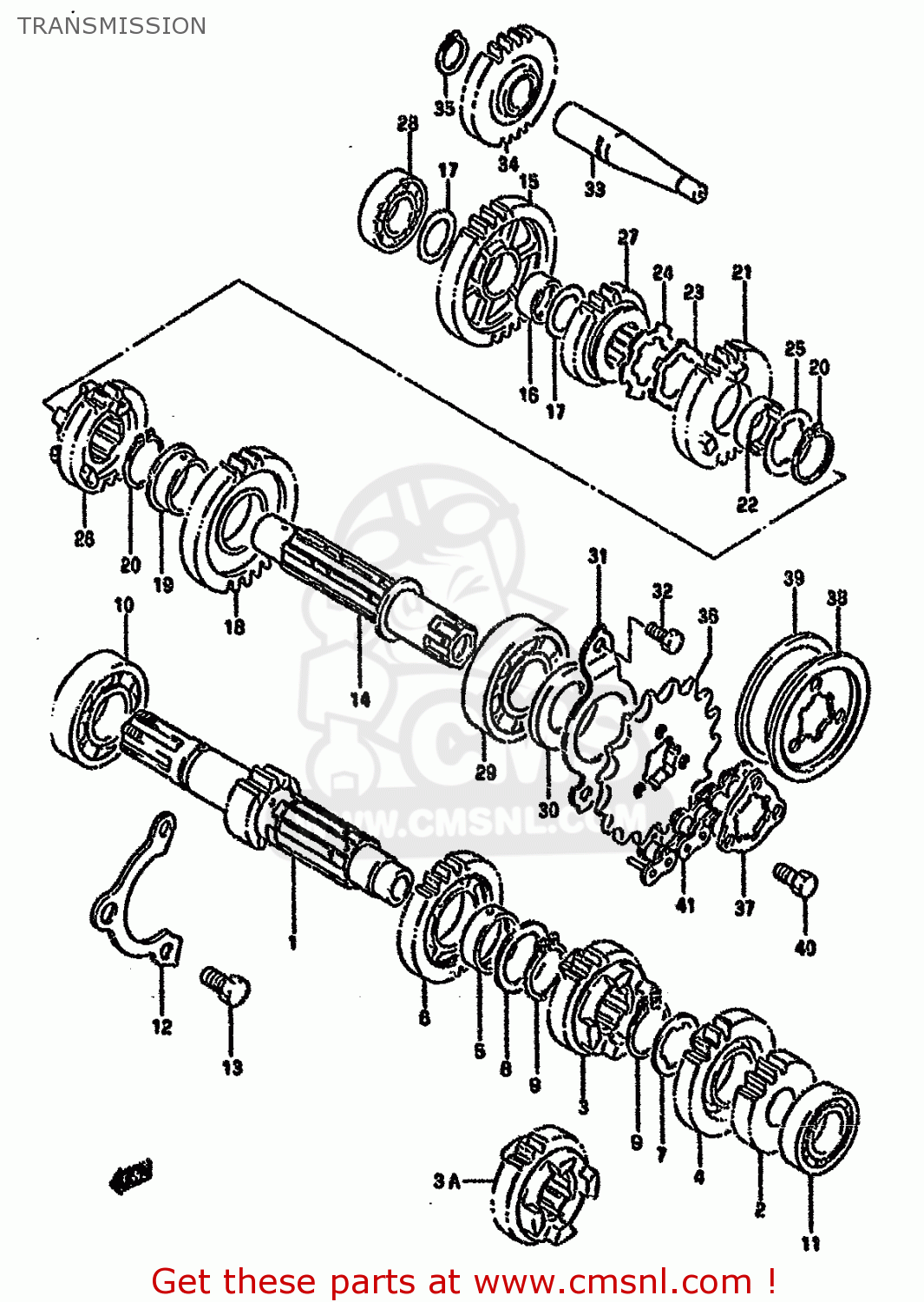

Transmission diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

TRANSMISSION DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
TRANSMISSION DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
TRANSMISSION DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
2412114A00
ref: 1
SHAFT,COUNTER
2412114A00
€ 185.50
2-1
2422114A00
ref: 2-1
MODEL M/N/P/R/S
GEAR,SECOND DRIVE
2422114A00
€ 66.50
2-2
2422114A10
ref: 2-2
MODEL T
GEAR,2ND DRIVE
2422114A10
€ 66.50
3
2423112D02
ref: 3
MODEL M/N/P/R/S
GEAR,3RD DRIVE
2423112D02
€ 146.50
3A
2423112D20
ref: 3A
MODEL T
GEAR,THIRD DRIVE
2423112D20
€ 73.00
4
2424114A00
ref: 4
GEAR,FOURTH DRIVE
€ 69.00
5
0930025023
ref: 5
BUSHING 25X29X10
€ 9.50
6-1
2425114A00
ref: 6-1
MODEL M/N/P/R/S
GEAR,5TH DRIVE
2425114A00
€ 105.00
6-2
2425114A10
ref: 6-2
MODEL T
GEAR,5TH DRIVE
2425114A10
€ 69.00
7
0916725012
ref: 7
WASHER,LOCK
0916725012
€ 3.50
8
0821125341
ref: 8
WASHER
0821125341
€ 3.50
9
0938025003
ref: 9
RING,SNAP
0938025003
€ 3.00
10
0926222028
ref: 10
-09262-22014
BEARING(22X56X16)
0926222028
€ 59.50
11
0926217018
ref: 11
BEARING
0926217018
€ 25.00
12
2474114A00
ref: 12
RETAINER,CNTR SHAFT BEARING
2474114A00
€ 5.00
13
0150008163
ref: 13
BOLT
0150008163
€ 2.00
14
2413114A00
ref: 14
SHAFT,DRIVE
€ 121.00
15
2431114A01
ref: 15
GEAR,1ST DRIVEN
2431114A01
€ 67.50
16
0930020032
ref: 16
BUSH(20X24X13)
0930020032
€ 10.00
17
0821120301
ref: 17
WASHER
0821120301
€ 3.00
18-1
2432114A00
ref: 18-1
MODEL M/N/P/R/S
GEAR,2ND DRIVEN
2432114A00
€ 118.00
18-2
2432114A10
ref: 18-2
MODEL T
GEAR,2ND DRIVEN
2432114A10
€ 69.00
19
0930125002
ref: 19
BUSH
0930125002
€ 10.50
20
0938025003
ref: 20
RING,SNAP
0938025003
€ 3.00
21-1
2433114A05
ref: 21-1
MODEL M/N/P/R/S
GEAR,3RD DRIVEN
2433114A05
€ 329.50
21-2
2433114A20
ref: 21-2
MODEL T
GEAR,3RD DRIVEN
2433114A20
€ 72.50
22
2433224500
ref: 22
BUSHING
2433224500
€ 9.50
23
0916925001
ref: 23
WASHER
0916925001
€ 2.00
24
0916725013
ref: 24
WASHER,LOCK
0916725013
€ 2.50
25
0916725016
ref: 25
WASHER,LOCK
0916725016
€ 3.00
26
2434114A01
ref: 26
GEAR,FOURTH DRIVEN
€ 67.00
27
2435114A00
ref: 27
GEAR,FIFTH DRIVEN
€ 68.50
28
0926220059
ref: 28
BEARING(20X42X12)
0926220059
€ 14.50
29
0926225066
ref: 29
BEARING(25X62X17)
0926225066
€ 44.50
30
0928325076
ref: 30
SEAL,OIL(25X45X5)
0928325076
€ 9.00
31
2475114A01
ref: 31
RETAINER,DRIVE SHAFT OIL SEAL
2475114A01
€ 7.50
32-1
0110706126
ref: 32-1
MODEL M/N/P
BOLT
€ 2.00
32-2
0150006123
ref: 32-2
MODEL R/S/T
BOLT
0150006123
€ 2.00
33
2622314A01
ref: 33
SHAFT,KICK STARTER IDLE
2622314A01
€ 16.50
34
2626037400
ref: 34
GEAR,KICK STARTER IDLE
2626037400
€ 36.00
35
0938017001
ref: 35
CIRCLIP
0938017001
€ 2.00
36
2751114A01
ref: 36
SPROCKET,ENGINE(NT:16)
2751114A01
€ 30.00
37
2751212D00
ref: 37
MODEL M/N/P:E15,E17,
PLATE,ENGINE SPROCKET
2751212D00
€ 9.50
38-1
2751212D10
ref: 38-1
MODEL M/N/P
PLATE,ENGINE SPROCKET
2751212D10
€ 9.50
38-2
2751214A11
ref: 38-2
MODEL R/S/T
PLATE,ENGINE SPROCKET
2751214A11
€ 9.50
39
2751714A00
ref: 39
DAMPER,ENGIN SPROCKET
2751714A00
€ 14.00
40-1
0911106062
ref: 40-1
BLACK
BOLT
0911106062
€ 6.00
40-2
0911106039
ref: 40-2
YELLOW
BOLT(6X13)
0911106039
€ 6.00
41
2760014A10114
ref: 41
-27600-13A60-114
CHAIN(DID520V,114L)
