REAR CUSHION LEVER

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

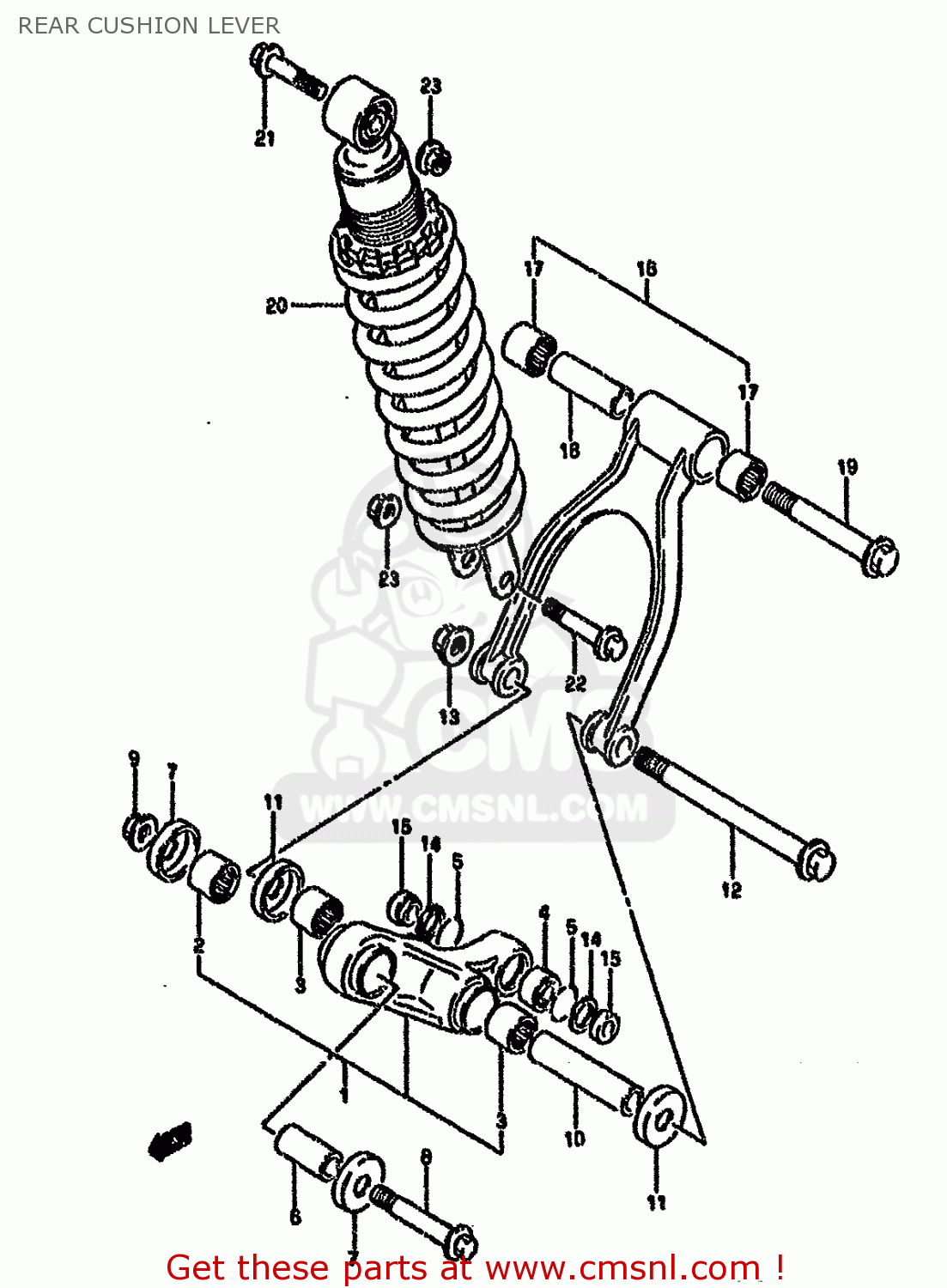

Rear cushion lever diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR CUSHION LEVER DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR CUSHION LEVER DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR CUSHION LEVER DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
6260012870
ref: 1-1
MODEL M/N/P
LEVER SET,REAR CUSHION
€ 219.00
1-2
6260012871
ref: 1-2
MODEL R/S/T
LEVER SET,REAR CUSHION
€ 219.00
2
0926320073
ref: 2
BEARING(20X27X30)
0926320073
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
6217500B00
ref: 4
-62175-27C00
BEARING,RR CUSHION LEVER
6217500B00
€ 66.00
5
6265734A01
ref: 5
RING,STOPPER
6265734A01
€ 1.50
6
6231744B00
ref: 6
SPACER,RR CUSHION LEVER FR
6231744B00
€ 14.00
7
6262408D00
ref: 7
SEAL,RR CUSHION LEVER FR DUST
6262408D00
€ 13.50
8
6265800B20
ref: 8
BOLT,RR CUSHION LEVER FR
6265800B20
€ 8.50
9
0831931128
ref: 9
NUT 12MM
0831931128
€ 4.00
10
0918014013
ref: 10
SPACER (14X20X78)
0918014013
€ 20.00
11
6262408D10
ref: 11
SEAL,RR CUSHION LEVER CTR DUST
6262408D10
€ 19.50
12
6262244B00
ref: 12
BOLT,RR CUSHION ROD LWR
6262244B00
€ 17.00
13
0831931148
ref: 13
NUT
0831931148
€ 9.00
14
6222614520
ref: 14
SEAL,DUST RR SHOCK ABSORBER
6222614520
€ 12.50
15
6268414520
ref: 15
COLLAR
6268414520
€ 7.00
16
6260044821
ref: 16
ROD SET,REAR CUSHION,LEFT
6260044821
€ 211.50
17
0926320071
ref: 17
BEARING(20X27X23.5)
0926320071
€ 21.50
18
0918014015
ref: 18
SPACER (14X20X63)
0918014015
€ 14.50
19
6262144B00
ref: 19
BOLT,RR CUSHION ROD UPR
6262144B00
€ 14.00
20-1
6210012D100NF
ref: 20-1
MODEL M FOR 0JW
ABSORBER ASSY,REAR SHOCK (BLUE)
€ 687.50
20-2
6210012D1028W
ref: 20-2
MODEL M/N FOR 12F,22
ABSORBER ASSY,REAR SHOCK (WHITE)
€ 511.50
20-3
6210012D30
ref: 20-3
MODEL P/R/S/T
ABSORBER ASSY,REAR SHOCK (BLACK)
6210012D30
€ 687.00
21-1
0910310064
ref: 21-1
MODEL M/N/P
BOLT(10X50)
0910310064
€ 4.50
21-2
0910310213
ref: 21-2
MODEL R/S/T
BOLT(10X52)
0910310213
€ 4.00
22
0910310213
ref: 22
BOLT(10X52)
0910310213
€ 4.00
23
0915910058
ref: 23
NUT
0915910058
€ 4.00
