STARTING MOTOR

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

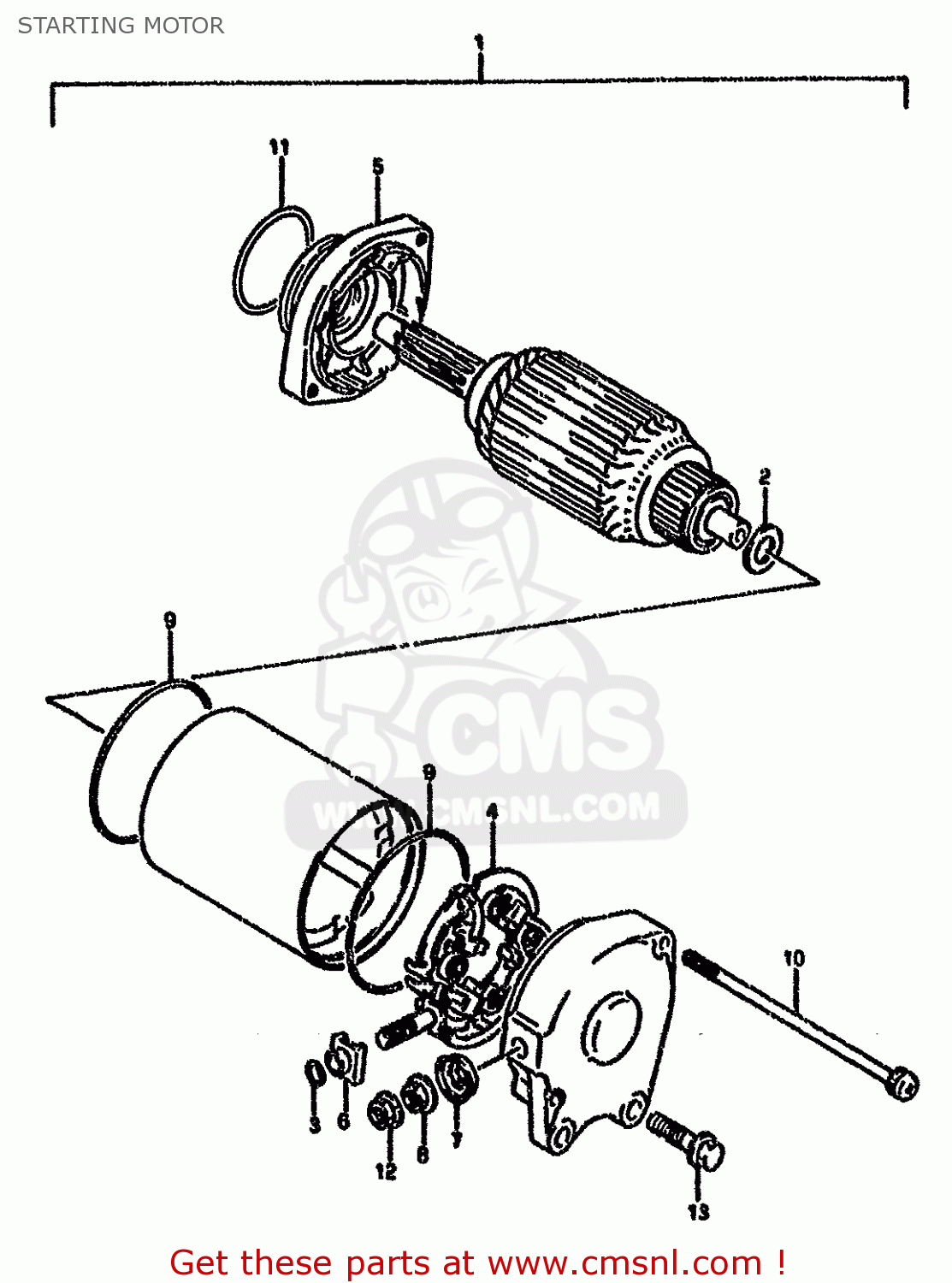

Starting motor diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

3110012D00
ref: 1-1
MODEL M/N/P

MOTOR ASSY,STARTING (SILVER)

€ 600.50

1-2

3110012D01
ref: 1-2
MODEL R/S/T

MOTOR ASSEMBLY,STARTING

€ 600.50

3117043400
ref: 2
-31361-47010

SHIM SET,STARTING MOTOR

€ 3.50

3114338300
ref: 3

O RING

€ 3.50

3113245C00
ref: 4

HOLDER SET,BRUSH

€ 46.00

3115044B00
ref: 5

BRACKET SET

€ 98.50

3117238300
ref: 6

BUSHING

€ 4.00

3117388C00
ref: 7

BUSHING

€ 6.00

0831000067
ref: 8

NUT

€ 2.50

3126444110
ref: 9

O RING

€ 8.00

3128131D00
ref: 10

BOLT

€ 5.00

3115624B00
ref: 11

O-RING (D:2.0)

€ 9.50

0836135066
ref: 12

NUT

€ 2.00

13-1

0154706257
ref: 13-1
MODEL M/N/P

BOLT

€ 2.50

13-2

0154706253
ref: 13-2
MODEL R/S/T

SCREW

€ 2.50
