REAR COMBINATION LAMP (MODEL T)

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

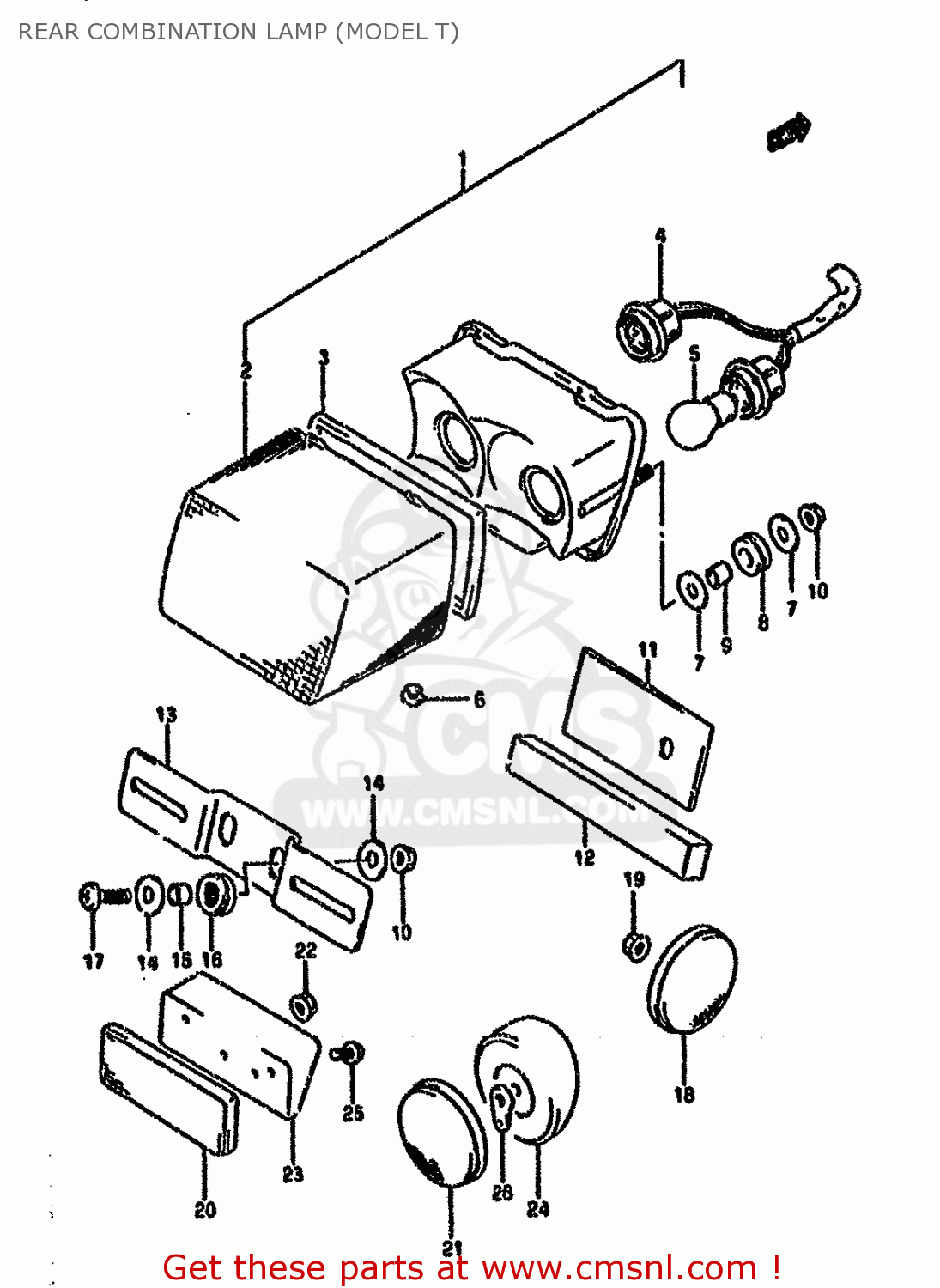

Rear combination lamp (model t) diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR COMBINATION LAMP (MODEL T) DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR COMBINATION LAMP (MODEL T) DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR COMBINATION LAMP (MODEL T) DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
3571012D00
ref: 1
LAMP ASSY,RR COMBINATION
3571012D00
€ 134.50
2
3571201D00
ref: 2
LENS
3571201D00
€ 45.00
3
3571301D00
ref: 3
GASKET (NAS)
3571301D00
€ 7.00
4
3571812D00
ref: 4
SOCKET
3571812D00
€ 40.00
5
0947112083
ref: 5
BULB(12V21/5W)
0947112083
€ 6.00
6
3576512D01
ref: 6
CUSHION
€ 1.50
7
0916006077
ref: 7
WASHER(6.5X20X1.2)
0916006077
€ 2.00
8
0932009009
ref: 8
CUSHION
0932009009
€ 5.00
9
0918006225
ref: 9
SPACER
€ 4.50
10
0831610063
ref: 10
NUT
0831610063
€ 2.50
11
3573312D00
ref: 11
CUSHION,UPPER
€ 3.50
12
3573312D10
ref: 12
CUSHION,LOWER
€ 4.00
13
3592712D20
ref: 13
BRACKET,LICENSE PLATE
3592712D20
€ 12.50
14
0916006077
ref: 14
WASHER(6.5X20X1.2)
0916006077
€ 2.00
15
0918006152
ref: 15
SPACER
0918006152
€ 3.00
16
0932106030
ref: 16
CUSHION
0932106030
€ 3.00
17
0214206253
ref: 17
SCREW
0214206253
€ 1.50
18
3595014A00
ref: 18
E18
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
19
0831610053
ref: 19
E18
NUT
0831610053
€ 2.50
20
3597000A21
ref: 20
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 22.00
21
3597012D00
ref: 21
E18,E22
REFLECTOR ASSY,RR
3597012D00
€ 13.00
22
0831620053
ref: 22
NUT
0831620053
€ 2.00
23
3597712C00
ref: 23
SPACER,RR RR
3597712C00
€ 8.00
24
3597712D00
ref: 24
E18,E22
SPACER, REAR REFLECTOR
3597712D00
€ 13.00
25
0354104123
ref: 25
SCREW
0354104123
€ 1.50
26
3599712D00
ref: 26
E18,E22
WASHER,RR REFLECTOR
3599712D00
€ 2.50
22-2
0831620053
ref: 22-2
MODEL S
NUT
0831620053
€ 2.00
23
3597712C00
ref: 23
SPACER,RR RR
3597712C00
€ 8.00
24
3597712D00
ref: 24
E15,E16,E17,E18,E22,
SPACER, REAR REFLECTOR
3597712D00
€ 13.00
25-1
0354104125
ref: 25-1
MODEL M/N/P
SCREW
0354104125
€ 1.50
25-2
0354104123
ref: 25-2
MODEL R/S
SCREW
0354104123
€ 1.50
26
3599712D00
ref: 26
E15,E16,E17,E18,E22,
WASHER,RR REFLECTOR
3599712D00
€ 2.50
