REAR FENDER (MODEL T)

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

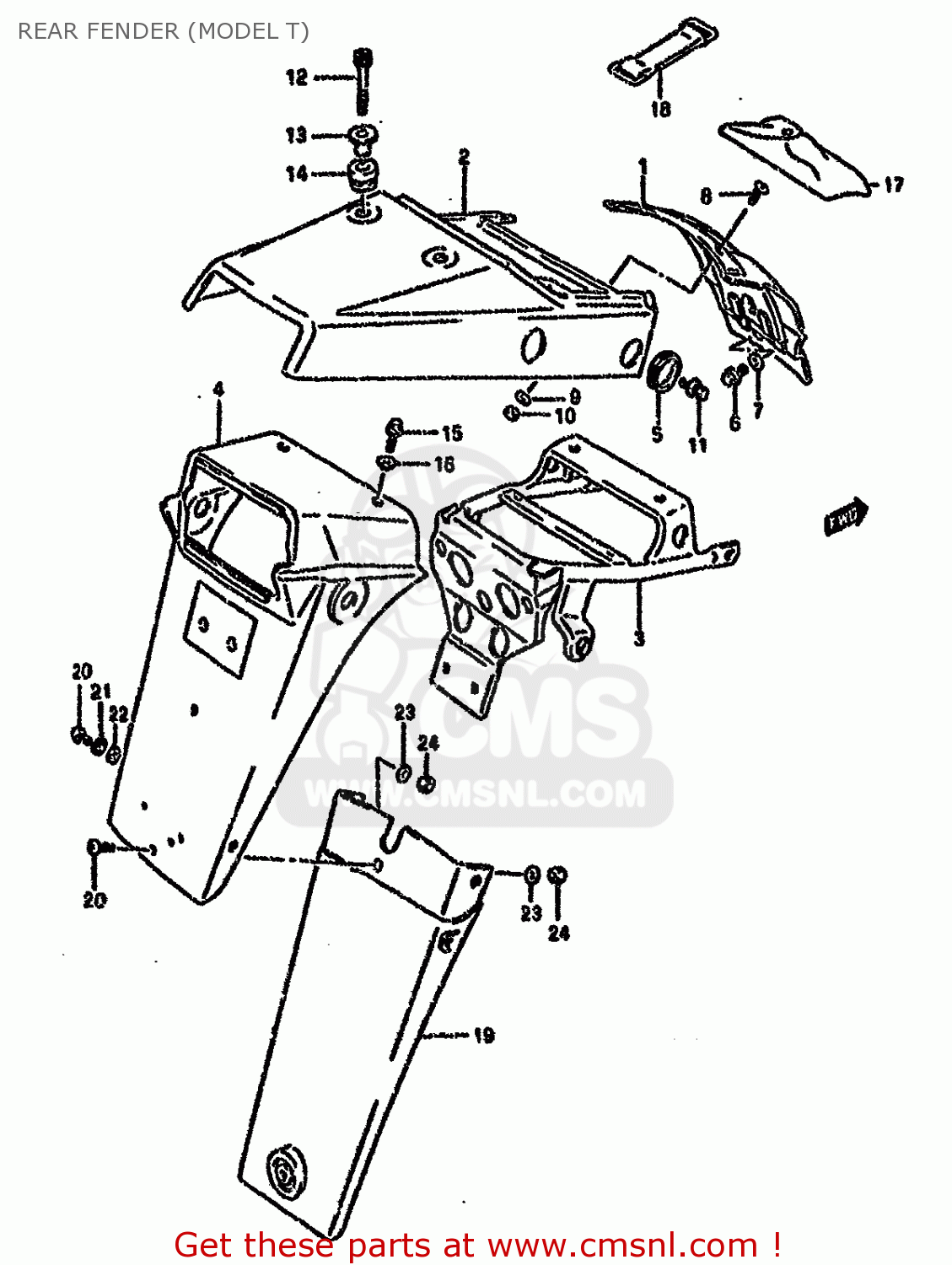

Rear fender (model t) diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR FENDER (MODEL T) DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR FENDER (MODEL T) DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR FENDER (MODEL T) DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
6311212D10
ref: 1
BODY,REAR FENDER FRONT
€ 30.50
2-1
6311012D2033J
ref: 2-1
BODY,RR FENDER RR
€ 158.00
2-2
6311012D3033J
ref: 2-2
E22
BODY,RR FENDER RR
€ 171.50
3
6312012D00
ref: 3
REINFORCEMENT,FENDER
6312012D00
€ 98.00
4-1
6331112D00
ref: 4-1
EXTENSION,RR FENDER
6331112D00
€ 34.00
4-2
6331112D20
ref: 4-2
E18,E22
EXTENSION,REAR FENDER
€ 34.50
5
0930830006
ref: 5
GROMMET
€ 3.50
6
0157006123
ref: 6
BOLT
0157006123
€ 1.50
7
0916906026
ref: 7
WASHER
0916906026
€ 2.00
8
0913605035
ref: 8
SCREW (M5X16)
€ 1.50
9
0916005037
ref: 9
WASHER(5.5X16X1.2)
0916005037
€ 1.50
10
0831921055
ref: 10
NUT 8MM
0831921055
€ 1.50
11
0158006163
ref: 11
BOLT
0158006163
€ 2.50
12
0713008507
ref: 12
BOLT
0713008507
€ 3.00
13
0918008157
ref: 13
SPACER(8.6X12X18.5)
0918008157
€ 5.50
14
0932012003
ref: 14
CUSHION
0932012003
€ 6.00
15
0155006163
ref: 15
BOLT
0155006163
€ 2.50
16
0916906016
ref: 16
WASHER
0916906016
€ 1.50
17
0980021024
ref: 17
TOOL ASSY
0980021024
€ 55.00
18
0946200017
ref: 18
BAND
0946200017
€ 13.50
19-1
6333144B21
ref: 19-1
E22
MUDGUARD,RR FENDER
6333144B21
€ 22.00
19-2
6333144B31
ref: 19-2
E18
MUDGUARD,RR FENDER
6333144B31
€ 29.00
20
0214206163
ref: 20
E18,E22
SCREW
0214206163
€ 2.50
21
0916006066
ref: 21
E18,E22
WASHER(6.5X20X1.6)
0916006066
€ 2.00
22
0916906055
ref: 22
E18,E22
WASHER
0916906055
€ 2.00
23
0916006079
ref: 23
E18,E22
WASHER(6.5X16X1.2)
0916006079
€ 2.00
24
0914006027
ref: 24
E18,E22
NUT
0914006027
€ 1.50
23
0914006027
ref: 23
E18,E22
NUT
0914006027
€ 1.50
14
0932012003
ref: 14
CUSHION
0932012003
€ 6.00
15-1
0151706164
ref: 15-1
MODEL M/N/P
BOLT
€ 2.50
15-2
0155006163
ref: 15-2
MODEL R
BOLT
0155006163
€ 2.50
16
0916906016
ref: 16
WASHER
0916906016
€ 1.50
17-1
0980020027
ref: 17-1
MODEL M/N/P-09800-21
TOOL SET
€ 55.00
17-2
0980021024
ref: 17-2
MODEL R
TOOL ASSY
0980021024
€ 55.00
18-1
6333144B01
ref: 18-1
E15,E16,E17,E18,E25-
MUD GUARD,REAR FENDER
€ 29.00
18-2
6333144B21
ref: 18-2
E22
MUDGUARD,RR FENDER
6333144B21
€ 22.00
18-3
6333144B31
ref: 18-3
E39
MUDGUARD,RR FENDER
6333144B31
€ 29.00
19
0214206164
ref: 19
E15,E16,E17,E18,E22,
SCREW
0214206164
€ 2.50
20
0916006066
ref: 20
E15,E16,E17,E18,E22,
WASHER(6.5X20X1.6)
0916006066
€ 2.00
21
0916906055
ref: 21
E15,E16,E17,E18,E22,
WASHER
0916906055
€ 2.00
22
0832101063
ref: 22
E15,E16,E17,E18,E22,
LOCK WASHER
0832101063
€ 2.00
23
0916006019
ref: 23
E15,E16,E17,E18,E22,
WASHER(6.5X16X1.2)
0916006019
€ 1.50
24
0914006027
ref: 24
E15,E16,E17,E18,E22,
NUT
0914006027
€ 1.50
