CYLINDER HEAD

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

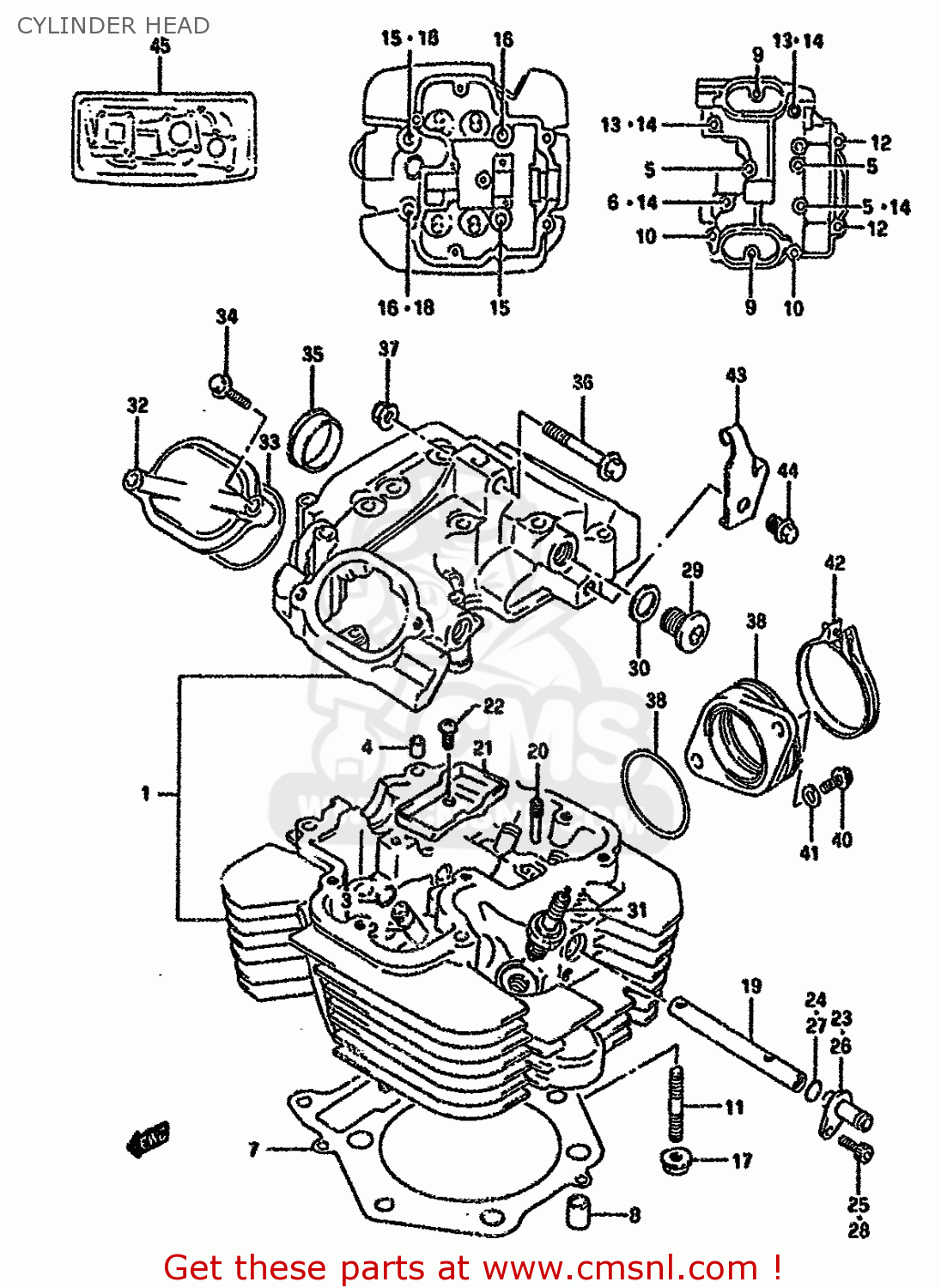

Cylinder head diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CYLINDER HEAD DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CYLINDER HEAD DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CYLINDER HEAD DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
1110012D40
ref: 1-1
MODEL M/N/P
HEAD,CYLINDER
€ 1,210.00
1-2
1110012D80
ref: 1-2
MODEL R/S/T
HEAD ASSEMBLY,CYLINDER
€ 960.50
1-3
1110012D50
ref: 1-3
MODEL M/N/P E18,E39
HEAD ASSY,CYLINDER
€ 0.00
1-4
1110012D90
ref: 1-4
MODEL R/S/T E18
HEAD ASSY, CYLINDER
€ 960.50
2
1111537470
ref: 2
GUIDE,VALVE
1111537470
€ 20.00
3
0938110003
ref: 3
RING,SNAP
0938110003
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 2.00
5
0155006603
ref: 5
BOLT
0155006603
€ 2.50
6
0910306040
ref: 6
BOLT 6X55
0910306040
€ 7.00
7
1114112D00
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114112D00
€ 44.50
8
0421113189
ref: 8
PIN
0421113189
€ 2.50
9-1
0155006257
ref: 9-1
MODEL M/N/P
BOLT
0155006257
€ 2.50
9-2
0155006253
ref: 9-2
MODEL R/S/T
BOLT
0155006253
€ 2.50
10
0155006403
ref: 10
BOLT
0155006403
€ 2.00
11
0910808220
ref: 11
-09108-08161
BOLT,STUD
0910808220
€ 3.50
12
0910306085
ref: 12
BOLT(6X130)
0910306085
€ 4.50
13
0155006603
ref: 13
BOLT
0155006603
€ 2.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
15
0910310179
ref: 15
BOLT(10X190)
0910310179
€ 12.50
16
0910310181
ref: 16
BOLT(10X215)
0910310181
€ 17.50
17-1
0831616085
ref: 17-1
MODEL M/N/P
NUT 8MM
0831616085
€ 3.00
17-2
0831610083
ref: 17-2
MODEL R/S/T
NUT
0831610083
€ 3.00
18
0916810017
ref: 18
GASKET(10.5X22X2) (NAS)
0916810017
€ 3.50
19
1113112D00
ref: 19
PIPE,CYLINDER HEAD OIL
1113112D00
€ 12.00
20
0913406012
ref: 20
SCREW (L:19.5)
0913406012
€ 3.00
21
1113512D00
ref: 21
PLATE,CYLINDER HEAD CHAMBER
1113512D00
€ 3.50
22
0211206103
ref: 22
SCREW
0211206103
€ 1.50
23
1119012D00
ref: 23
~F.NO.SP43A-102911~F
UNION,CYLINDER HEAD OIL
1119012D00
€ 16.50
24
0928010009
ref: 24
~F.NO.SP43A-102911~F
O RING(D:1.3,ID:9.8)
0928010009
€ 1.50
25
0711006105
ref: 25
~F.NO.SP43A-102911~F
BOLT
€ 2.50
26
1119012D01
ref: 26
F.NO.SP43A-102912~F.
UNION,CYLINDER HEAD OIL
1119012D01
€ 16.50
27
1114306B00
ref: 27
F.NO.SP43A-102912~F.
O RING,HEAD GASKET
1114306B00
€ 8.00
28
0713006163
ref: 28
F.NO.SP43A-102912~F.
BOLT,OIL FILLE
0713006163
€ 3.00
29
0924814010
ref: 29
PLUG
0924814010
€ 5.00
30-1
0916814004
ref: 30-1
MODEL M/N/P
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
30-2
0916814002
ref: 30-2
MODEL R/S/T
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
31-1
0948200330
ref: 31-1
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
31-2
0948200331111
ref: 31-2
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
32
1117512D10
ref: 32
CAP,INSPECTION
1117512D10
€ 16.00
33
0928060004
ref: 33
O RING(D:2.4,ID:23)
0928060004
€ 4.50
34
0155006203
ref: 34
BOLT
0155006203
€ 2.50
35
0924130004
ref: 35
PLUG(OD:30)
0924130004
€ 6.50
36-1
0910308290
ref: 36-1
MODEL M/N/P
BOLT 8X53
0910308290
€ 3.50
36-2
0910308289
ref: 36-2
MODEL R/S/T
BOLT(8X50)
0910308289
€ 5.00
37
0831931085
ref: 37
NUT
€ 2.50
38
1311012D00
ref: 38
PIPE,INTAKE
1311012D00
€ 32.50
39
0928046002
ref: 39
O RING(D:2.4,ID:45.7)
0928046002
€ 9.50
40-1
0712006205
ref: 40-1
MODEL M/N/P
PLUG ,6X20
0712006205
€ 3.50
40-2
0712006203
ref: 40-2
MODEL R/S/T
BOLT
0712006203
€ 3.50
41-1
0832131064
ref: 41-1
MODEL M/N/P
WASHER
0832131064
€ 2.00
41-2
0832101063
ref: 41-2
MODEL R/S/T
LOCK WASHER
0832101063
€ 2.00
42
0940258208
ref: 42
CLAMP
0940258208
€ 5.50
43
1294412D00
ref: 43
HOLDER,DECOMP CABLE
1294412D00
€ 8.50
44-1
0910308308
ref: 44-1
MODEL M/N/P/R/S
BOLT 8X16
€ 2.50
44-2
0910308283
ref: 44-2
MODEL T
BOLT(8X16)
€ 2.50
45-1
1140112813
ref: 45-1
MODEL M/N/P/R/S
GASKET SET
1140112813
€ 146.50
45-2
1140112820
ref: 45-2
MODEL T
GASKET SET
€ 0.00
