OIL COOLER

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

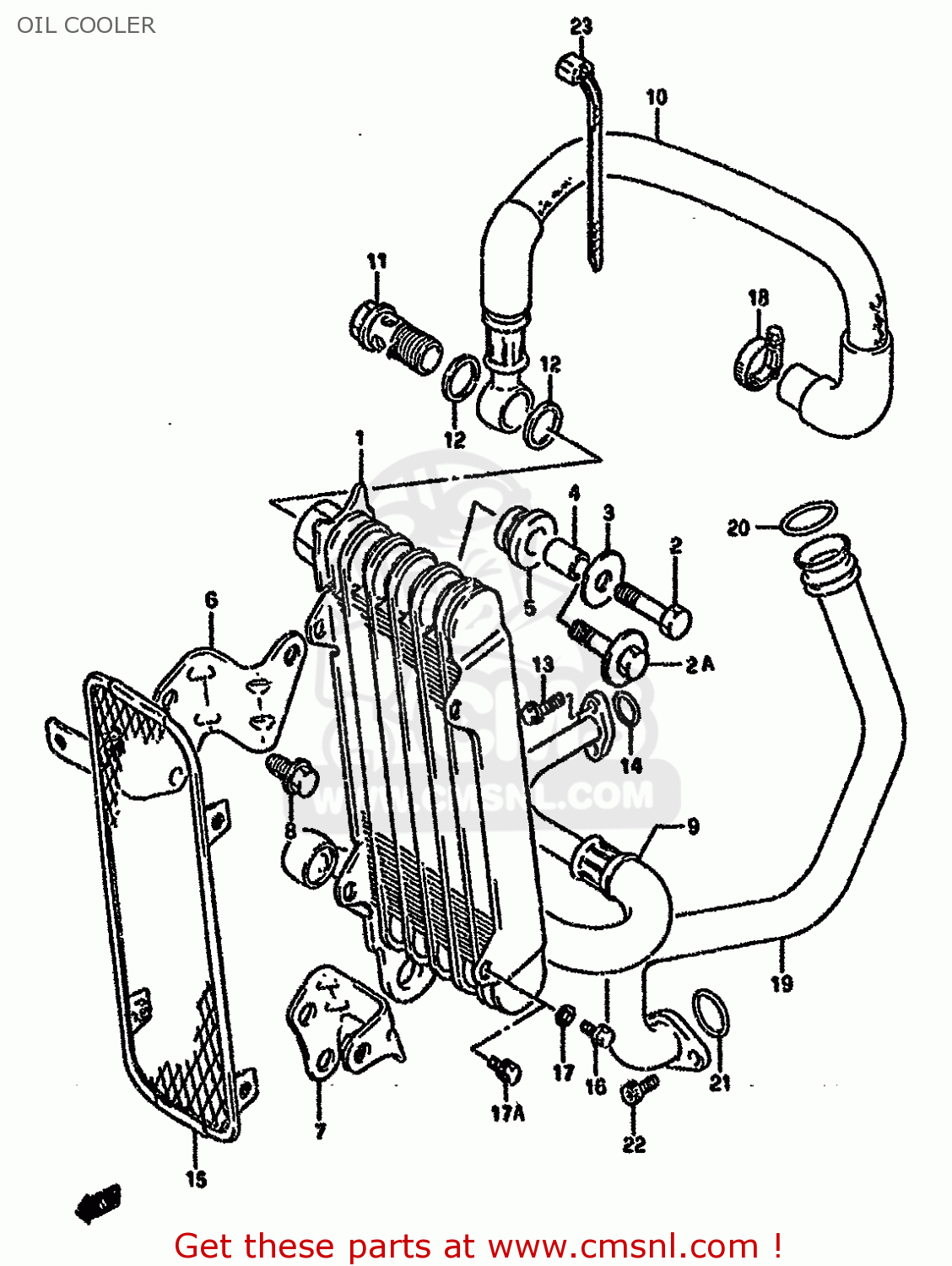

Oil cooler diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

OIL COOLER DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
OIL COOLER DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
OIL COOLER DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
1660012D01
ref: 1
COOLER ASSY,OIL
€ 556.50
2
0910008175
ref: 2
MODEL M
BOLT(8X28)
0910008175
€ 2.50
2A
0911608105
ref: 2A
MODEL N/P/R/S/T
BOLT 8X28
€ 2.50
3
0916008057
ref: 3
MODEL M
WASHER (8.5X20X1.6)
0916008057
€ 2.00
4
0918008032
ref: 4
SPACER (8.2X12X17)
0918008032
€ 5.00
5
1662912D00
ref: 5
CUSHION,OIL COOLER
1662912D00
€ 3.00
6
1662012D10
ref: 6
BRACKET,OIL COOLER UPR
€ 14.50
7-1
1663012D00
ref: 7-1
BRACKET,OIL COOLER LWR
1663012D00
€ 9.00
7-2
1663012D10
ref: 7-2
E18,E39
BRACKET,OIL COOLER LWR
€ 17.50
8-1
0151708125
ref: 8-1
MODEL M/N/P
BOLT
0151708125
€ 3.50
8-2
0155008123
ref: 8-2
MODEL R/S/T
BOLT
0155008123
€ 3.50
9
1646012D01
ref: 9
HOSE,OIL COOLER NO.1
€ 68.00
10
1647012D10
ref: 10
HOSE,OIL COOLER NO.2
1647012D10
€ 49.50
11
0936016002
ref: 11
BOLT UNION
0936016002
€ 12.00
12
0916816003
ref: 12
GASKET(16X22X2) (NAS)
0916816003
€ 2.00
13-1
0154706165
ref: 13-1
MODEL M/N/P
BOLT
0154706165
€ 2.50
13-2
0154706163
ref: 13-2
MODEL R/S/T
BOLT
0154706163
€ 2.50
14
0928012008
ref: 14
O RING(D:2.4,ID:12.3)
0928012008
€ 3.00
15
1665044B00
ref: 15
BUMPER,OIL COOLER
1665044B00
€ 38.50
16-1
0154705105
ref: 16-1
MODEL M/N/P
BOLT
0154705105
€ 2.50
16-2
0154705103
ref: 16-2
MODEL R
BOLT
0154705103
€ 2.50
17-1
0832121055
ref: 17-1
MODEL M/N/P
WASHER,LOCK
0832121055
€ 3.00
17-2
0832101053
ref: 17-2
MODEL R
LOCK,WASHER
€ 3.00
17A-1
0157005103
ref: 17A-1
MODEL S
BOLT
0157005103
€ 2.00
17A-2
0216205103
ref: 17A-2
MODEL T
BOLT
€ 2.00
18
0940217511
ref: 18
CLAMP
0940217511
€ 8.00
19
1116012D01
ref: 19
PIPE COMP,OIL RETURN
€ 44.50
20
0928022016
ref: 20
O RING(D:3.7,ID:21.7)
0928022016
€ 5.50
21
0928024005
ref: 21
O-RING (D:2.4 ID:23.7)
0928024005
€ 5.50
22-1
0713006165
ref: 22-1
MODEL M/N/P
BOLT
€ 3.00
22-2
0713006163
ref: 22-2
MODEL R/S/T
BOLT,OIL FILLE
0713006163
€ 3.00
23-1
0940718402
ref: 23-1
MODEL M/N/P/R/S
CLAMP(L:165)
0940718402
€ 2.50
23-2
0940718403
ref: 23-2
MODEL T
CLAMP L:165
€ 2.50
