STARTER CLUTCH

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

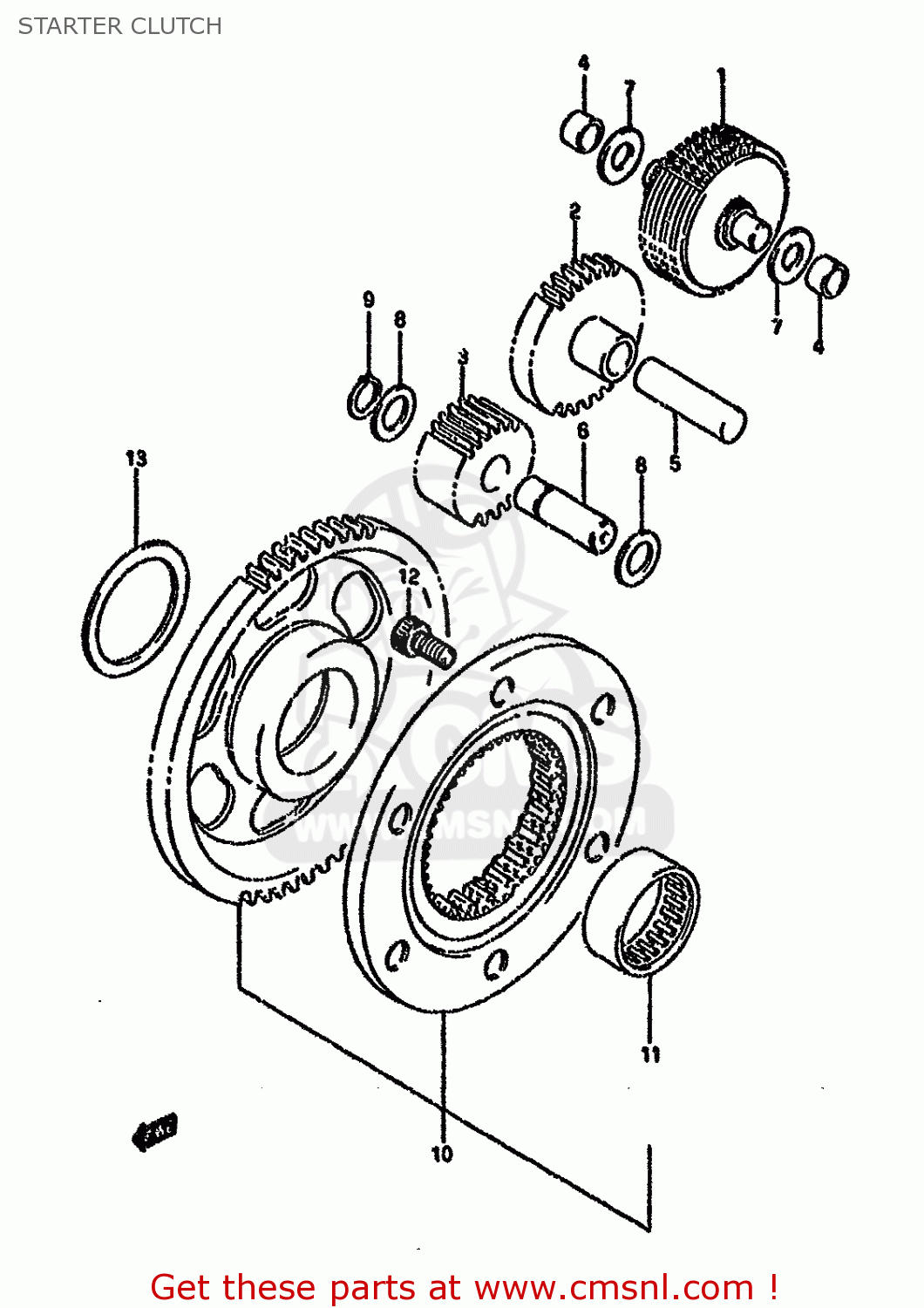

Starter clutch diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1260012D00
ref: 1

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 122.50

1261212D01
ref: 2
NT:27

GEAR,STARTER IDLE NO.2(NT:27)

€ 40.50

1261312D00
ref: 3
NT:18

GEAR,STARTER IDLE NO.3

€ 49.00

1261831D01
ref: 4

BUSH,LIMITER GEAR SHAFT

€ 17.50

0920212002
ref: 5

PIN

€ 7.50

1261512D00
ref: 6

SHAFT,STARTER IDLE GEAR

€ 7.00

0821110221
ref: 7

WASHER

€ 2.50

0822112205
ref: 8

SHIM

€ 1.50

0833131126
ref: 9

CIRCLIP,12 MM

€ 2.00

1260012810
ref: 10

CLUTCH SET,STARTER

€ 210.00

0926331009
ref: 11

BEARING(31X39X17.8)

€ 25.50

12-1

0713008207
ref: 12-1
MODEL M/N/P

BOLT

€ 3.00

12-2

0713008203
ref: 12-2
MODEL R/S/T

BOLT

€ 3.00

0821140521
ref: 13

SHIM

€ 5.50

STARTER CLUTCH

all assemblies
