HANDLE SWITCH (MODEL T)

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

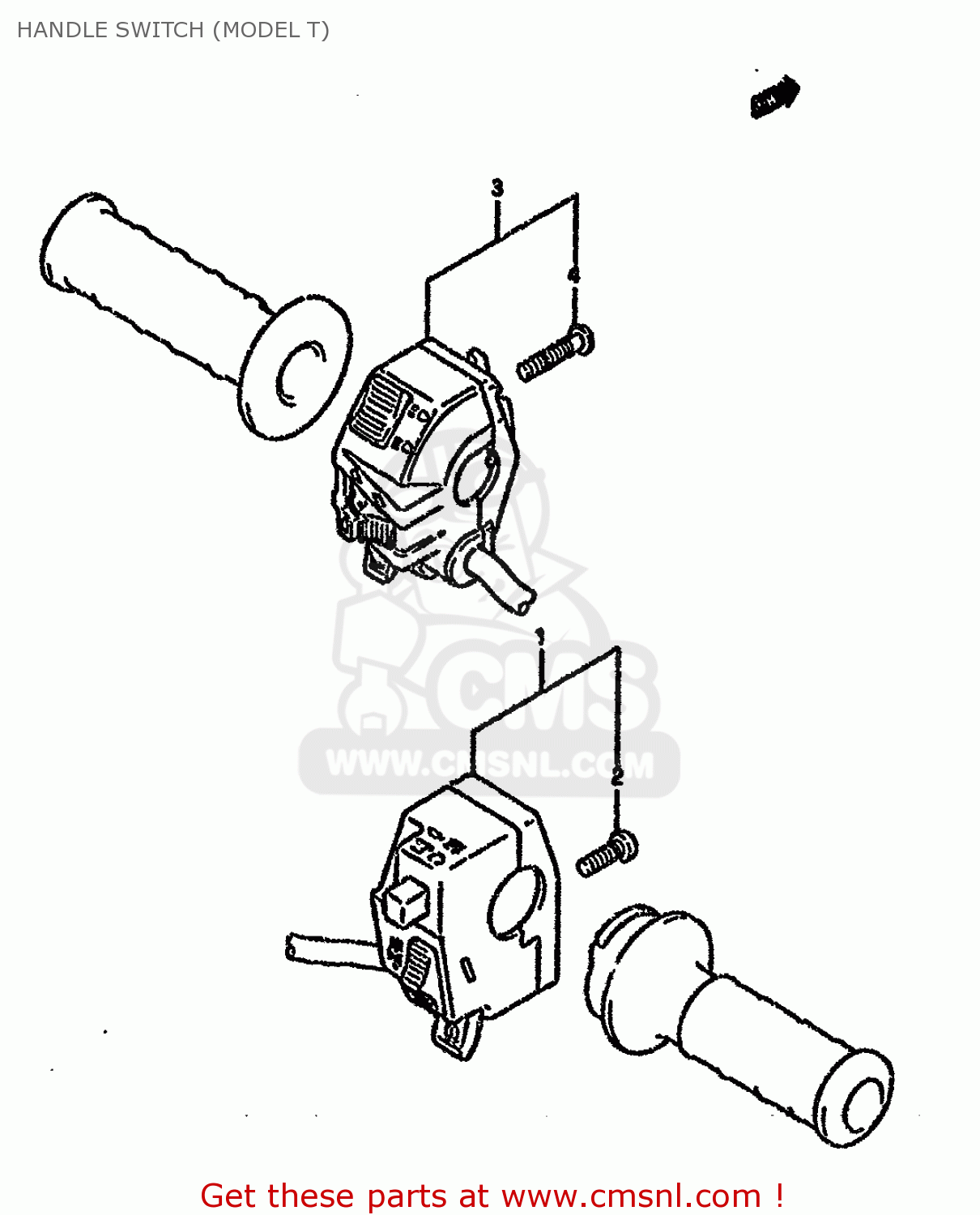

Handle switch (model t) diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

HANDLE SWITCH (MODEL T) DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

HANDLE SWITCH (MODEL T) DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1

3720012D40
ref: 1

SWITCH ASSY,HANDLE,R

€ 108.50

2

0211205253
ref: 2

SCREW

€ 1.50

3

3740012D40
ref: 3

SWITCH ASSY,HANDLE,LH

€ 0.00

4

0211205305
ref: 4

SCREW

€ 1.50

4

0211205305
ref: 4

SCREW

€ 1.50
