MAGNETO

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

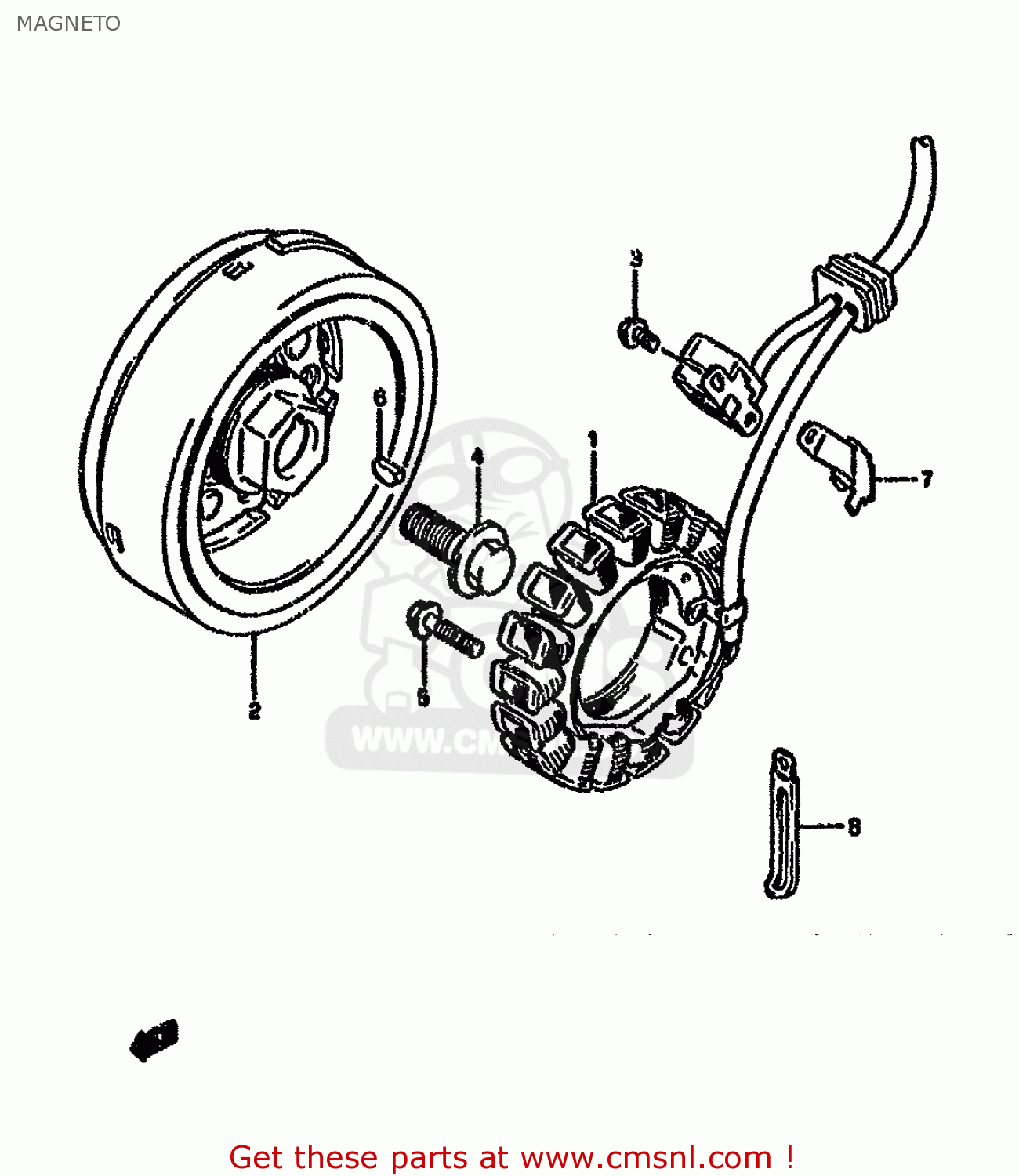

Magneto diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

3210112D10
ref: 1

STARTER ASSY

€ 754.00

3210212D10
ref: 2

ROTOR

€ 866.50

3-1

0154705107
ref: 3-1
MODEL M/N/P

BOLT

€ 1.50

3-2

0154705103
ref: 3-2
MODEL R/S/T

BOLT

€ 2.50

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5-1

0154706307
ref: 5-1
MODEL M/N/P

BOLT

€ 2.50

5-2

0154706303
ref: 5-2
MODEL R

BOLT,G/S SWITC

€ 3.00

5-3

0713006303
ref: 5-3
MODEL S/T

BOLT

€ 3.00

0942005007
ref: 6

KEY

€ 3.00

3237112D20
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8-1

0940406402
ref: 8-1
MODEL M/N/P/R/S

CLAMP

€ 2.50

8-2

0940406429
ref: 8-2
MODEL T

CLAMP(L:45)

€ 2.50
