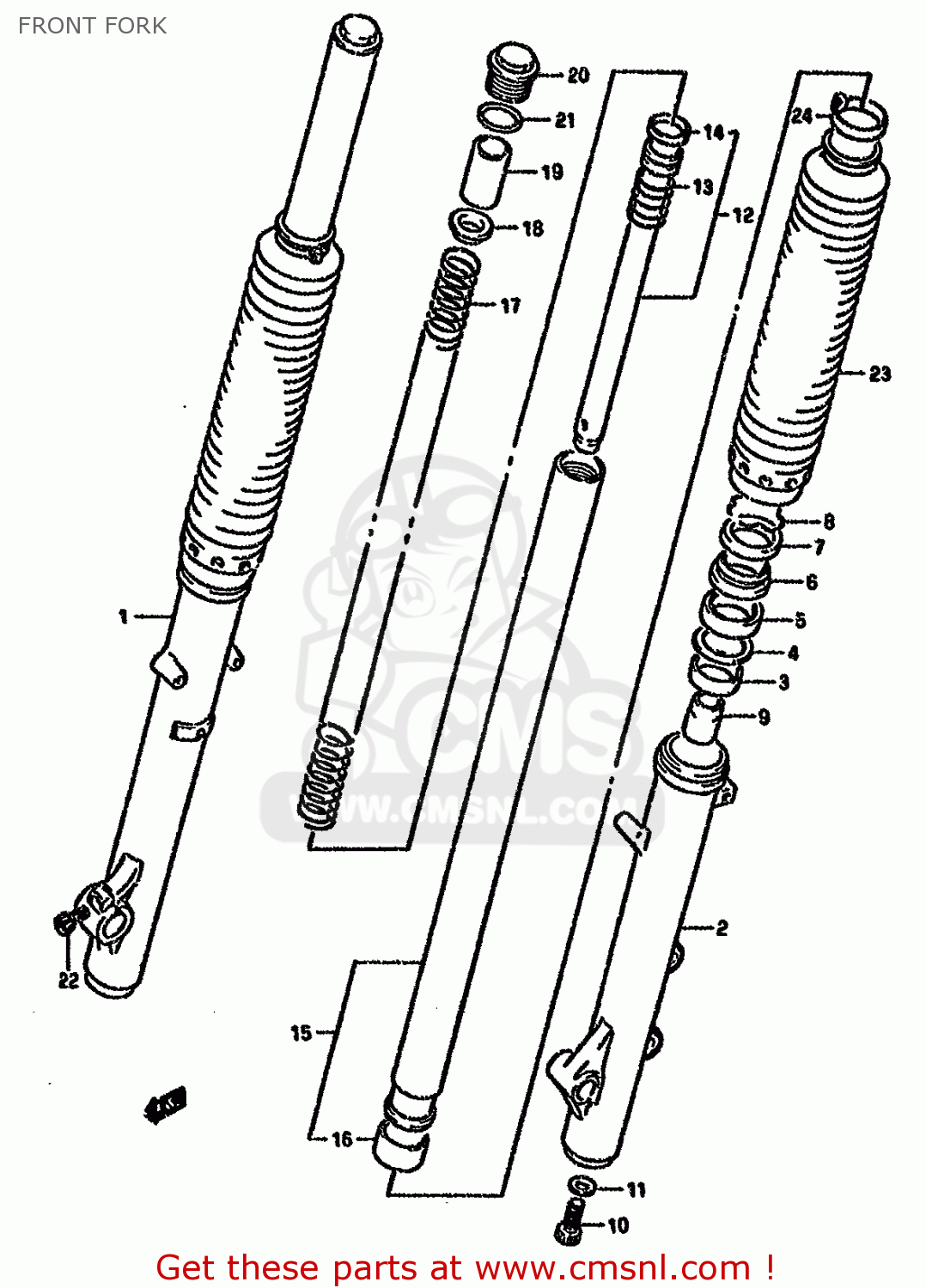

FRONT FORK

ref

part #

description

quantity

0

5110312D10
ref: 0

DAMPER ASSY,FR FORK,R

€ 593.50

0

5110412D10
ref: 0

DAMPER ASSY,LH

€ 483.00

1

5113012D10
ref: 1

TUBE,OUTER,R

€ 342.00

2

5114012D10
ref: 2

TUBE,OUTER,L

€ 342.00

3

5116728C00
ref: 3

METAL,SLIDE

€ 20.50

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5

5115344B00
ref: 5

SEAL,OIL

€ 17.50

6

5117344B00
ref: 6

SEAL,DUST

€ 13.00

7

5115844B00
ref: 7

WASHER

€ 6.00

8

5115649440
ref: 8

RING,OIL SEAL STOPPER

€ 5.50

9

5119512D10
ref: 9

PIECE,OIL LOCK

€ 9.00

10

5114714200
ref: 10

BOLT(14X25)

€ 5.50

11

5114814200
ref: 11

GASKET (NAS)

€ 2.00

12

5119012D10
ref: 12

CYLINDER

€ 33.00

13

5117712D00
ref: 13

SPRING,REBOUND

€ 6.00

14

5119624A00
ref: 14

RING,FR FORK PISTON

€ 6.50

15

5111012D10
ref: 15

TUBE,INNER

€ 290.50

16

5112128C00
ref: 16

PISTON

€ 23.00

17

5117112D10
ref: 17

SPRING

€ 21.00

18

5117212D00
ref: 18

GUIDE,SPRING

€ 5.00

19

5117612D10
ref: 19

SPACER,SPRING

€ 11.50

20

5135110D00
ref: 20

CAP,FORK

€ 50.00

21

0928032001
ref: 21
-51117-06C10

O RING(D:3.5,ID:31.7)

€ 2.00

22

5113844B00
ref: 22

BOLT,SOCKET HEAD(8X22)

€ 4.00

23-1

5157112D0028V
ref: 23-1
MODEL M

BOOT

€ 66.50

23-2

5157112D0038K
ref: 23-2
MODEL M

BOOT(BLUE)

€ 73.50

23-3

5157112D001LU
ref: 23-3
MODEL N/P/R/S/T

BOOT

€ 65.50

24

5157512D00
ref: 24

BAND,BOOT

€ 7.50
