CRANKCASE

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

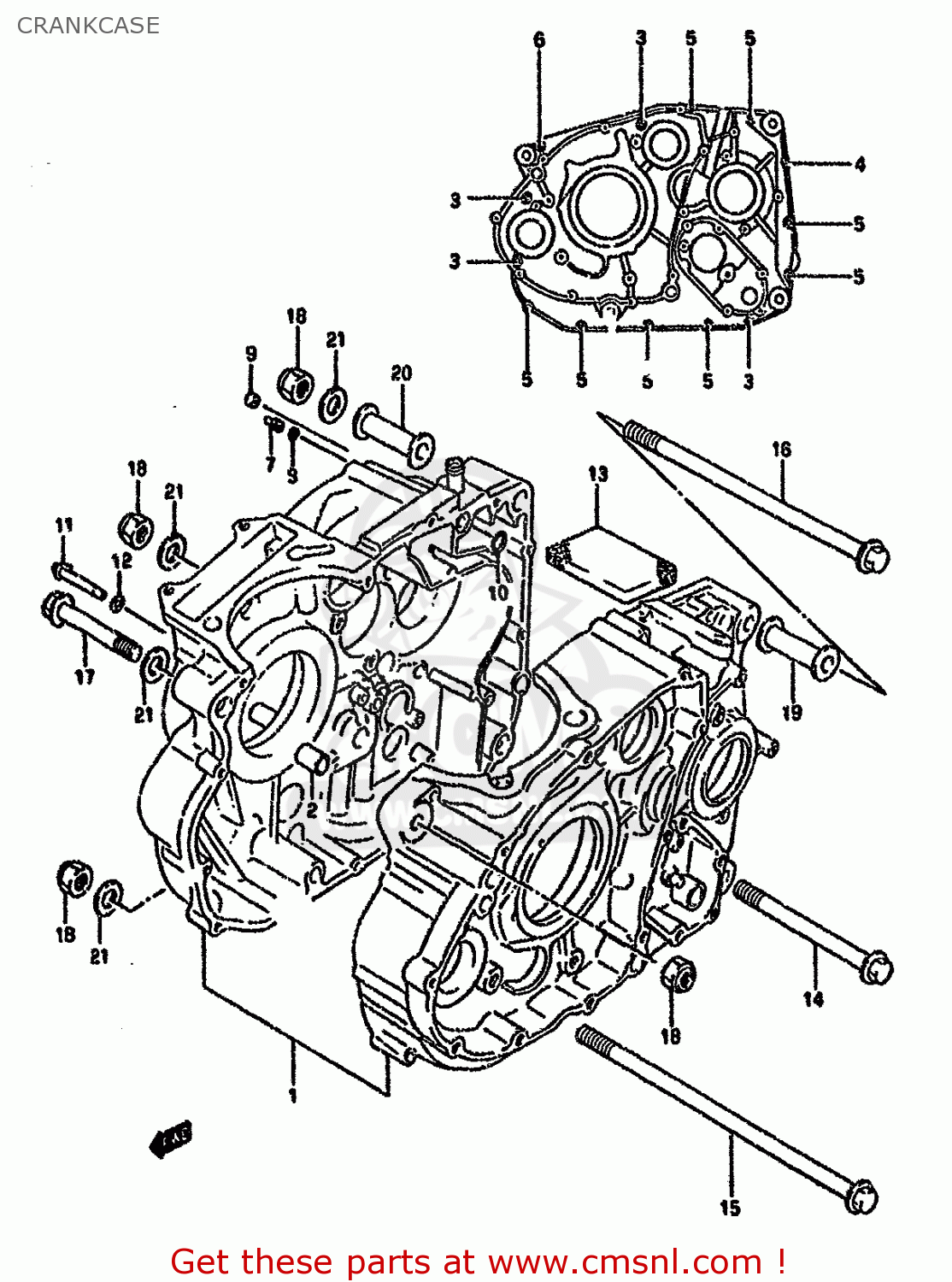

Crankcase diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CRANKCASE DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CRANKCASE DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CRANKCASE DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
1130112840
ref: 1-1
MODEL M/N/P
CRANKCASE SET
1130112840
€ 768.00
1-2
1130112850
ref: 1-2
MODEL R/S/T
CRANKCASE SET
1130112850
€ 1,043.00
2
0421113189
ref: 2
-09206-13001
PIN
0421113189
€ 2.50
3
0154706603
ref: 3
BOLT
€ 3.50
4
0154706407
ref: 4
BOLT
0154706407
€ 2.50
5-1
0154706404
ref: 5-1
MODEL M/N/P
BOLT 6X40
€ 3.00
5-2
0154706403
ref: 5-2
MODEL R/S/T
BOLT
0154706403
€ 3.00
6-1
0154706304
ref: 6-1
MODEL M/N/P
BOLT 6X30
0154706304
€ 2.50
6-2
0154706303
ref: 6-2
MODEL R/S/T
BOLT,G/S SWITC
0154706303
€ 3.00
7
0949324012
ref: 7
JET(12)
0949324012
€ 10.50
8
0928004004
ref: 8
O RING(D:1.2,ID:4)
0928004004
€ 2.00
9
1118043410
ref: 9
JET,OIL GALLERY
1118043410
€ 10.50
10
0928009005
ref: 10
-09280-09004
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
11
1139012D01
ref: 11
PIPE,PISTON COOLING
1139012D01
€ 20.00
12
0928008012
ref: 12
O RING(D:1.9,ID:7.8)
0928008012
€ 4.00
13
1132814A03
ref: 13
-11328-14A02
SEPARATOR,OIL BREATHER
€ 4.50
14
0910310237
ref: 14
BOLT(10X130)
0910310237
€ 5.50
15
0910310238
ref: 15
BOLT 10X230
0910310238
€ 17.00
16
0910310239
ref: 16
BOLT(10X235)
0910310239
€ 12.00
17
0910310240
ref: 17
BOLT(10X80)
0910310240
€ 7.00
18-1
0915910044
ref: 18-1
MODEL M/N/P
NUT (10MM)
€ 4.00
18-2
0915910058
ref: 18-2
MODEL R/S/T
NUT
0915910058
€ 4.00
19
1161014A00
ref: 19
SPACER,ENG MTG(L:55)
1161014A00
€ 9.00
20
1161045410
ref: 20
SPACER,ENGINE MOUNT(L:65)
1161045410
€ 11.50
21-1
0832211104
ref: 21-1
MODEL M/N/P
WASHER 10MM
0832211104
€ 2.50
21-2
0832201103
ref: 21-2
MODEL R/S/T
WASHER
0832201103
€ 2.50
