REAR WHEEL

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

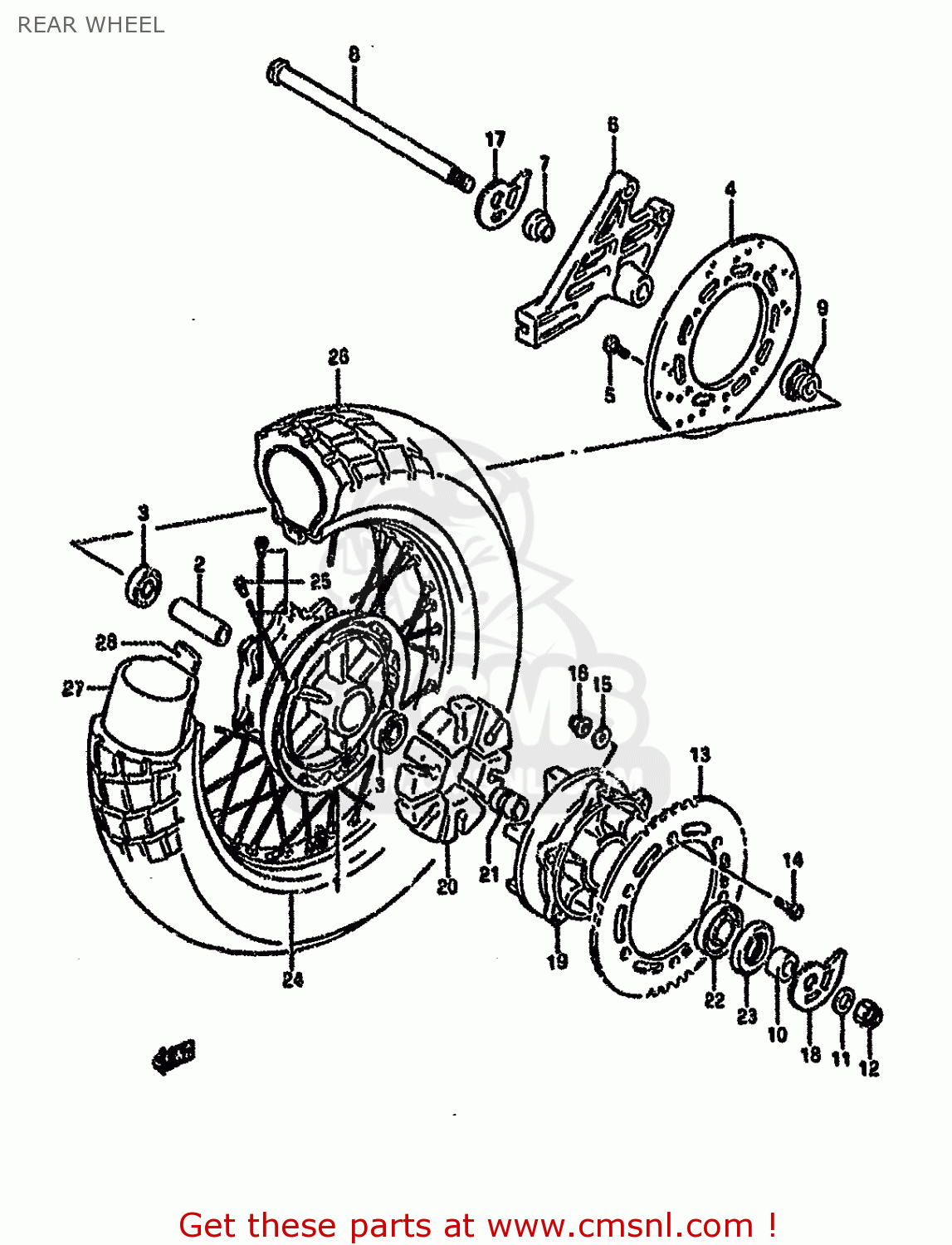

Rear wheel diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR WHEEL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR WHEEL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR WHEEL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
6411044B10
ref: 1-1
MODEL M/N/P/R/S
HUB COMP,REAR WHEEL
6411044B10
€ 358.00
1-2
6411131D00
ref: 1-2
MODEL T
HUB,REAR
€ 358.00
2
0918017071
ref: 2
SPACER(17.5X25X78)
0918017071
€ 20.00
3
0812463037
ref: 3
BEARING
0812463037
€ 18.50
4
6921144B00
ref: 4
DISC,RR BRAKE
6921144B00
€ 370.00
5-1
5942103A01
ref: 5-1
MODEL M/N
BOLT,BRAKE DISC
5942103A01
€ 4.00
5-2
5942103A10
ref: 5-2
MODEL P/R/S/T
BOLT,BRAKE DISC
5942103A10
€ 4.00
6
6972144B00
ref: 6
BRACKET,RR CALIPER
6972144B00
€ 103.00
7
0918017096
ref: 7
SPACER (17X21X10)
0918017096
€ 14.00
8-1
6471144B10
ref: 8-1
MODEL M/N/P-64711-44
AXLE,RR
6471144B10
€ 55.00
8-2
6471144B01
ref: 8-2
MODEL R/S/T
AXLE,REAR
6471144B01
€ 55.00
9
6475038211
ref: 9
SPACER,RR AXLE,L
6475038211
€ 12.00
10
0918017090
ref: 10
SPACER(17X33X22.4)
0918017090
€ 14.50
11
0916017013
ref: 11
WASHER (17X30X3.2)
0916017013
€ 2.00
12
0915916002
ref: 12
NUT
0915916002
€ 5.00
13
6451114A01
ref: 13
SPROCKET,RR(NT:42)
6451114A01
€ 99.00
14
0912008010
ref: 14
BOLT(8X30.5)
0912008010
€ 2.50
15-1
0832211088
ref: 15-1
MODEL M/N/P
WASHER
0832211088
€ 2.00
15-2
0832201083
ref: 15-2
MODEL R/S/T
WASHER
0832201083
€ 1.50
16
0831931087
ref: 16
NUT
0831931087
€ 2.50
17-1
6141112D00
ref: 17-1
MODEL M/N-61411-31D0
ADJUSTER,CHAIN
6141112D00
€ 15.00
17-2
6141131D00
ref: 17-2
MODEL P/R/S/T
ADJUSTER,CHAIN,R
6141131D00
€ 15.00
18-1
6142112D00
ref: 18-1
MODEL M/N-61421-31D0
PLATE,CHAIN ADJUSTER
€ 13.50
18-2
6142131D00
ref: 18-2
MODEL P/R/S/T
ADJUSTER,CHAIN,L
6142131D00
€ 13.50
19
6461144B10
ref: 19
DRUM,REAR SPROCKET
€ 127.50
20
6465144B01
ref: 20
ABSORBER,RR HUB SHOCK
6465144B01
€ 10.50
21
6473331300
ref: 21
RETAINER,RR SPROCKET DRUM
6473331300
€ 16.50
22
0926225073
ref: 22
BEARING(25X62X17)
0926225073
€ 21.50
23
0928533001
ref: 23
SEAL,OIL(33X62X7)
0928533001
€ 20.00
24
6531144B10
ref: 24
RIM,REAR WHEEL (17XMT2)
€ 377.50
25
6532044B10
ref: 25
SPOKE SET,RR
6532044B10
€ 79.00
26-1
6511012D00
ref: 26-1
TIRE,REAR (120/90-17 64S) (DUNLOP)
€ 220.50
26-2
6510012E00
ref: 26-2
MODEL S
TIRE,REAR 120/90-17 64
€ 0.00
27
6520049030
ref: 27
TUBE ASSY,WHEEL INNER
6520049030
€ 43.50
28
6526144B10
ref: 28
PROTECTOR,WHL INR TUBE
6526144B10
€ 4.50
