CARRIER

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

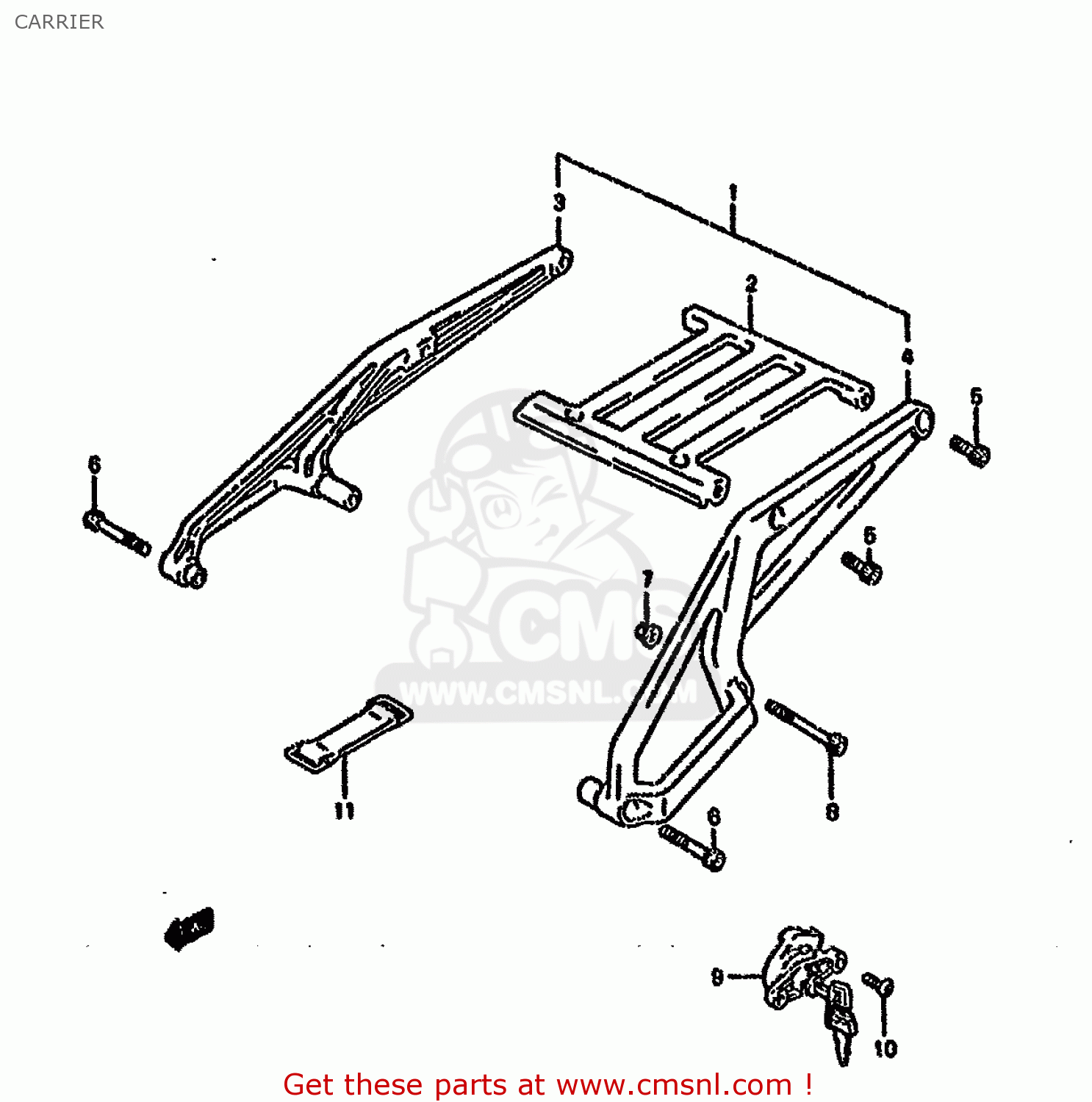

Carrier diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

4630012D2021R
ref: 1-1
MODEL M/N/P/R/S

CARRIER,REAR (SILVER)

€ 102.00

1-2

4630012D2020H
ref: 1-2
MODEL T

CARRIER,REAR (SILVER)

€ 0.00

2-1

4631144B0021R
ref: 2-1
MODEL M/N/P/R/S

REAR CARRIER,CENTER (SILVER)

€ 59.50

2-2

4631144B0020H
ref: 2-2
MODEL T

REAR CARRIER,CENTER (SILVER)

€ 59.50

3-1

4631212D2021R
ref: 3-1
MODEL M/N/P/R/S

REAR CARRIER,RH (SILVER)

€ 148.00

3-2

4631212D2020H
ref: 3-2
MODEL T

REAR CARRIER,RH (SILVER)

€ 148.00

4-1

4631312D2021R
ref: 4-1
MODEL M/N/P/R/S

CARRIER,RR,L(SILVER)

€ 144.50

4-2

4631312D2020H
ref: 4-2
MODEL T

REAR CARRIER,LH (SILVER)

€ 144.50

0713008207
ref: 5

BOLT

€ 3.00

0910608099
ref: 6

BOLT(8X50)

€ 3.50

0831931087
ref: 7

NUT

€ 2.50

0910608114
ref: 8

BOLT,REAR

€ 2.50

9570012852
ref: 9

LOCK SET,SEAT

€ 110.50

0913906064
ref: 10

SCREW

€ 2.50

0946200017
ref: 11

BAND

€ 13.50
