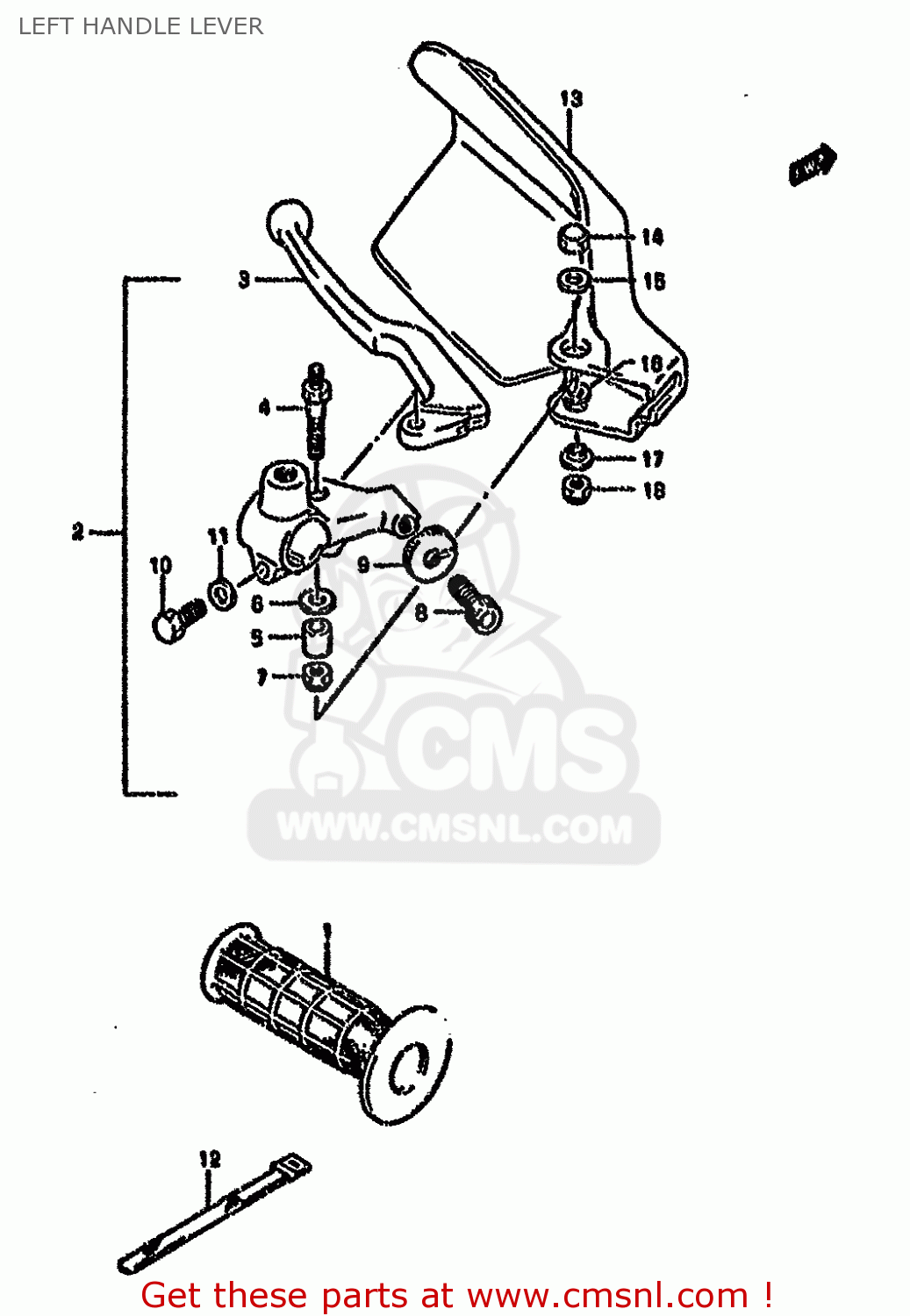

LEFT HANDLE LEVER

ref

part #

description

quantity

1

5721112D00
ref: 1

GRIP,L

€ 14.50

2

5750044B01
ref: 2

LEVER ASSY,CLUTCH

€ 51.50

3

5762049111
ref: 3

LEVER,CLUTCH

€ 34.00

4

5753144B00
ref: 4

BOLT,LEVER SET

€ 6.50

5

5753244B00
ref: 5

SPACER,LEVER SET

€ 3.50

6

5753344B00
ref: 6

WASHER,LEVER SET

€ 2.50

7

0831921065
ref: 7

NUT

€ 2.50

8

5744144400
ref: 8

ADJUSTER,CABLE

€ 5.50

9

5744244B00
ref: 9

NUT,LOCK

€ 11.50

10

0120406204
ref: 10

BOLT

€ 2.00

11

0832221064
ref: 11

WASHER

€ 2.00

12

0940712402
ref: 12

CLAMP(L:120)

€ 3.00

13-1

5754131D000MA
ref: 13-1
MODEL M,FOR 0JW

COVER,KNUCKLE,

€ 14.50

13-2

5754131D001AY
ref: 13-2
MODEL M/N/P,FOR 12F

COVER,KNUCKLE LH (BLUE)

€ 27.00

13-3

5754131D0028V
ref: 13-3
MODEL M/N,FOR 22P,1M

COVER,KNUCKLE,L

€ 21.50

13-4

5754131D0021C
ref: 13-4
MODEL N/P/R/S,FOR 33

COVER,KNUCKLE,L

€ 21.50

13-5

5754131D000NF
ref: 13-5
MODEL R/S,FOR 1LE

COVER,KNUCKLE,LEFT

€ 25.50

13-6

5754131D00019
ref: 13-6
MODEL T

COVER,KNUCKLE,LEFT

€ 21.50

14-1

0831311065
ref: 14-1
MODEL M/N/P

NUT 6MM

€ 2.00

14-2

0831310063
ref: 14-2
MODEL R/S/T

NUT

€ 2.00

15-1

0916006102
ref: 15-1
MODEL M/N/P

WASHER (6.5X20X1.6)

€ 2.00

15-2

0916006088
ref: 15-2
MODEL R/S/T

WASHER(6.5X20X1.6)

€ 2.00

16

0916006019
ref: 16

WASHER(6.5X16X1.2)

€ 1.50

17

0916906055
ref: 17

WASHER

€ 2.00

18

0831921068
ref: 18

NUT 6MM

€ 2.00

all assemblies
