FRONT WHEEL

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

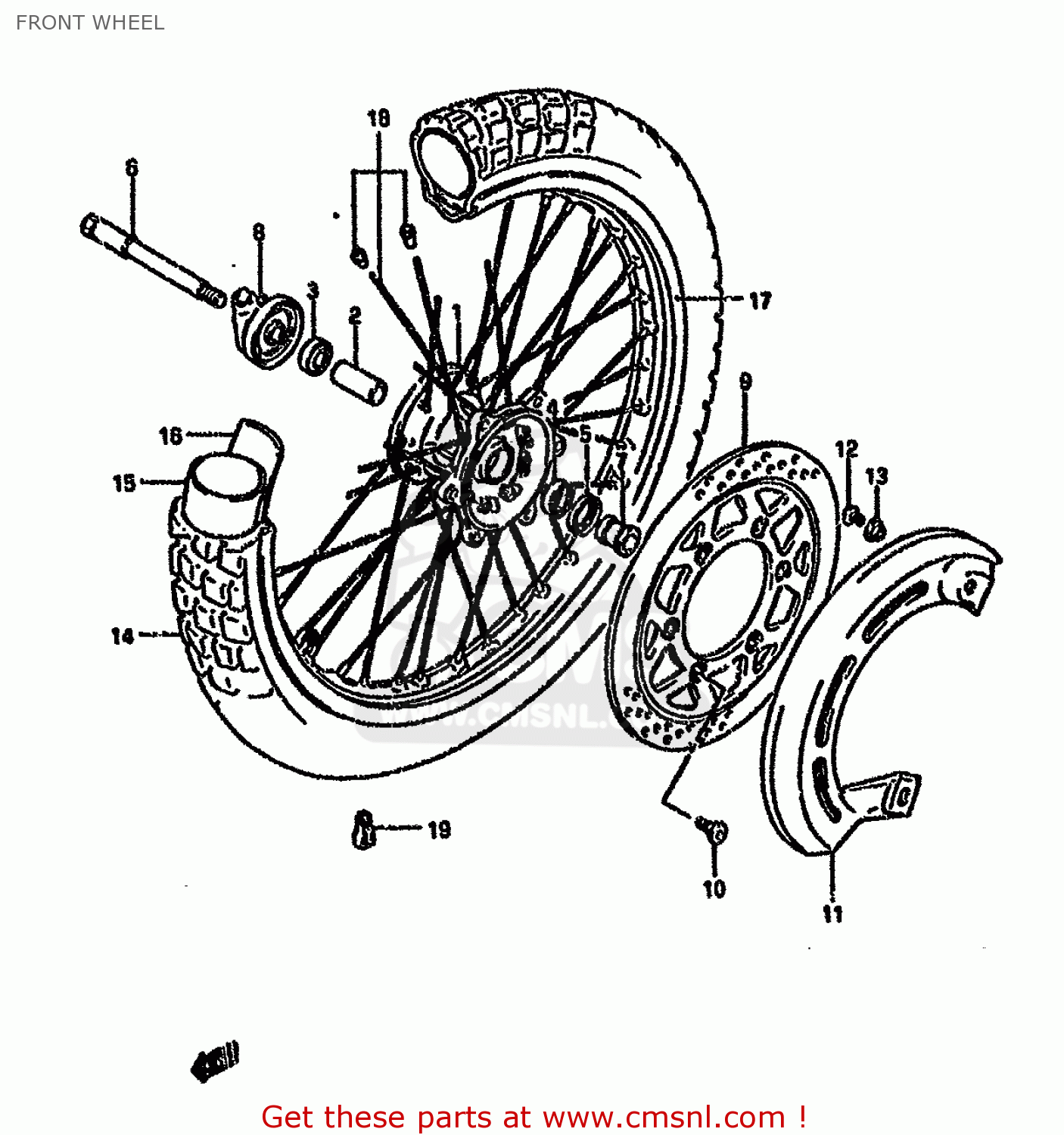

Front wheel diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

FRONT WHEEL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FRONT WHEEL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FRONT WHEEL DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
5411131D10
ref: 1-1
MODEL M/N/P/R/S
HUB,FRONT
€ 199.50
1-2
5411131D11
ref: 1-2
MODEL T
HUB,FRONT WHEEL
€ 199.50
2
5473144B00
ref: 2
SPACER,FR HUB BEARING
5473144B00
€ 11.50
3
0811362027
ref: 3
BEARING
0811362027
€ 14.50
4
0812362027
ref: 4
BEARING
0812362027
€ 14.50
5
0928422004
ref: 5
SEAL,OIL(22X35X5)
0928422004
€ 8.00
6
5471114D00
ref: 6
-54711-14D10
AXLE,FR
5471114D00
€ 66.50
7
5475114D00
ref: 7
SPACER,FR AXLE,L
5475114D00
€ 18.50
8
5460014D00
ref: 8
BOX ASSY,SPEEDOMETER GEAR
5460014D00
€ 87.50
9
5922112D00
ref: 9
DISC,FR BRAKE
€ 147.50
10-1
5942103A01
ref: 10-1
MODEL M/N
BOLT,BRAKE DISC
5942103A01
€ 4.00
10-2
5942103A10
ref: 10-2
MODEL P/R/S/T
BOLT,BRAKE DISC
5942103A10
€ 4.00
11-1
5923131D0012F
ref: 11-1
MODEL M/N
COVER,FRONT BRAKE DISC
5923131D0012F
€ 83.00
11-2
5923131D0022P
ref: 11-2
MODEL M
COVER,BRAKE DISC (RED)
€ 79.00
11-3
5923131D000JW
ref: 11-3
MODEL M
COVER,BRAKE DISC (WHITE)
€ 79.00
11-4
5923131D001MW
ref: 11-4
MODEL N
CV.FR.BRAKE DS
€ 79.00
11-5
5923131D0033J
ref: 11-5
MODEL N
COVER FR BRAKE
€ 79.00
11-6
5923131D101AY
ref: 11-6
MODEL P,FOR 12F
COVER,BRAKE DISC (BLUE)
€ 79.00
11-7
5923131D10
ref: 11-7
MODEL P/R/S,FOR 33J
COVER,FRONT BRAKE DISC
5923131D10
€ 79.00
11-8
5923131D100NF
ref: 11-8
MODEL R/S,FOR 1LE
COVER,FR BRAKE DISC
€ 68.50
12-1
0214206125
ref: 12-1
MODEL M/N/P
SCREW 6X12
0214206125
€ 2.00
12-2
0214206127
ref: 12-2
MODEL R/S/T
SCREW 6X12
0214206127
€ 1.50
13
0916906041
ref: 13
WASHER
0916906041
€ 2.00
14-1
5511012D00
ref: 14-1
TIRE,FRONT (90/90-21 54S) DUNLOP
€ 164.00
14-2
5510012E00
ref: 14-2
MODEL S
TIRE,FRONT 90/90-21 54
€ 0.00
15
5520016510
ref: 15
TUBE
5520016510
€ 32.50
16
5526114540
ref: 16
PROTECTOR,WHEEL INNER
5526114540
€ 5.00
17
5531144B00
ref: 17
RIM,FR WHEEL(21X1.85)
5531144B00
€ 336.50
18
5532031D00
ref: 18
SPOKE SET,FR WHEEL
5532031D00
€ 46.50
19-1
5541238A00
ref: 19-1
BALANCER,WHEEL
5541238A00
€ 6.50
19-2
5541338A00
ref: 19-2
BALANCER,WHEEL (30G)
€ 8.00
