TURNSIGNAL LAMP

DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

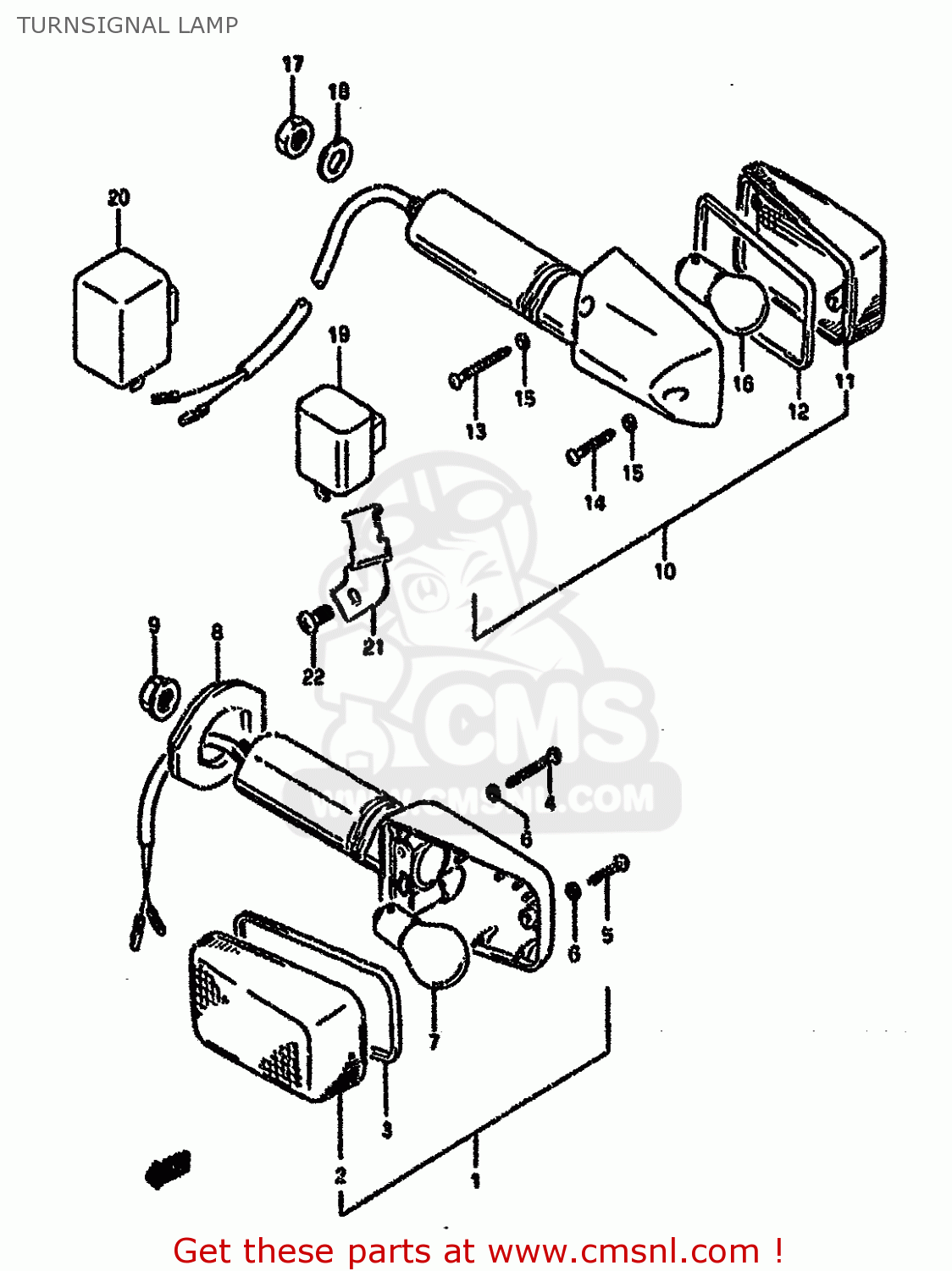

Turnsignal lamp diagram DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

TURNSIGNAL LAMP DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
TURNSIGNAL LAMP DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
TURNSIGNAL LAMP DR650RSE 1991 (M) (2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
3560101D10
ref: 1-1
MODEL M/N/P
LAMP ASSY,FR TURN SIGNAL
3560101D10
€ 70.50
1-2
3560129EC0
ref: 1-2
MODEL R/S,-35601-29E
LAMP ASSY,FR TURN SIGNAL
3560129EC0
€ 78.00
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
3567427A01
ref: 8
GROMMET
3567427A01
€ 13.50
9-1
0831620103
ref: 9-1
MODEL M
NUT
0831620103
€ 3.50
9-2
0831012105
ref: 9-2
MODEL N/P
NUT
€ 2.00
9-3
0831000103
ref: 9-3
MODEL R/S/T
NUT
0831000103
€ 2.00
10-1
3560314D10
ref: 10-1
MODEL M/N/P
LAMP ASSY,RR TURNSIGNAL
3560314D10
€ 88.00
10-2
3560329E90
ref: 10-2
MODEL R/S/T-35603-29
LAMP ASSY,RR TURNSIGNAL,R
3560329E90
€ 62.00
10-3
3560314D20
ref: 10-3
E15,E16-35603-17C31
LAMP ASSY,RR TURNSIGNAL
3560314D20
€ 74.00
11
3565217C20
ref: 11
LENS
3565217C20
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
3561327A00
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
3562327A00
€ 1.50
14
3572540511
ref: 14
SCREW
3572540511
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
3562727A02
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
0947112045
€ 5.00
17-1
0914010036
ref: 17-1
MODEL M/N
NUT
€ 3.50
17-2
0831616105
ref: 17-2
MODEL P
NUT
€ 2.00
17-3
0831610103
ref: 17-3
MODEL R/S/T
NUT
0831610103
€ 2.00
18
0832211104
ref: 18
MODEL M/N
WASHER 10MM
0832211104
€ 2.50
19
3861031X50
ref: 19
MODEL M/N-38610-3131
RELAY ASSY,TURNSIGNAL
3861031X50
€ 54.50
20-1
3861045091
ref: 20-1
MODEL M/N E22
RELAY ASSY,TUR
€ 67.50
20-2
3861045D00
ref: 20-2
MODEL P
RELAY,TURN SIGNAL
€ 68.50
20-3
3861045D01
ref: 20-3
MODEL R/S/T
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
21
3862104A01
ref: 21
BRACKET,RELAY
€ 3.50
22
0211206083
ref: 22
SCREW
0211206083
