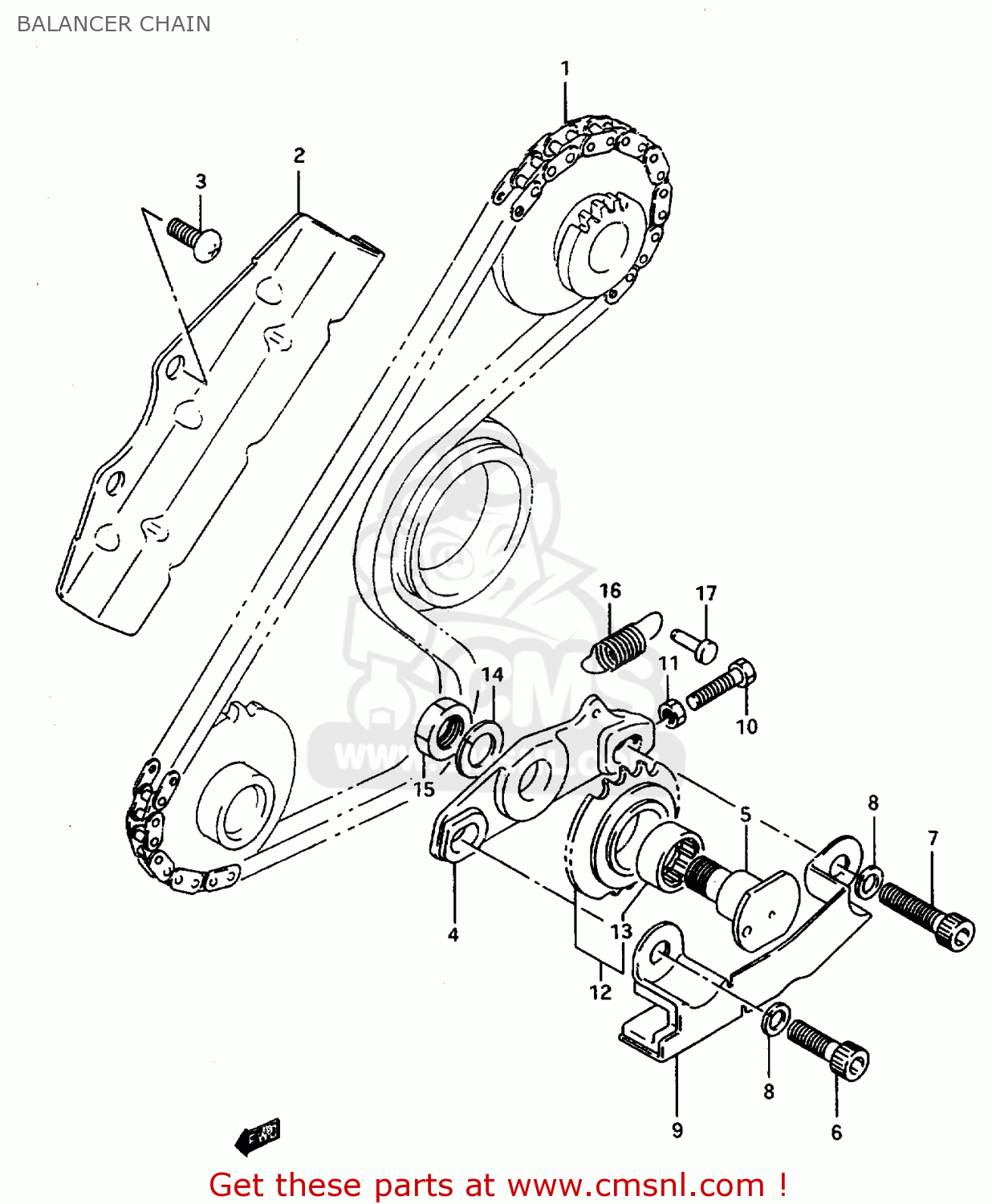

BALANCER CHAIN

ref

part #

description

quantity

1

1267031D00
ref: 1

CHAIN,BALANCER

€ 82.00

2

1269544B00
ref: 2

GUIDE,BALANCER CHAIN

€ 30.50

3

0211206123
ref: 3

SCREW

€ 1.50

4

1268144B00
ref: 4

BRACKET, CHAIN TENSIONER

€ 51.00

5

1268214A01
ref: 5

SHAFT,BALANCER CHAIN TENSIONER

€ 29.00

6

0910608005
ref: 6

BOLT(8X22)

€ 2.00

7

0713008303
ref: 7

BOLT

€ 3.00

8

0832101083
ref: 8

LOCK WASHER

€ 2.50

9

1269631D00
ref: 9

GUIDE, CHAIN TENSIONER

€ 25.50

10

0150005163
ref: 10

BOLT

€ 1.50

11

0914005006
ref: 11

NUT

€ 2.00

12

1268544B00
ref: 12

SPRKT,BALANCER CHAIN TENSIONER

€ 75.00

13

0926317007
ref: 13

BEARING(17X23X12)

€ 13.00

14

0916212006
ref: 14

WASHER,LOCK

€ 2.50

15

0914012021
ref: 15

NUT

€ 2.50

16

0944310040
ref: 16

SPRING

€ 2.50

17

0922304001
ref: 17
INCLUDED CRANKCASE S

RIVET

€ 1.50

all assemblies
