STAND - REAR BRAKE

DR800SU 1997 (V) GERMANY (E22)

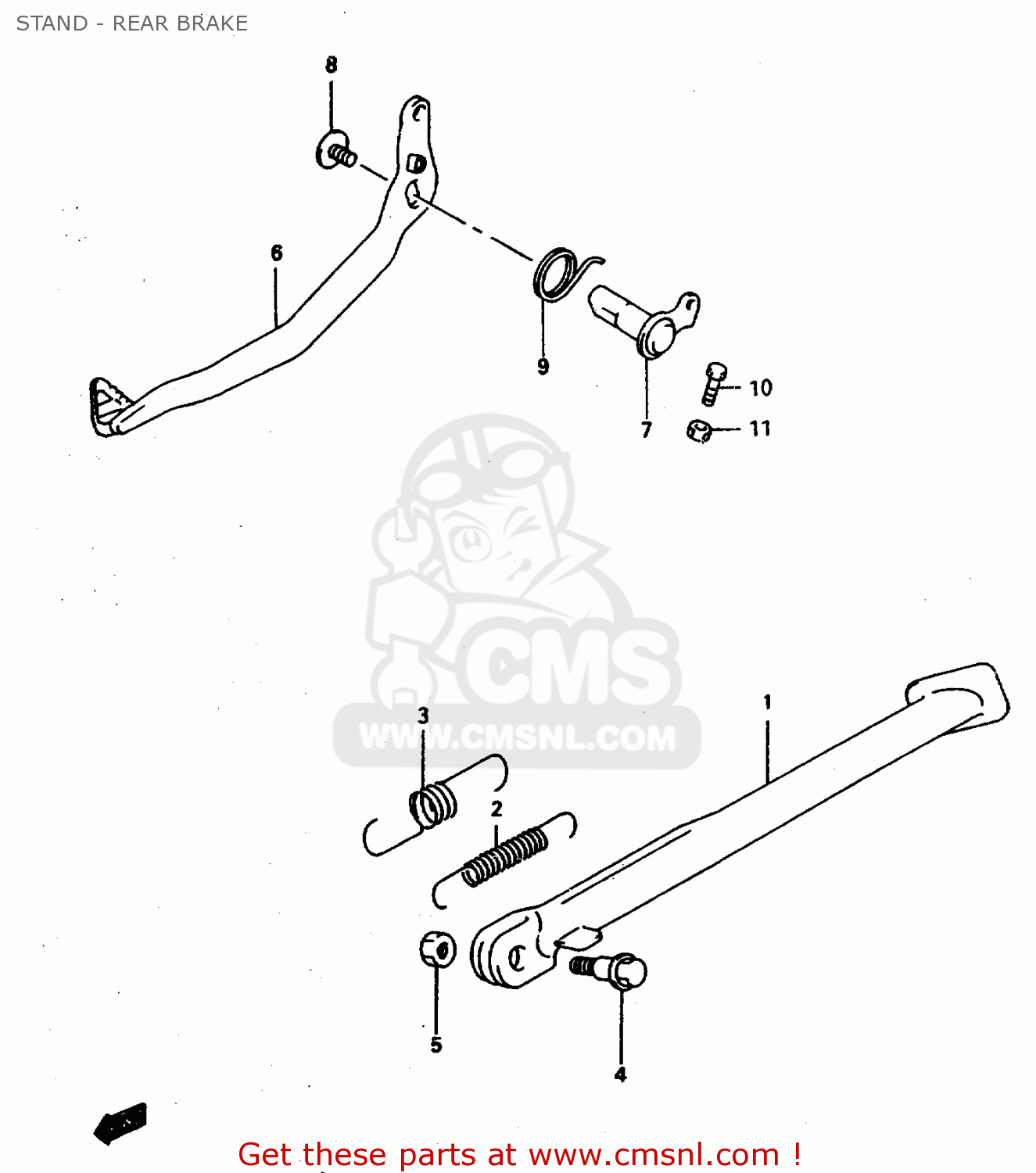

Stand - rear brake diagram DR800SU 1997 (V) GERMANY (E22)

STAND - REAR BRAKE DR800SU 1997 (V) GERMANY (E22)

STAND - REAR BRAKE DR800SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

4231031D00019
ref: 1

STAND, PROP (BLACK)

€ 97.50

2

0944315041
ref: 2

SPRING

€ 18.50

3

0944322010
ref: 3

SPRING

€ 7.00

4

0911110048
ref: 4

BOLT(10X33.5)

€ 4.00

5

0915910097
ref: 5

NUT

€ 5.00

6

4311044B21
ref: 6

PEDAL,BRAKE

€ 39.00

7

4312044B00
ref: 7

ARM,BRAKE PEDAL ROD

€ 18.00

8

0910608102
ref: 8

BOLT(8X14)

€ 7.00

9

0944832018
ref: 9

SPRING

€ 5.00

10

0910006009
ref: 10

BOLT(6X23)

€ 1.50

11

0831000063
ref: 11

NUT 6MM

€ 2.00
