COWLING FITTING SET
DR800SU 1997 (V) GERMANY (E22)

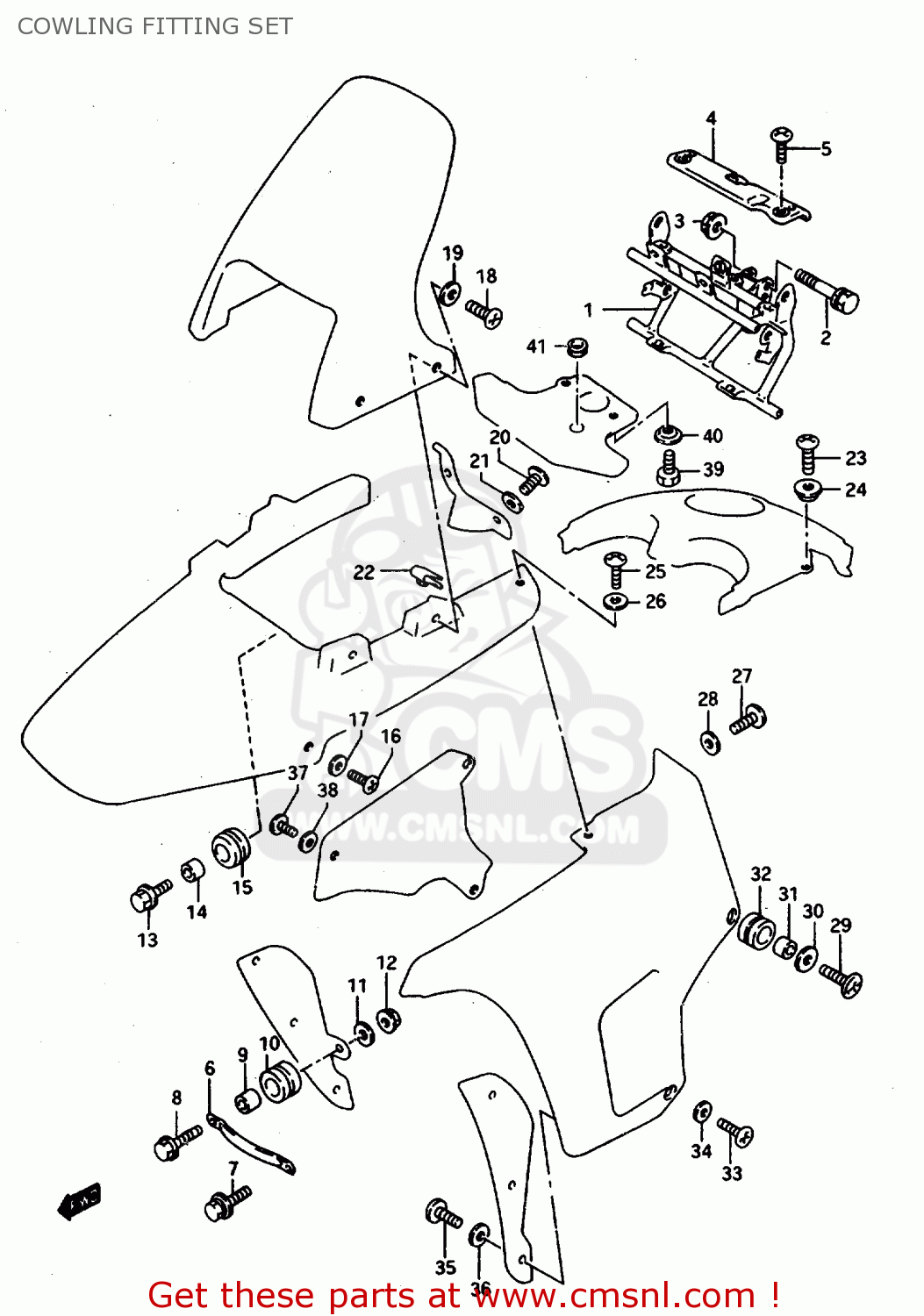

Cowling fitting set diagram DR800SU 1997 (V) GERMANY (E22)
COWLING FITTING SET DR800SU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
9451031D00
ref: 1
BRACE,COWLING
€ 184.00
2
0157008453
ref: 2
BOLT
€ 3.00
3
0831320083
ref: 3
NUT
€ 2.50
4
9459331D01
ref: 4
COVER,COWLING BRACE
€ 19.00
5
0214206123
ref: 5
SCREW 6X12
€ 2.00
6
9454131D00
ref: 6
BRACE,COWLING SIDE
€ 16.00
7
0158006163
ref: 7
BOLT
€ 2.50
8
0155006203
ref: 8
BOLT
€ 2.50
9
0918006038
ref: 9
SPACER(6.1X9X7.5)
€ 2.00
10
0932008021
ref: 10
CUSHION
€ 4.00
11
0916006088
ref: 11
WASHER(6.5X20X1.6)
€ 2.00
12
0831931065
ref: 12
NUT
€ 2.50
13
0911606093
ref: 13
BOLT(6X25)
€ 2.00
14
0918006307
ref: 14
SPACER(6.5X9X10)
€ 3.00
15
0932008047
ref: 15
CUSHION
€ 4.00
16
0913905044
ref: 16
SCREW(5X16)
€ 5.00
17
0916107009
ref: 17
WASHER(7X13X0.6)
€ 3.00
18
0913905022
ref: 18
SCREW
€ 2.50
19
0916105010
ref: 19
WASHER(5.2X11X1)
€ 2.00
20
0913905021
ref: 20
SCREW(5X12)
€ 2.00
21
0916005037
ref: 21
WASHER(5.5X16X1.2)
€ 1.50
22
9448432B00
ref: 22
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
23
0913905021
ref: 23
SCREW(5X12)
€ 2.00
24
0916105017
ref: 24
WASHER(5.2X14X1.5)
€ 3.00
25
0913905044
ref: 25
SCREW(5X16)
€ 5.00
26
0916107009
ref: 26
WASHER(7X13X0.6)
€ 3.00
27
0913905044
ref: 27
SCREW(5X16)
€ 5.00
28
0916007015
ref: 28
WASHER
€ 2.50
29
0913906050
ref: 29
SCREW(6X20)
€ 5.00
30
0916006056
ref: 30
WASHER(6.5X18X1)
€ 2.00
31
0918006307
ref: 31
SPACER(6.5X9X10)
€ 3.00
32
0932009016
ref: 32
CUSHION
€ 2.50
33
0913905025
ref: 33
SCREW(5X14)
€ 2.00
34
0916105017
ref: 34
WASHER(5.2X14X1.5)
€ 3.00
35
0214205103
ref: 35
SCREW
€ 2.50
36
0916005037
ref: 36
WASHER(5.5X16X1.2)
€ 1.50
37
0214205103
ref: 37
SCREW
€ 2.50
38
0916005037
ref: 38
WASHER(5.5X16X1.2)
€ 1.50
39
0150006163
ref: 39
BOLT
€ 2.00
40
0916906071
ref: 40
WASHER
€ 2.50
41
0930816006
ref: 41
GROMMET
€ 3.00
