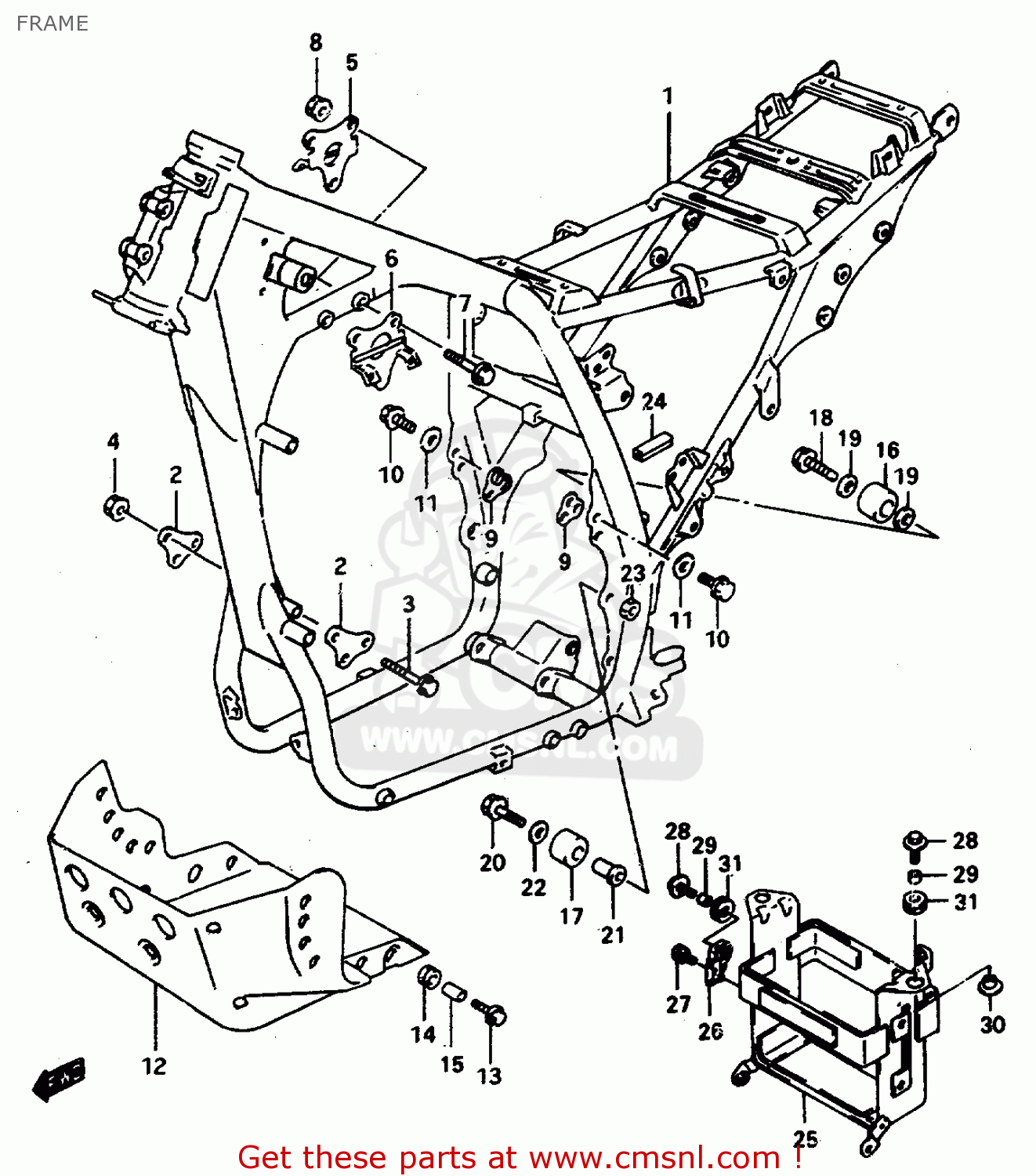

FRAME

ref

part #

description

quantity

1

4110031D0124K
ref: 1

FRAME(CHARCOAL)

€ 1,277.50

2

4191144B00019
ref: 2

PLATE,ENG MTG FR

€ 9.50

3

0910308293
ref: 3

BOLT(8X70)

€ 4.50

4

0915908103
ref: 4

NUT

€ 2.00

5

4189044B02019
ref: 5

PLATE,ENG MTG UPR,R

€ 19.00

6

4199044B02019
ref: 6

PLATE,ENG MTG UPR,L

€ 19.00

7

0910308332
ref: 7

BOLT(8X53)

€ 3.50

8

0915908103
ref: 8

NUT

€ 2.00

9

4195044B00019
ref: 9

PLATE, REAR (BLACK)

€ 9.50

10

0155008253
ref: 10

BOLT

€ 2.50

11

0832101083
ref: 11

LOCK WASHER

€ 2.50

12

4251144B0030H
ref: 12

PROTECTOR,ENGINE

€ 258.50

13

0911606010
ref: 13

BOLT(6X20)

€ 2.00

14

0932009016
ref: 14

CUSHION

€ 2.50

15

0918006263
ref: 15

SPACER(6.5X9X9)

€ 2.00

16

4391027C11
ref: 16

ROLLER,CHAIN

€ 36.50

17

4391101B10
ref: 17

ROLLER,CHAIN CONTROL

€ 14.50

18

0910308083
ref: 18

BOLT(8X41)

€ 3.50

19

0918108111
ref: 19

SHIM(8X12X1)

€ 2.00

20

0910310197
ref: 20

BOLT(10X52)

€ 5.00

21

4391644B00
ref: 21

SPACER,CHAIN ROLLER, LWR

€ 11.50

22

0821110221
ref: 22

WASHER

€ 2.50

23

0831931105
ref: 23

NUT 10MM

€ 3.00

24

9463519C00
ref: 24

MOLDING

€ 6.00

25

4154031D01
ref: 25

HOLDER, BATTERY

€ 58.00

26

4155031D00
ref: 26

PLATE, SIDE

€ 4.50

27

0157006103
ref: 27

BOLT

€ 2.50

28

0911606093
ref: 28

BOLT(6X25)

€ 2.00

29

0918006038
ref: 29

SPACER(6.1X9X7.5)

€ 2.00

30

0916906065
ref: 30

WASHER

€ 3.50

31

0932008021
ref: 31

CUSHION

€ 4.00
