HANDLE SWITCH

DR800SU 1997 (V) GERMANY (E22)

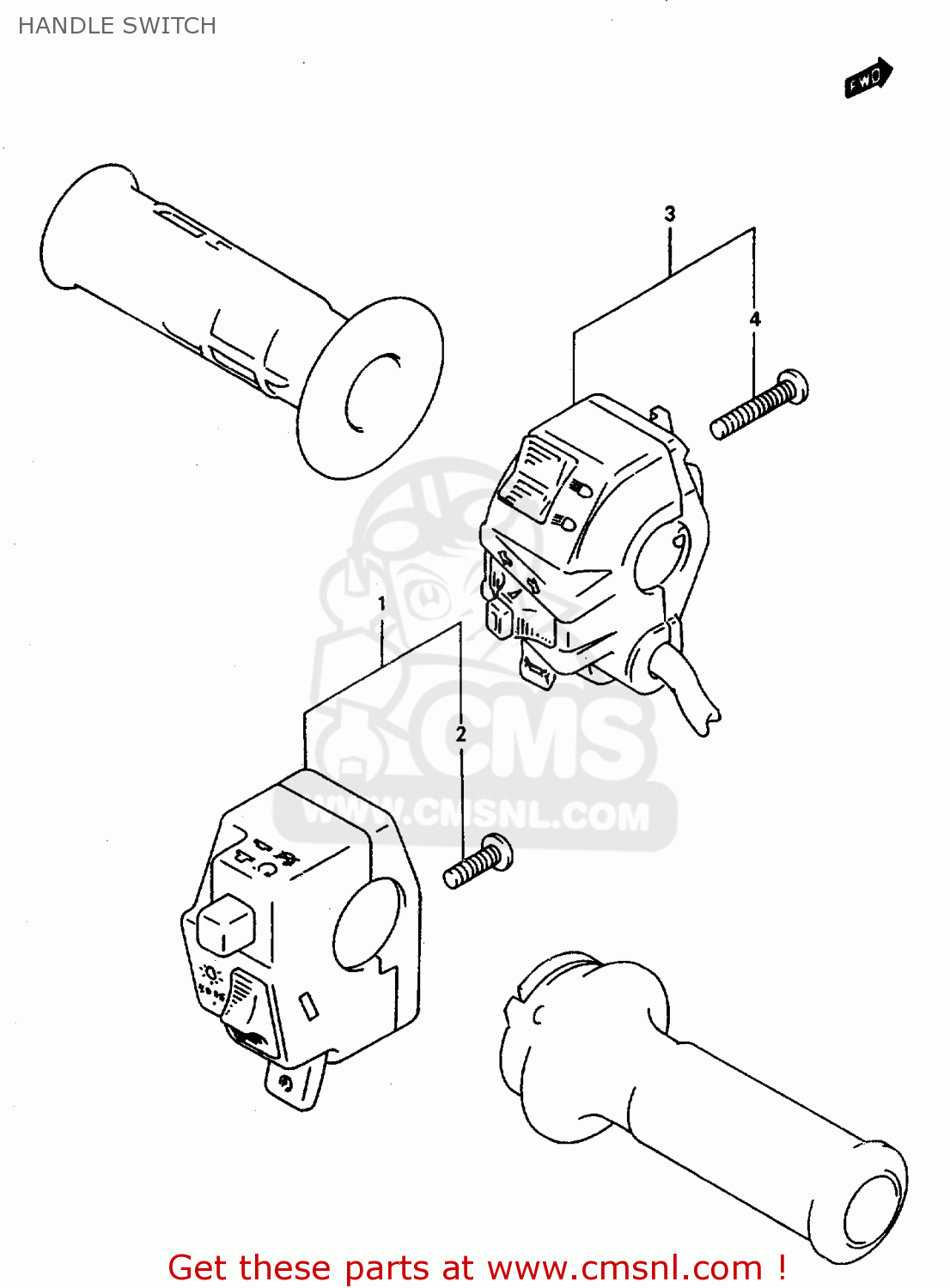

Handle switch diagram DR800SU 1997 (V) GERMANY (E22)

HANDLE SWITCH DR800SU 1997 (V) GERMANY (E22)

HANDLE SWITCH DR800SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3720031D30
ref: 1

SWITCH ASSY,HANDLE,R

€ 111.00

2

0211205253
ref: 2

SCREW

€ 1.50

3

3740031D30
ref: 3

SWITCH ASSY,HANDLE,L

€ 131.00

4

0211205305
ref: 4

SCREW

€ 1.50
