FRONT BRAKE HOSE

DR800SU 1997 (V) GERMANY (E22)

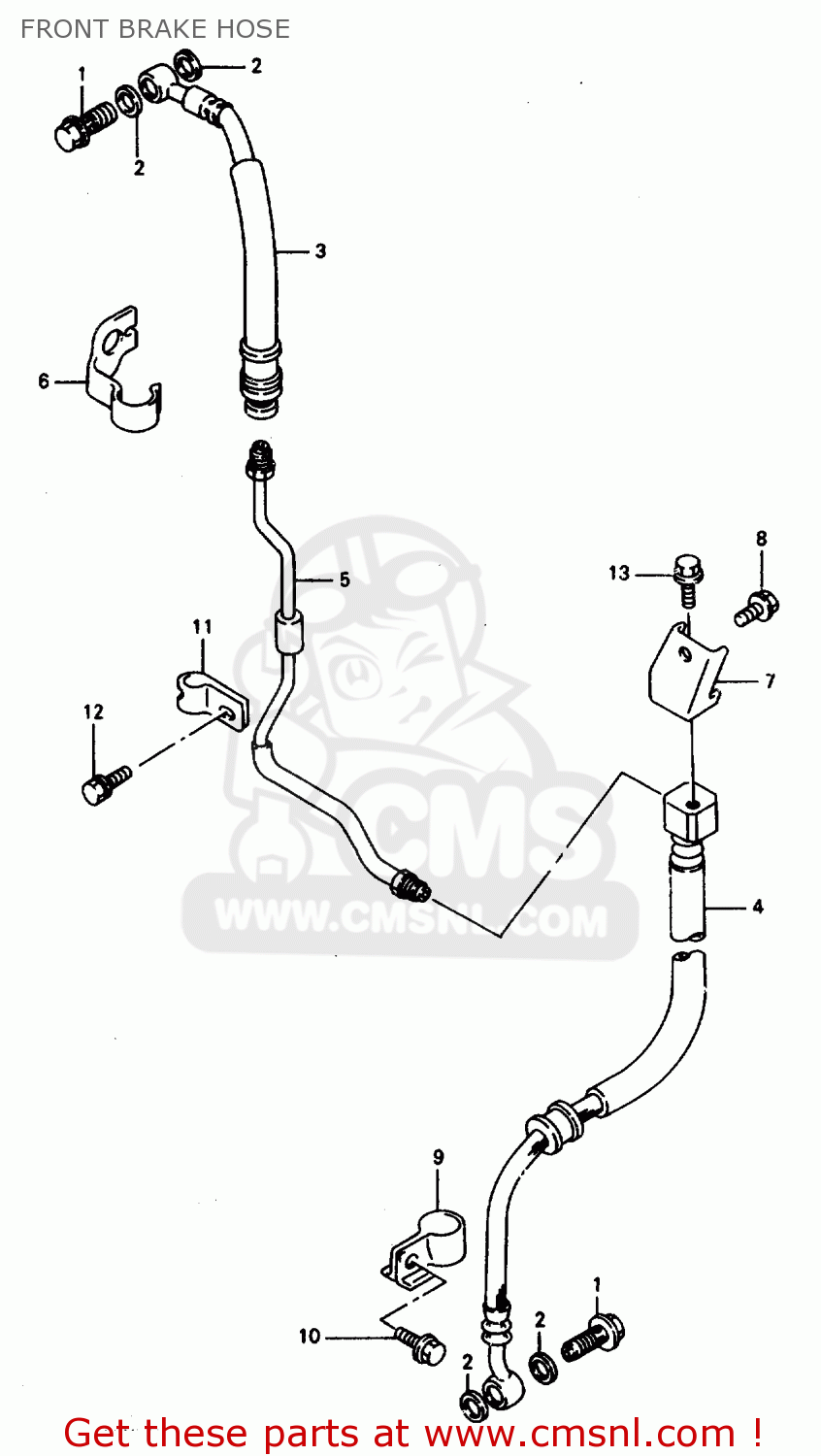

Front brake hose diagram DR800SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

0936010040
ref: 1

BOLT UNION

€ 5.00

0916110009
ref: 2

WASHER(10X15X1.5)

€ 2.00

5948031D01
ref: 3

HOSE,FR BRAKE NO.1

€ 65.00

5924031D10
ref: 4

HOSE,FR BRAKE NO.2

€ 94.00

5925031D00
ref: 5

PIPE,FR BRAKE

€ 21.50

5926631D00
ref: 6

CLAMP,FR BRAKE HOSE NO.1

€ 5.00

5924331D00
ref: 7

BRACKET,FR BRAKE HOSE NO.2

€ 6.50

0155006103
ref: 8

BOLT

€ 2.50

5926031D00
ref: 9

CLAMP,FR BRAKE HOSE NO.2

€ 9.00

0154706207
ref: 10

BOLT

€ 2.50

0940306401
ref: 11

CLAMP

€ 2.00

0157006103
ref: 12

BOLT

€ 2.50

0154706103
ref: 13

BOLT

€ 3.00
