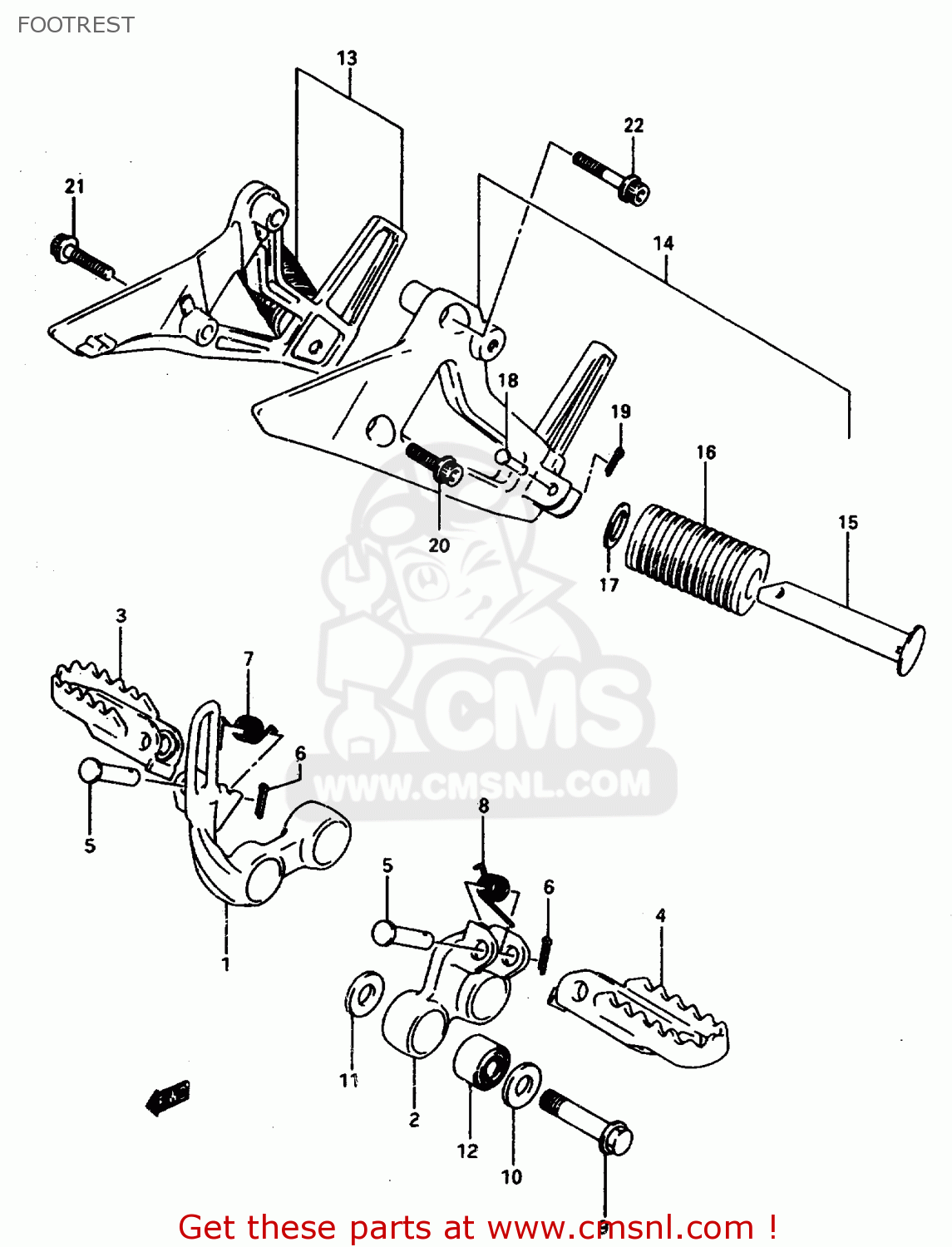

FOOTREST

ref

part #

description

quantity

1

4351044B10019
ref: 1

BRACKET,FR FOOTREST,R

€ 142.50

2

4352044B10019
ref: 2

BAR, FOOTREST LH (BLACK)

€ 32.50

3

4355044B10019
ref: 3

FOOTREST,FR,R

€ 52.50

4

4356044B10019
ref: 4

FOOTREST,FR,L

€ 27.00

5

0920010008
ref: 5

PIN

€ 3.00

6

0411120208
ref: 6

PIN 20X20

€ 1.50

7

0944815008
ref: 7

SPRING

€ 2.50

8

0944815004
ref: 8

SPRING

€ 2.50

9

0910310255
ref: 9

BOLT(10X57)

€ 8.00

10

0916010503
ref: 10

WASHER (10.6X25X3.2)

€ 2.00

11

0916010059
ref: 11

WASHER

€ 2.50

12

0931910065
ref: 12

BUSH

€ 15.00

13

4360031D0113L
ref: 13

FOOTREST ASSY,PILLION,R

€ 205.50

14

4370031D0113L
ref: 14

FOOTREST ASSY,PILLION,L

€ 211.00

15

4361031D01
ref: 15

BAR,PILLION FOOTREST

€ 49.00

16

4361244B00
ref: 16

RUBBER,PILLION FOOTREST

€ 14.00

17

0916019006
ref: 17

WASHER (19.5X32X2)

€ 2.00

18

0920006041
ref: 18

PIN

€ 3.00

19

0411120158
ref: 19

PIN

€ 1.50

20

0910608120
ref: 20

BOLT

€ 3.50

21

0910608121
ref: 21

BOLT(8X30)

€ 3.50

22

0910608122
ref: 22

BOLT(8X40)

€ 3.00

all assemblies
