FRONT MASTER CYLINDER

DR800SU 1997 (V) GERMANY (E22)

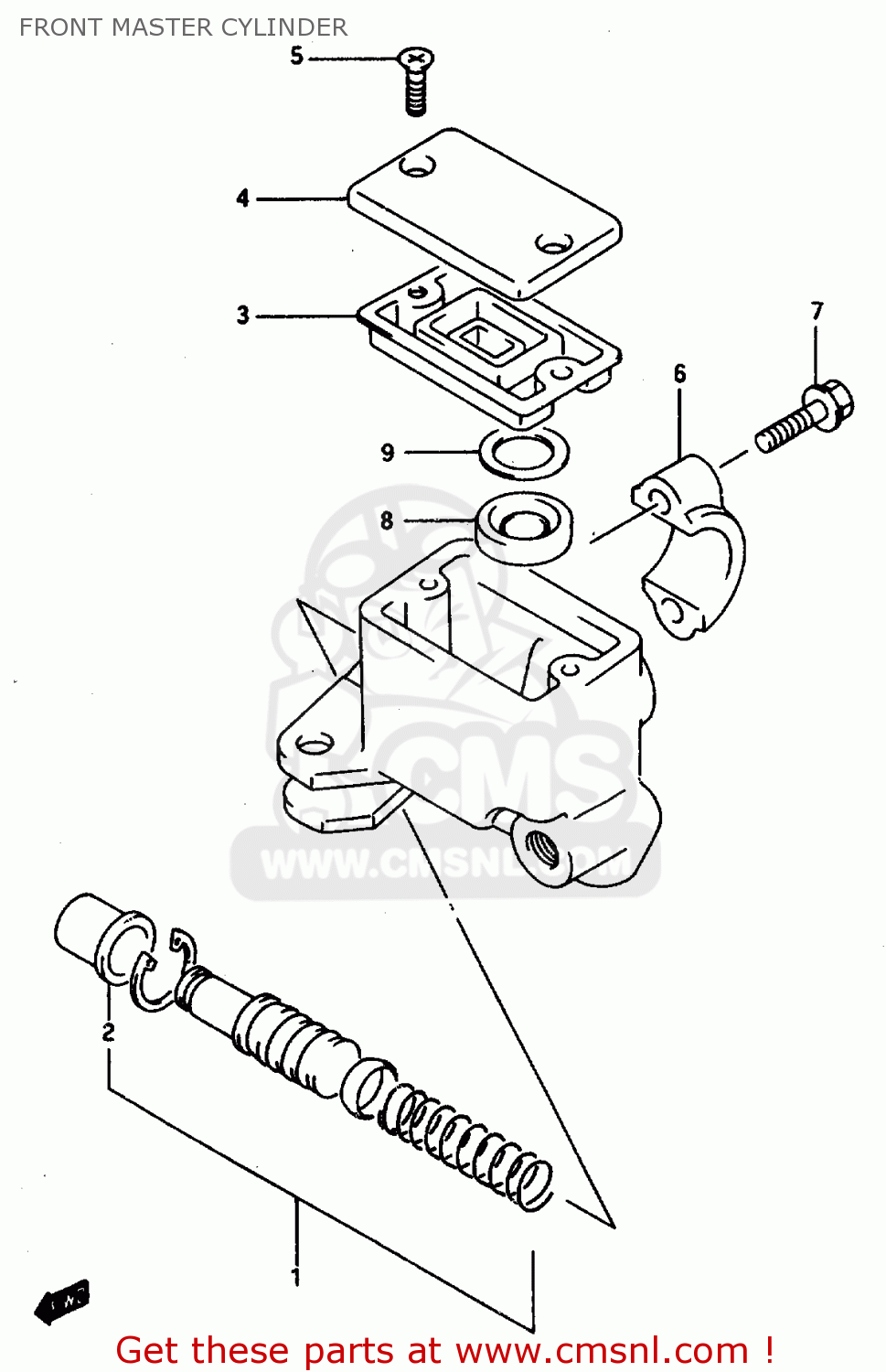

Front master cylinder diagram DR800SU 1997 (V) GERMANY (E22)

FRONT MASTER CYLINDER DR800SU 1997 (V) GERMANY (E22)

FRONT MASTER CYLINDER DR800SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

0

5960031D00
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 175.50

1

5960004810
ref: 1

PISTON/CUP SET

€ 37.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5966744B00
ref: 3

DIAPHRAGM

€ 8.00

4

6966924A01
ref: 4

CAP

€ 12.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

5967136500
ref: 6

HOLDER

€ 10.00

7

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

8

5974815400
ref: 8

SEPERATOR

€ 7.50

9

5974915400
ref: 9

PLATE

€ 2.00
