CAM CHAIN

DR800SU 1997 (V) GERMANY (E22)

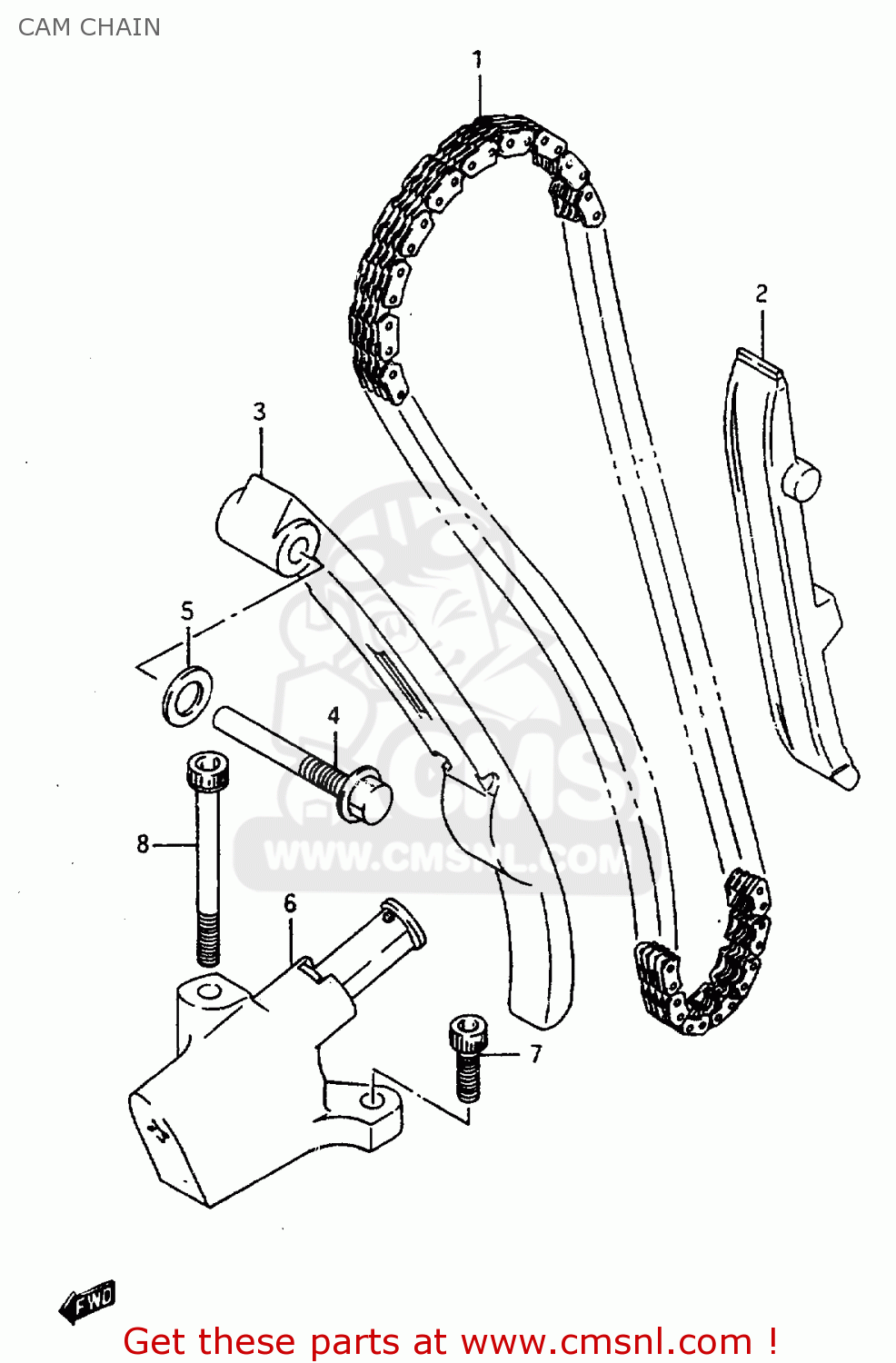

Cam chain diagram DR800SU 1997 (V) GERMANY (E22)

CAM CHAIN DR800SU 1997 (V) GERMANY (E22)

CAM CHAIN DR800SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

1276044B00106
ref: 1
106LE

CHAIN,CAMSHAFT DRIVE

€ 97.50

2

1277144B00
ref: 2

GUIDE,CAM CHAIN

€ 29.50

3

1281144B00
ref: 3

TENSIONER,CAM CHAIN

€ 66.00

4

1281224B00
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 5.50

5

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6

1283044B02
ref: 6

ADJUSTER ASSY,TENSIONER

€ 83.50

7

0713006203
ref: 7

BOLT,CRKCASE,R

€ 3.00

8

0713006553
ref: 8

BOLT

€ 2.50
