CARBURETOR
DR800SU 1997 (V) GERMANY (E22)

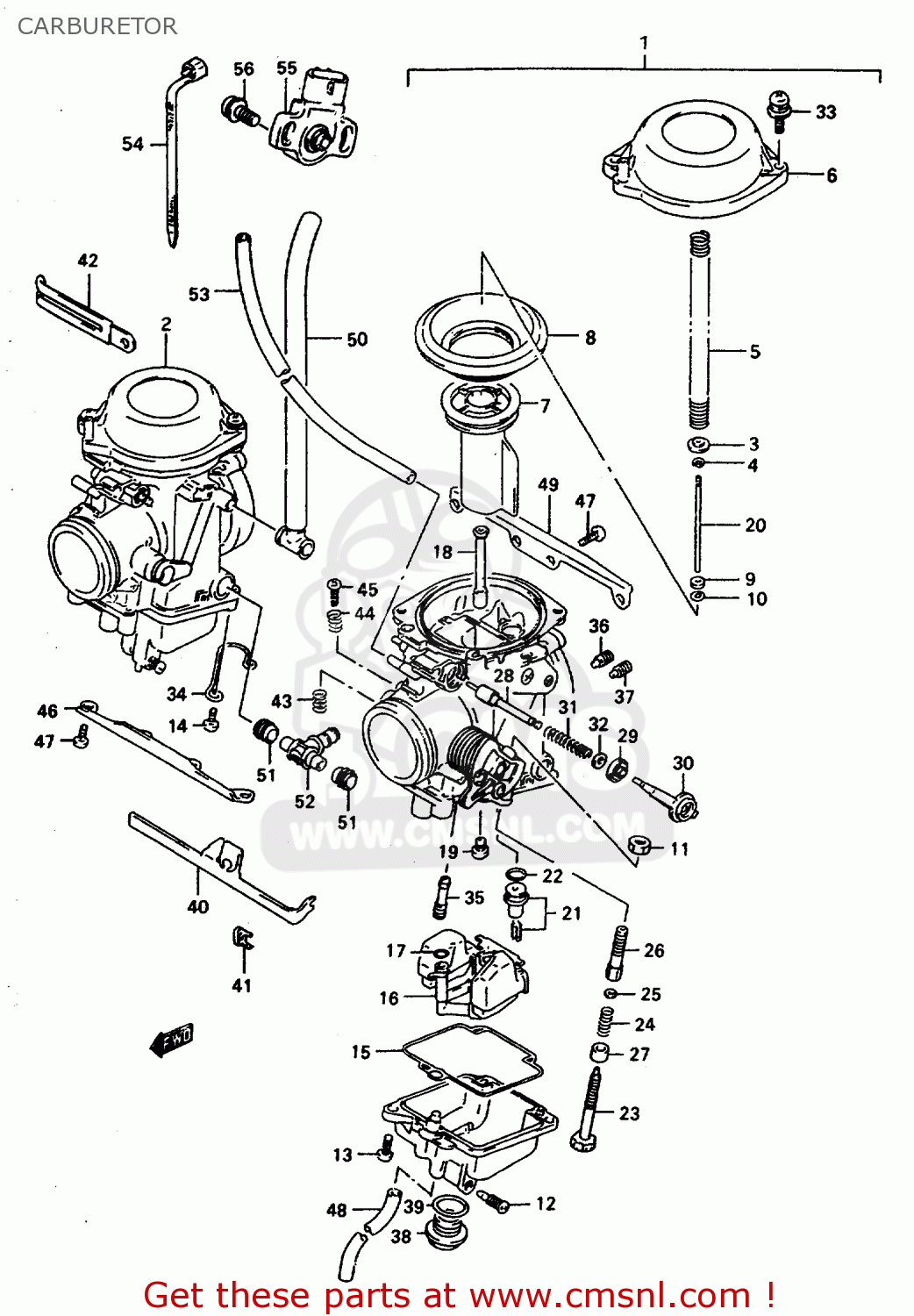

Carburetor diagram DR800SU 1997 (V) GERMANY (E22)
CARBURETOR DR800SU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320132D60
ref: 1-1
CARBURETOR ASSY, LH
€ 0.00
1-2
1320132D70
ref: 1-2
DR800SV E22
CARBURETOR ASSY, LH
€ 0.00
1-3
1320132D80
ref: 1-3
DR800SUV E22
CARBURETOR ASSY, LH
€ 0.00
2-1
1320232D60
ref: 2-1
CARBURETOR ASSY, RH
€ 0.00
2-2
1320232D70
ref: 2-2
DR800SV E22
CARBURETOR ASSY,R
€ 0.00
2-3
1320232D80
ref: 2-3
DR800SUV E22
CARBURETOR ASSY, RH
€ 0.00
3
1338242A00
ref: 3
RING
€ 3.50
4
1339410010
ref: 4
EXCEPT DR800SUV E22
CLIP
€ 4.50
5
1341744B00
ref: 5
SPRING
€ 6.00
6-1
1350245B00
ref: 6-1
COVER,DIAPHRAGM
€ 36.00
6-2
1350201D10
ref: 6-2
DR800SUV E22
COVER ASSY,DIAPHRAGM
€ 31.50
7
1355144B10
ref: 7
VALVE PISTON
€ 74.50
8
1350744B00
ref: 8
DIAPHRAGM
€ 29.00
9
1338747010
ref: 9
RING
€ 7.50
10
1338244030
ref: 10
DR800SUV E22
WASHER
€ 3.50
11
0831000087
ref: 11
LH
NUT
€ 2.00
12
1324713A00
ref: 12
SCREW,DRAIN
€ 5.50
13
0211205127
ref: 13
LH:2,RH:1
SCREW
€ 2.50
14
1360105148
ref: 14
RH
SCREW(5X14)
€ 3.00
15
1325844B00
ref: 15
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
16
1324031D00
ref: 16
FLOAT ASSY
€ 52.50
17
1337446710
ref: 17
O RING
€ 4.50
18
0949400640
ref: 18
JET,NEEDLE (O-3)
€ 40.00
19
0949126011
ref: 19
JET,MAIN(130)
€ 11.50
20-1
1338344B00
ref: 20-1
NEEDLE,JET
€ 15.00
20-2
1338332D80
ref: 20-2
DR800SUV E22
NEEDLE, JET (5E96)
€ 14.00
21
1337044B00
ref: 21
VALVE ASSEMBLY,NEEDLE
€ 46.50
22
1337444080
ref: 22
O-RING,NEEDLE VALVE
€ 6.00
23
1326731D10
ref: 23
LH
ADJUSTER
€ 12.00
24
1326849120
ref: 24
LH
SPRING
€ 5.50
25
1361543010
ref: 25
LH
WASHER,STARTER SHAFT
€ 2.50
26
1326731D00
ref: 26
LH
ADJUSTER
€ 21.50
27
1343295210
ref: 27
LH
RING
€ 4.00
28
1341105320
ref: 28
PLUNGER ASSY
€ 18.00
29
1341817C00
ref: 29
CAP,STARTER
€ 5.00
30
1341817C10
ref: 30
HOLDER,GUIDE
€ 14.00
31
1341726D00
ref: 31
SPRING
€ 5.50
32
1343247090
ref: 32
WASHER
€ 2.50
33
0211275163
ref: 33
SCREW
€ 2.50
34
1369244B00
ref: 34
RH
CLIP
€ 4.00
35
0949245016
ref: 35
JET,PILOT(45)
€ 12.00
36-1
0949326004
ref: 36-1
JET,AIR(1.3)
€ 14.50
36-2
0949328007
ref: 36-2
DR800SUV E22
JET,AIR
€ 15.50
37
0949360004
ref: 37
JET,AIR(0.6)
€ 11.00
38
1324732210
ref: 38
SCREW,GUIDE
€ 13.00
39
1324941310
ref: 39
O RING,DRAIN PLUG
€ 5.00
40
1341331D00
ref: 40
LEVER,STARTER
€ 18.00
41
1343917C00
ref: 41
HOLDER
€ 12.00
42
0940406431
ref: 42
CLAMP(L:65)
€ 2.50
43
1326896110
ref: 43
SPRING,THROTTLE SCREW
€ 4.50
44
1327144B00
ref: 44
SPRING
€ 4.00
45
1326744B00
ref: 45
SCREW
€ 3.50
46
1362844B00
ref: 46
PLATE
€ 9.50
47
0211205127
ref: 47
SCREW
€ 2.50
48
0935530705600
ref: 48
LH L:600 250
HOSE(3X7X600)
€ 13.50
49
1362844B10
ref: 49
PLATE
€ 10.00
50
1368317C30
ref: 50
L:425 175
HOSE
€ 20.50
51
1367344B00
ref: 51
SEAL
€ 6.00
52
1368544B00
ref: 52
NIPPLE
€ 10.00
53
0935550105600
ref: 53
L:600 340
HOSE(5X10X600)
€ 7.50
54
0940711401
ref: 54
CLAMP(L:95)
€ 2.50
55
1355013D60
ref: 55
SENSOR ASSY,THROTTLE
€ 129.50
56
1360520C00
ref: 56
SCREW,SENSOR
€ 3.00
