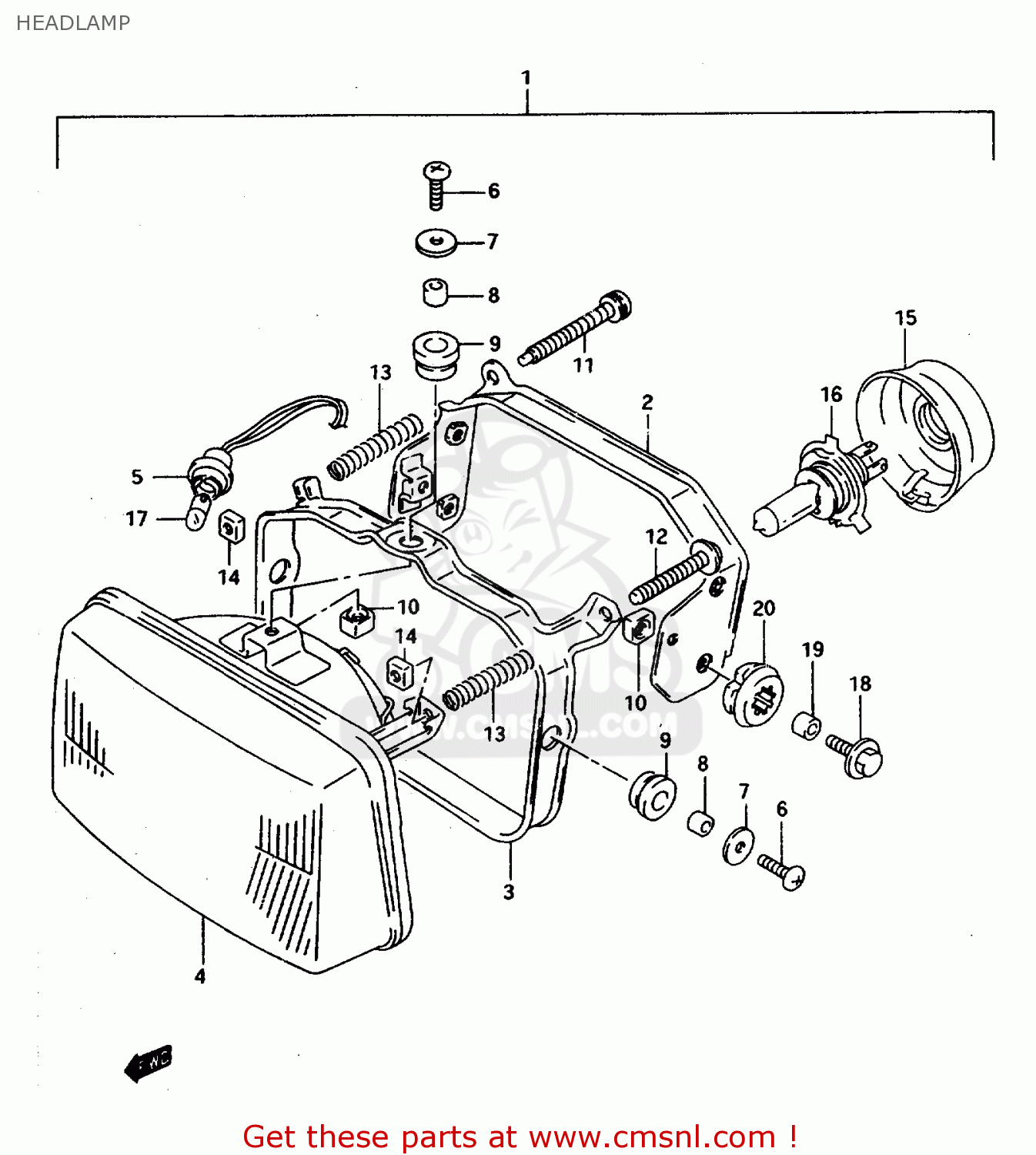

HEADLAMP

ref

part #

description

quantity

1

3510031D50999
ref: 1

HEADLAMP ASSY

€ 218.50

2

3514144B01
ref: 2

HOUSING

€ 29.00

3

3513044B01
ref: 3

RING

€ 31.00

4

3512131D00
ref: 4

UNIT ASSY

€ 152.50

5

3611842A60
ref: 5

SOCKET

€ 0.00

6

0211205163
ref: 6

SCREW

€ 2.00

7

0916005003
ref: 7

WASHER (5.5X18X1)

€ 2.00

8

3513345230
ref: 8

SPACER

€ 2.00

9

3513945230
ref: 9

CUSHION

€ 1.50

10

3513545900
ref: 10

NUT

€ 2.50

11

0211205455
ref: 11

SCREW, 5X45

€ 4.00

12

0211206553
ref: 12

SCREW

€ 2.00

13

3515431D00
ref: 13

SPRING,ADJUSTER

€ 4.00

14

3513531D00
ref: 14

NUT

€ 4.00

15

3517301440
ref: 15

COVER,SOCKET

€ 10.00

16

0947112060
ref: 16

BULB(12V60/55W,H4)

€ 8.00

17

0947112063
ref: 17

BULB(12V4W)

€ 6.00

18

0911606167
ref: 18

BOLT(6X20)

€ 2.00

19

0918006310
ref: 19

SPACER(6.5X10X10)

€ 2.00

20

0932009018
ref: 20

CUSHION

€ 2.00
