MAGNETO

DR800SU 1997 (V) GERMANY (E22)

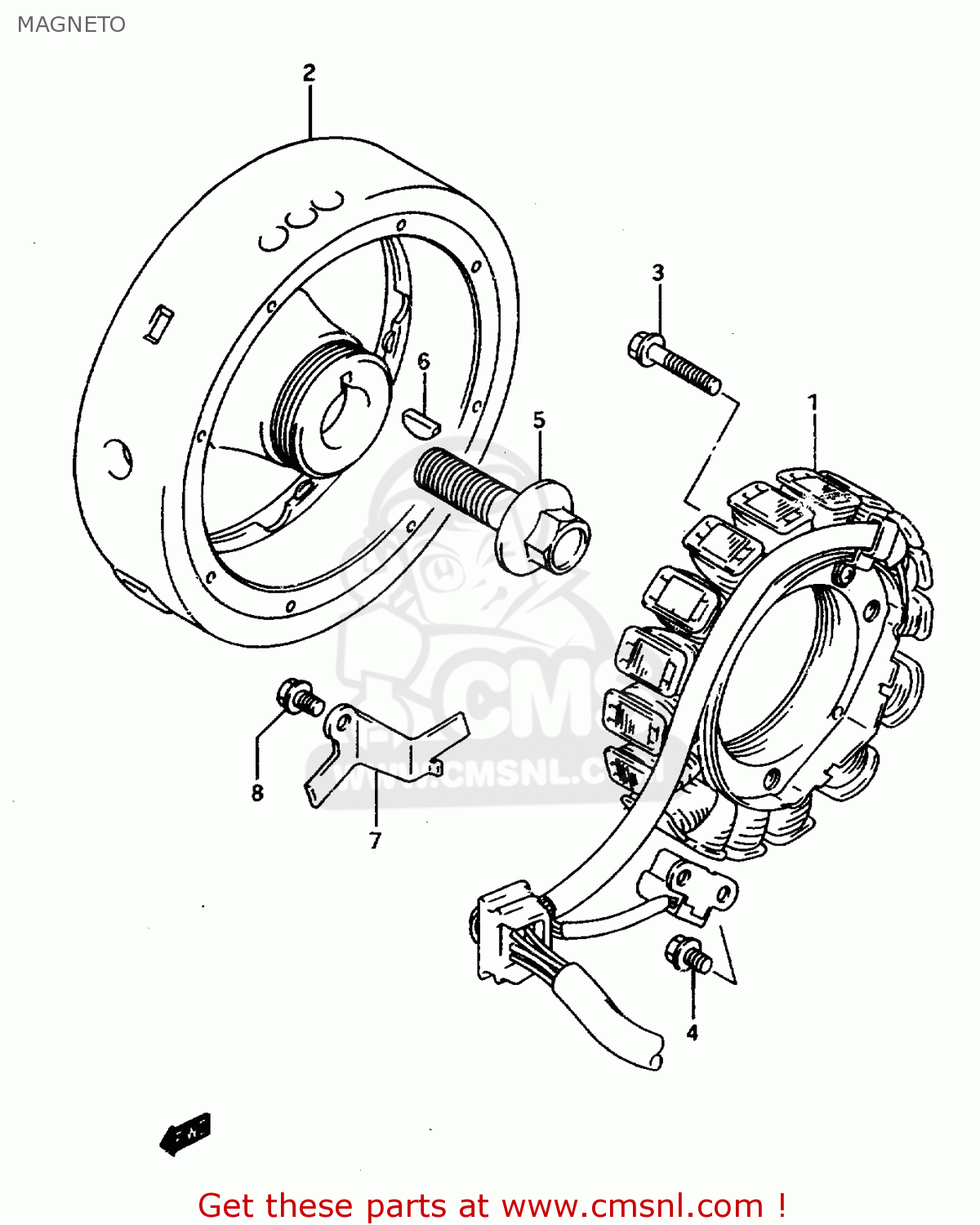

Magneto diagram DR800SU 1997 (V) GERMANY (E22)

MAGNETO DR800SU 1997 (V) GERMANY (E22)

MAGNETO DR800SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3210131D00
ref: 1

STARTER ASSY

€ 805.50

2

3210231D00
ref: 2

ROTOR

€ 805.00

3

0713006303
ref: 3

BOLT

€ 3.00

4

0154705103
ref: 4

BOLT

€ 2.50

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237144B00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8

0154705103
ref: 8

BOLT

€ 2.50
