SEAT

DR800SU 1997 (V) GERMANY (E22)

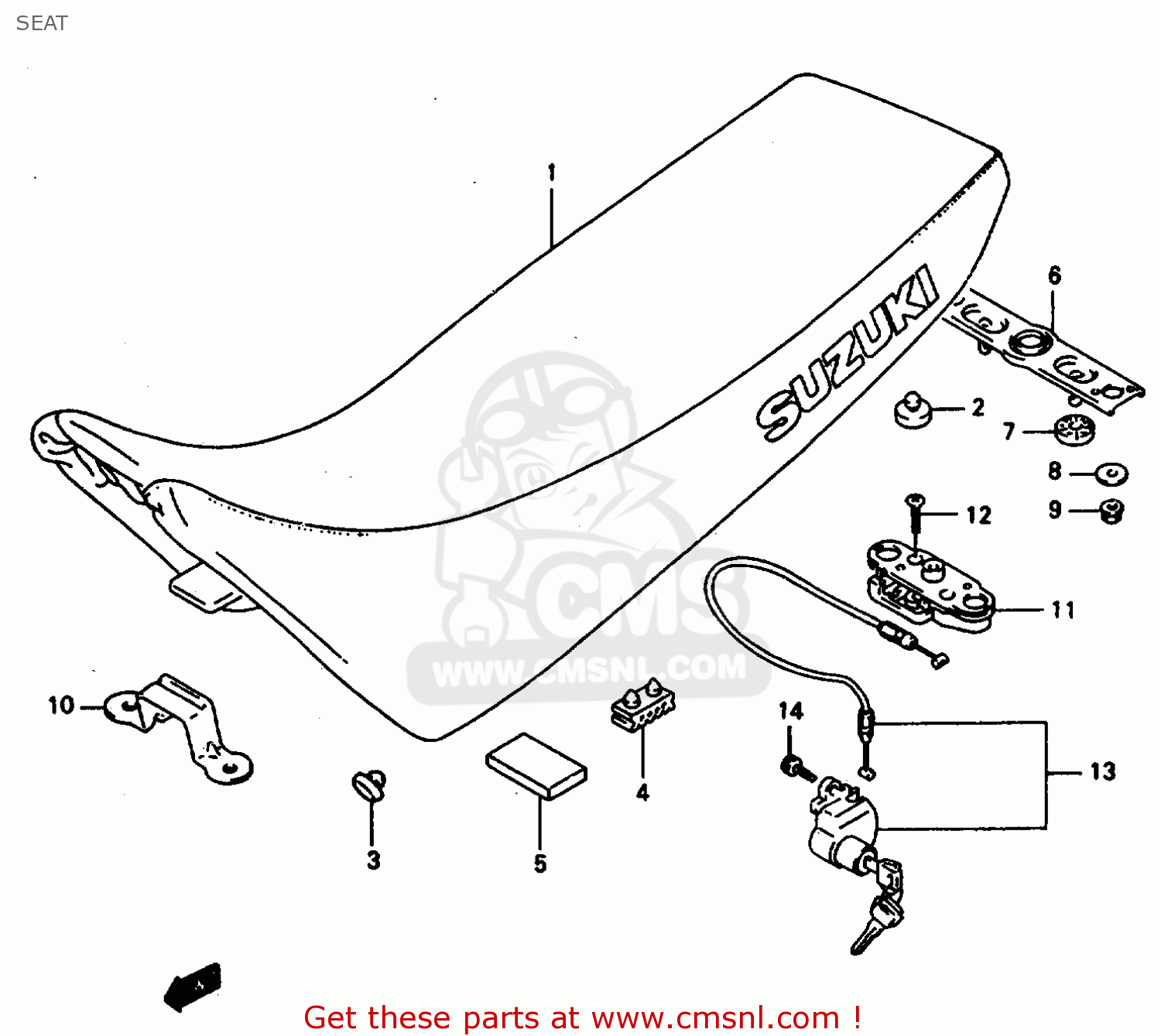

Seat diagram DR800SU 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

4510031D02A4D
ref: 1

SEAT SET

€ 508.00

0932110012
ref: 2

CUSHION

€ 3.00

0932910001
ref: 3

CUSHION

€ 2.50

4514931300
ref: 4

CUSHION,SEAT(40X20X15)

€ 2.00

4525502100
ref: 5

CUSHION,BATTERY

€ 3.00

4521022A00
ref: 6

STRIKER,SEAT LOCK

€ 80.50

4521313601
ref: 7

CUSHION,SEAT LOCK(10X22X6)

€ 1.50

0821206201
ref: 8

WASHER

€ 1.50

0831620063
ref: 9

NUT

€ 2.00

4511931D00
ref: 10

BRACKET,SEAT FR FOOK

€ 5.50

4522020A01
ref: 11

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

0212206303
ref: 12

SCREW

€ 2.00

9570031850
ref: 13

LOCK SET, SEAT

€ 95.50

0910606075
ref: 14

BOLT(6X12)

€ 2.50
