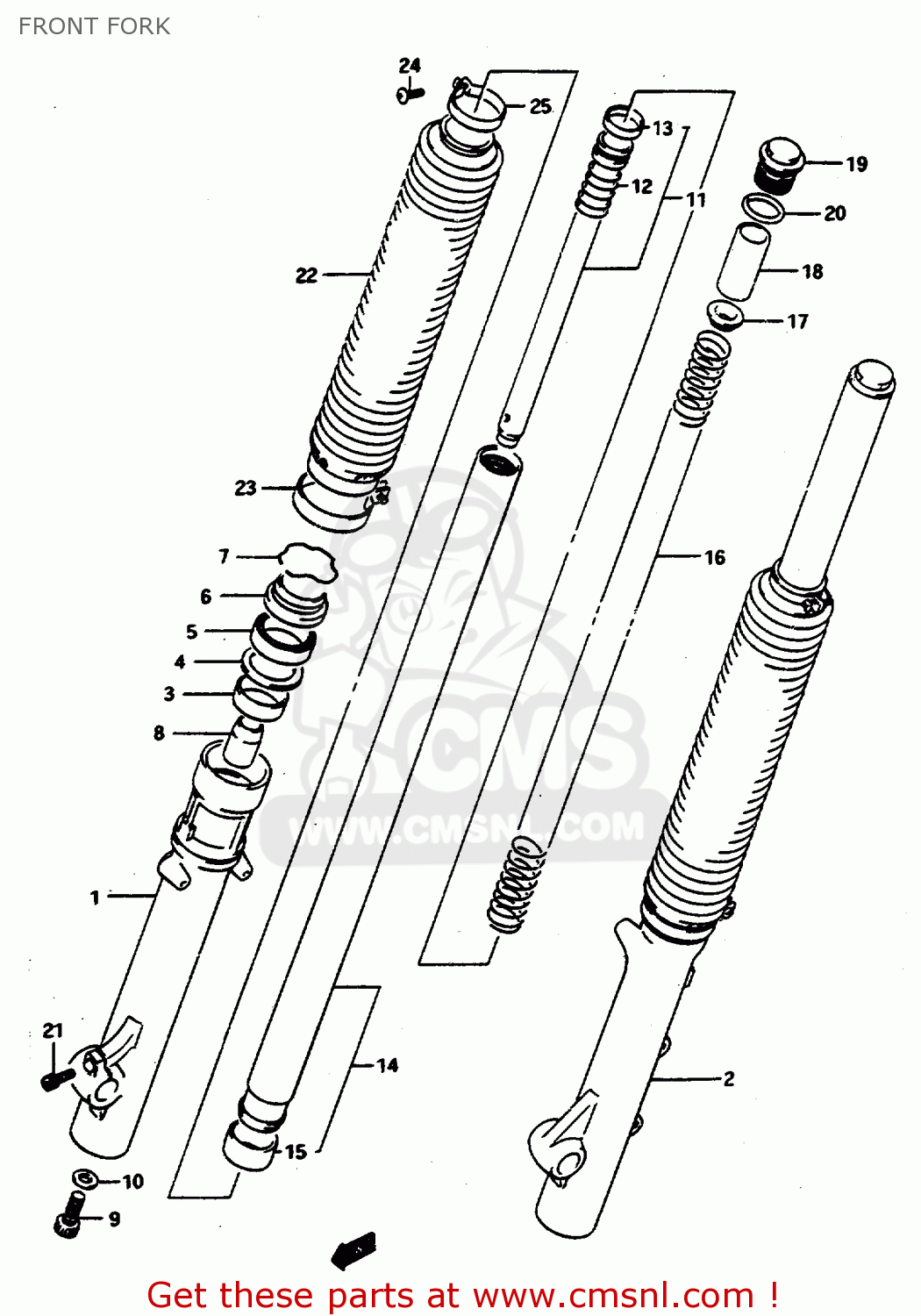

FRONT FORK

ref

part #

description

quantity

0

5110331D00
ref: 0

DAMPER ASSY, FRONT FORK RH

€ 502.00

0

5110431D00
ref: 0

DAMPER ASSY, FRONT FORK LH

€ 429.50

1

5113031D00
ref: 1

TUBE,OUTER,R

€ 377.50

2

5114031D00
ref: 2

TUBE, OUTER LH

€ 300.50

3

5116740C00
ref: 3

METAL,SLIDE

€ 13.50

4

5115814200
ref: 4

WASHER

€ 4.00

5

5115314330
ref: 5

SEAL,OIL

€ 11.00

6

5117314330
ref: 6

SEAL,DUST

€ 9.50

7

5115614200
ref: 7

RING,STOPPER

€ 4.50

8

5119506C00
ref: 8

PIECE,OIL LOCK

€ 13.00

9

5114714200
ref: 9

BOLT(14X25)

€ 5.50

10

5114814200
ref: 10

GASKET (NAS)

€ 2.00

11

5114631D00
ref: 11

CYLINDER

€ 27.50

12

5117714330
ref: 12

SPRING,REBOUND

€ 5.50

13

5119631D00
ref: 13

RING,PISTON

€ 6.00

14

5112031D00
ref: 14

TUBE,INNER

€ 322.50

15

5112140C00
ref: 15

PISTON

€ 11.50

16

5117131D00
ref: 16

SPRING

€ 29.50

17

5117214200
ref: 17

GUIDE,SPRING

€ 5.00

18

5117614520
ref: 18

SPACER,FRONT FORK SPRING

€ 4.50

19

5135131D00
ref: 19

CAP,FORK

€ 32.50

20

5111714200
ref: 20

O RING

€ 2.00

21

5113844B00
ref: 21

BOLT,SOCKET HEAD(8X22)

€ 4.00

22

5157101B201LU
ref: 22

BOOT

€ 56.50

23

5157631D00
ref: 23

BAND,BOOT LWR

€ 9.50

24

5157701B20
ref: 24

SCREW,BAND BOOT(3.5X10)

€ 2.50

25

5157501B20
ref: 25

BAND,BOOT UPR

€ 7.50
