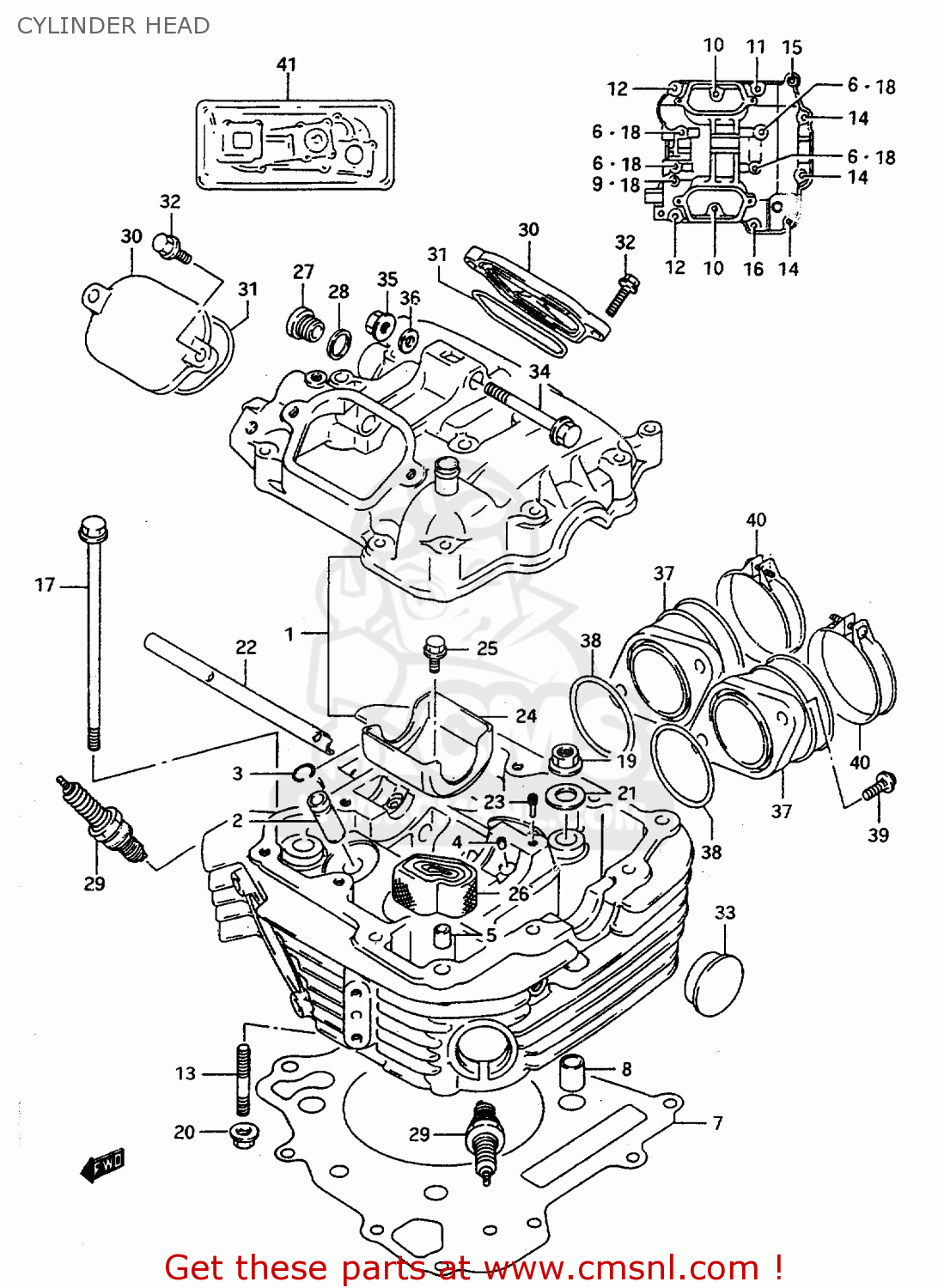

CYLINDER HEAD

ref

part #

description

quantity

1

1110031D00
ref: 1

HEAD ASSY, CYLINDER

€ 775.00

2

1111544B70
ref: 2

GUIDE,VALVE

€ 19.00

3

0938110003
ref: 3

RING,SNAP

€ 2.50

4

1118043410
ref: 4

JET,OIL GALLERY

€ 10.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0910306102
ref: 6

BOLT(6X55)

€ 2.50

7

1114144B01
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 54.00

8

0421113189
ref: 8

PIN

€ 2.50

9

0155006163
ref: 9

BOLT

€ 2.50

10

0155006253
ref: 10

BOLT

€ 2.50

11

0155006303
ref: 11

BOLT

€ 2.50

12

0155006353
ref: 12

BOLT

€ 2.50

13

0910808206
ref: 13

BOLT,STUD(8X31)

€ 3.50

14

0910306033
ref: 14

BOLT(6X125)

€ 3.50

15

0910306052
ref: 15

BOLT(6X115)

€ 5.00

16

0910306067
ref: 16

BOLT(6X105)

€ 3.50

17

0910308224
ref: 17

BOLT(8X155)

€ 10.00

18

0916806023
ref: 18

GASKET(5.8X13X1.2) (NAS)

€ 2.00

19

0831610103
ref: 19

NUT

€ 2.00

20

0831610083
ref: 20

NUT

€ 3.00

21

0916010060
ref: 21

WASHER (10.5X22X2.3)

€ 2.50

22

1113131D00
ref: 22

PIPE,CYLINDER HEAD OIL

€ 17.60

23

0913406012
ref: 23

SCREW (L:19.5)

€ 3.00

24

1113544B00
ref: 24

PLATE, OIL CHAMBER

€ 8.50

25

0155006103
ref: 25

BOLT

€ 2.50

26

1118644B01
ref: 26

SEPERATOR,OIL

€ 8.50

27

0924814005
ref: 27

PLUG,14X12

€ 5.00

28

0916814002
ref: 28

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

29-1

0948200330
ref: 29-1

PLUG,SPARK(DPR9EA-9)

€ 4.00

29-2

0948200334
ref: 29-2
OPT

PLUG,SPARK(DPR8EA-9)

€ 4.00

30

1117544B00
ref: 30

CAP,INSPECTION

€ 14.50

31

1117744B01
ref: 31

O RING,INSPECTION CAP

€ 6.00

32

0155006203
ref: 32

BOLT

€ 2.50

33

0924130004
ref: 33

PLUG(OD:30)

€ 6.50

34

0910308332
ref: 34

BOLT(8X53)

€ 3.50

35

0831931085
ref: 35

NUT

€ 2.50

36

0832101083
ref: 36

LOCK WASHER

€ 2.50

37

1310044B00
ref: 37

PIPECOMP,INT

€ 36.50

38

0928040010
ref: 38

O RING(D:2.4,ID:39.7)

€ 3.50

39

0211216203
ref: 39

SCREW

€ 2.50

40

0940252208
ref: 40

CLAMP

€ 5.50

41

1140131811
ref: 41

GASKET SET

€ 104.50
