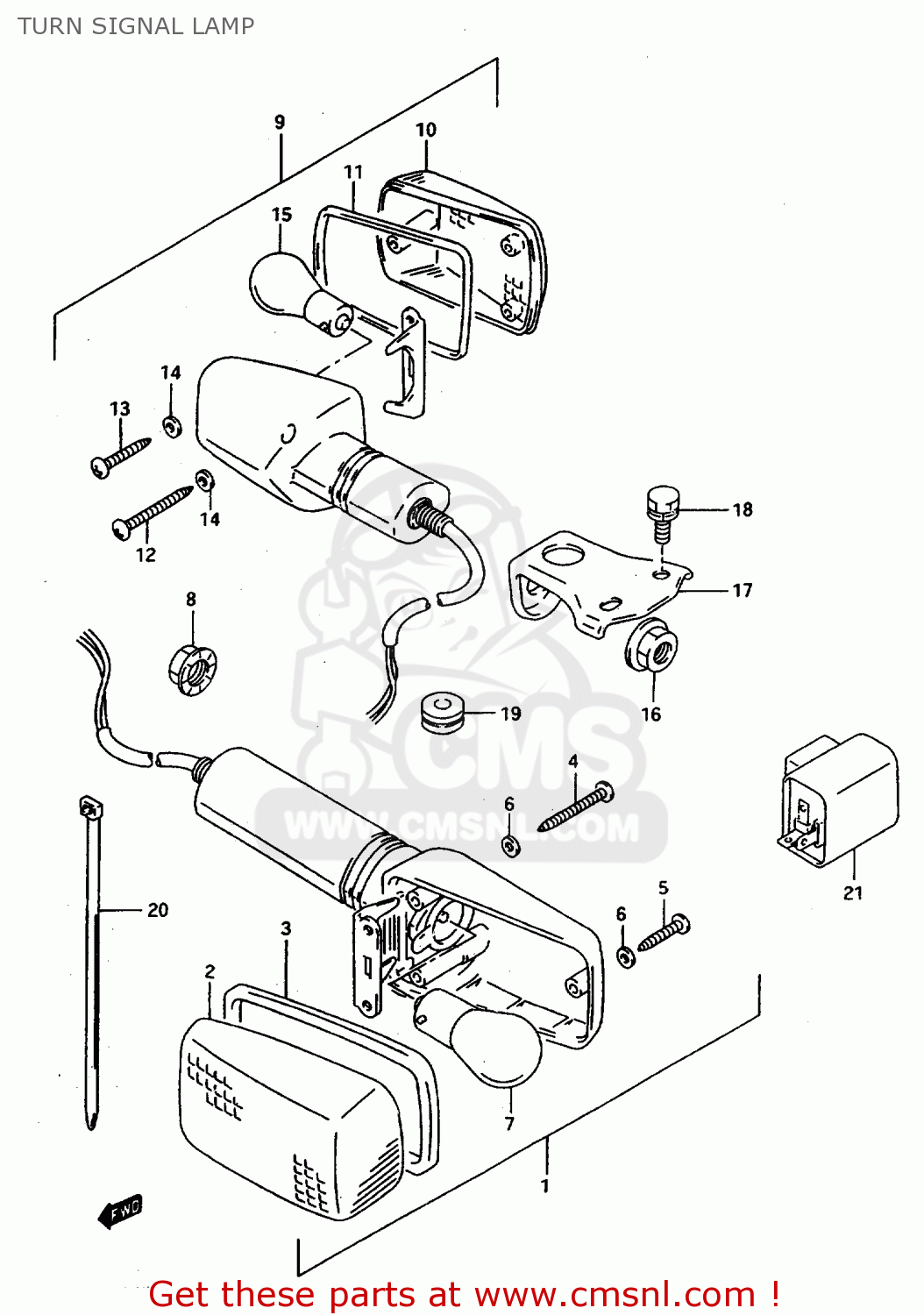

TURN SIGNAL LAMP

ref

part #

description

quantity

1-1

3560129E30
ref: 1-1

LAMP ASSY,FR TURN SIGNAL

€ 57.50

1-2

3560129EC0
ref: 1-2
E22,E34

LAMP ASSY,FR TURN SIGNAL

€ 78.00

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

0831610103
ref: 8

NUT

€ 2.00

9

3560329E90
ref: 9

LAMP ASSY,RR TURNSIGNAL,R

€ 62.00

10

3565217C20
ref: 10

LENS

€ 6.50

11

3561327A00
ref: 11

GASKET (NAS)

€ 3.00

12

3562327A00
ref: 12

SCREW(3X30)

€ 1.50

13

3572540511
ref: 13

SCREW

€ 1.50

14

3562727A02
ref: 14

GASKET (NAS)

€ 1.50

15

0947112045
ref: 15

BULB(12V21W)

€ 5.00

16

0831610103
ref: 16

NUT

€ 2.00

17

3562131D00
ref: 17

BRACKET,RR TURNSIGNAL

€ 38.50

18

0157006103
ref: 18

BOLT

€ 2.50

19

0930805015
ref: 19

GROMMET

€ 4.50

20

0940406429
ref: 20

CLAMP(L:45)

€ 2.50

21

3861045D01
ref: 21

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

all assemblies
