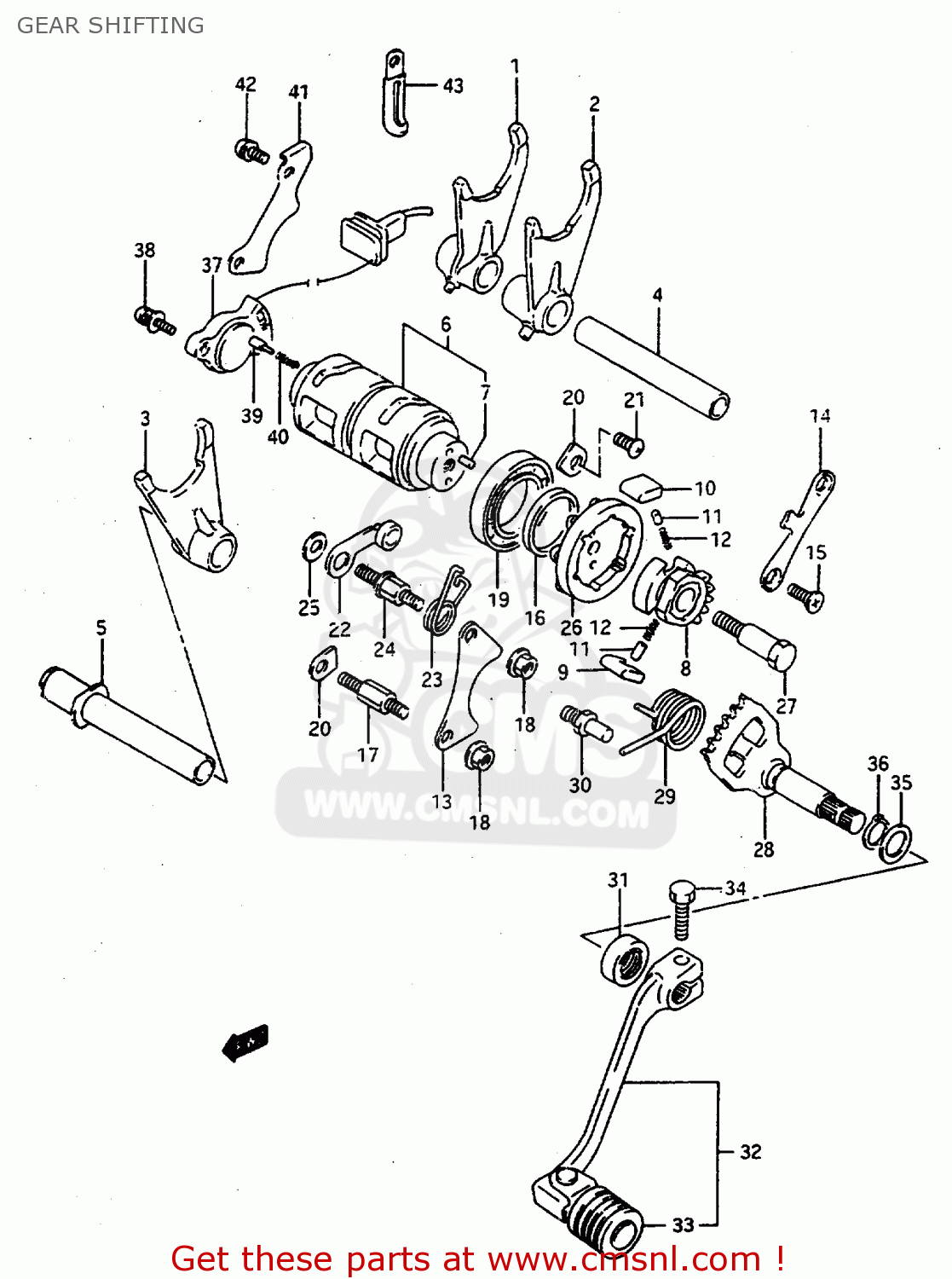

GEAR SHIFTING

ref

part #

description

quantity

1

2521144B00
ref: 1

FORK,GEAR SHIFT NO.1

€ 94.00

2

2522144B00
ref: 2

FORK,GEAR SHIFT NO.2

€ 86.00

3

2523144B00
ref: 3

FORK, GEAR SHIFTING NO.3

€ 55.50

4

2541144B00
ref: 4

SHAFT,GEAR SHIFT FORK NO.1

€ 19.50

5

2542144B01
ref: 5

SHAFT,GEAR SHIFT FORK NO.2

€ 43.50

6

2531044B00
ref: 6

CAM,GEAR SHIFT

€ 144.00

7

0422104089
ref: 7

PIN

€ 1.50

8

2532231302
ref: 8

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

9

2532334201
ref: 9

PAWL,GEAR SHIFT NO.1

€ 6.00

10

2532434201
ref: 10

PAWL,GEAR SHIFT NO.2

€ 6.00

11

0926105003
ref: 11

PIN(5X8)

€ 1.50

12

0944004003
ref: 12

SPRING

€ 1.50

13

2533138A00
ref: 13

LIFTER,GEAR SHIFT POLE

€ 4.50

14

2534138A00
ref: 14

GUIDE,GEAR SHIFT CAM

€ 6.00

15

0212206123
ref: 15

SCREW

€ 3.00

16

0916025059
ref: 16

WASHER(25X32X3)

€ 5.00

17

2533238A00
ref: 17

BOSS,SHIFT PAWL LIFTER

€ 3.50

18

0831610063
ref: 18

NUT

€ 2.50

19

0926225006
ref: 19

BEARING(25X47X8)

€ 24.00

20

2474121A00
ref: 20

RETAINER

€ 2.00

21

0211206123
ref: 21

SCREW

€ 1.50

22

2535024B00
ref: 22

STOPPER,GEAR SHIFT CAM

€ 8.00

23

0944817021
ref: 23

SPRING

€ 5.00

24

2535612C00
ref: 24

SUPPORT,CAM STOPPER ARM

€ 9.50

25

0821106141
ref: 25

WASHER

€ 2.50

26

2538038A02
ref: 26

PLATE,GEAR SHIFT CAM

€ 15.00

27

2531238A00
ref: 27

PIN,SHIFT CAM DRIVEN GEAR

€ 4.00

28

2551044B00
ref: 28

SHAFT,GEAR SHIFT

€ 61.00

29

0944426013
ref: 29

SPRING

€ 3.50

30

2567136A00
ref: 30

STOPPER,GEAR SHIFT ARM

€ 3.00

31

0928512002
ref: 31

OIL SEAL

€ 7.00

32

2560031D00
ref: 32

LEVER ASSY,GEAR SHIFT

€ 102.00

33

2565203D00
ref: 33

RUBBER,GEAR SHIFT PEDAL

€ 3.50

34

0150006203
ref: 34

BOLT

€ 2.00

35

0821212201
ref: 35

WASHER

€ 1.50

36

0833131126
ref: 36

CIRCLIP,12 MM

€ 2.00

37

3772044B00
ref: 37

BASE ASSY,NEUTRAL SW TERMINAL

€ 72.50

38

0211275163
ref: 38

SCREW

€ 2.50

39

0920905011
ref: 39

PIN(5X15.5)

€ 2.00

40

0944004010
ref: 40

SPRING

€ 1.50

41

3772144B00
ref: 41

CLAMP, LEAD WIRE

€ 3.00

42

0211236103
ref: 42

SCREW

€ 1.50

43

0940406429
ref: 43

CLAMP(L:45)

€ 2.50
