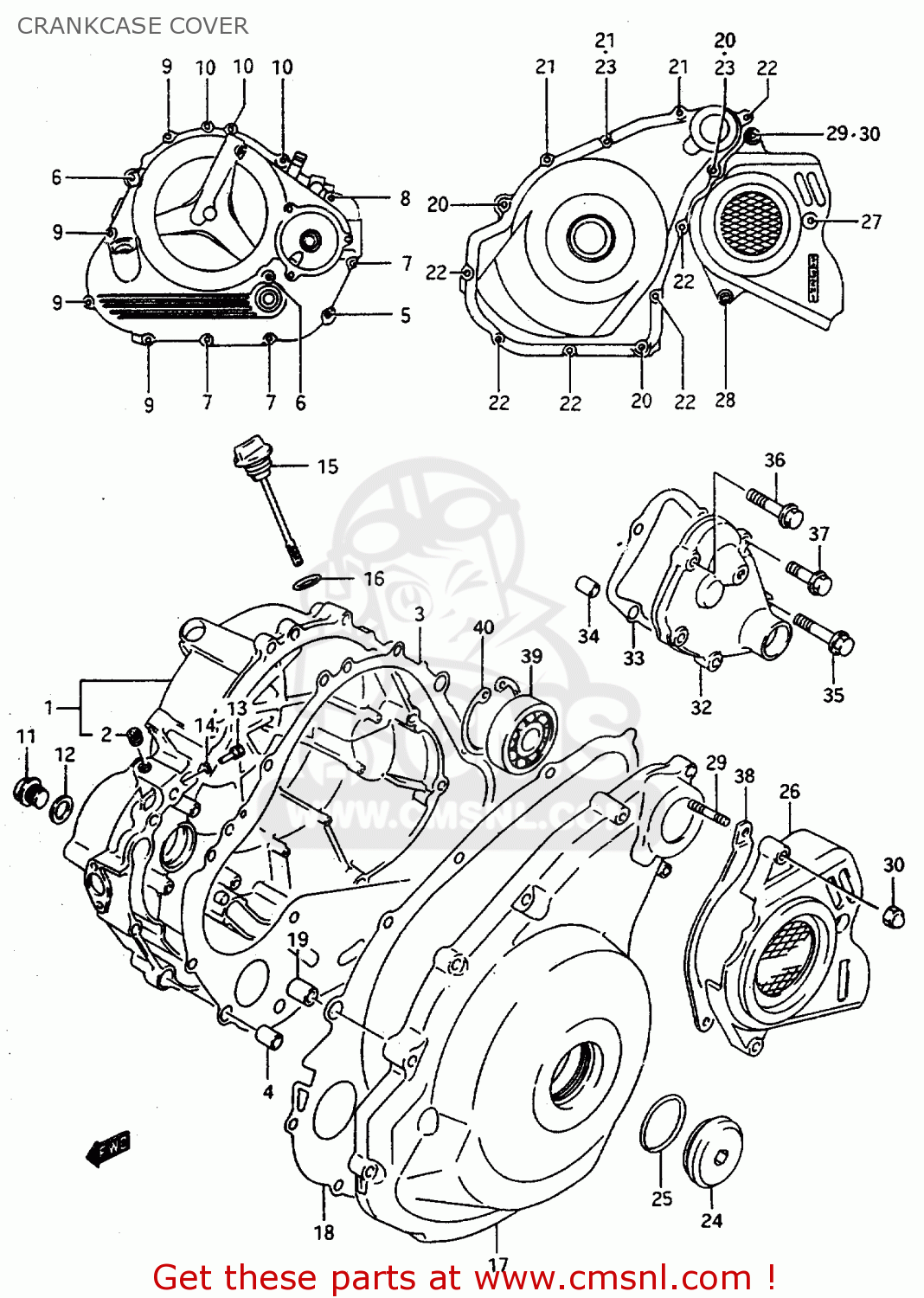

CRANKCASE COVER

ref

part #

description

quantity

1

1134044B0220H
ref: 1

COVER,CLUTCH

€ 375.00

2

0924605006
ref: 2

PLUG(1/8PT,H:5.5)

€ 3.50

3

1148244B10
ref: 3

GASKET,CLUTCH COVER (NAS)

€ 48.50

4

0421113189
ref: 4

PIN

€ 2.50

5

0154706607
ref: 5

BOLT

€ 2.50

6

0154706507
ref: 6

BOLT

€ 2.50

7

0154706457
ref: 7

BOLT

€ 2.50

8

0154706407
ref: 8

BOLT

€ 2.50

9

0154706307
ref: 9

BOLT

€ 2.50

10

0154706257
ref: 10

BOLT

€ 2.50

11

0924714015
ref: 11

PLUG(14X12)

€ 2.50

12

0916814002
ref: 12

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

13

0949336003
ref: 13

JET

€ 9.00

14

0928004004
ref: 14

O RING(D:1.2,ID:4)

€ 2.00

15

1197044B30
ref: 15

GAUGE,OIL LEVEL

€ 19.50

16

0928017003
ref: 16

O RING(D:3.1,ID:16.8)

€ 2.00

17

1135144B1120H
ref: 17

COVER, MAGNETO

€ 149.50

18

1148344B11
ref: 18

GASKET,MAGNETO COVER (NAS)

€ 68.50

19

0421113189
ref: 19

PIN

€ 2.50

20

0154706457
ref: 20

BOLT

€ 2.50

21

0154706357
ref: 21

BOLT

€ 2.50

22

0154706257
ref: 22

BOLT

€ 2.50

23

0916806024
ref: 23

GASKET(5.8X11X1.2) (NAS)

€ 2.00

24

092593601620H
ref: 24

PLUG(SILVER)

€ 10.50

25

0928033004
ref: 25

O RING(D:3.1,ID:32.7)

€ 2.50

26

1136044B0020H
ref: 26

COVER,ENGINE SPROCKET

€ 51.50

27

0154706307
ref: 27

BOLT

€ 2.50

28

0154706257
ref: 28

BOLT

€ 2.50

29

0910806107
ref: 29

BOLT,STUD

€ 4.00

30

0831320067
ref: 30

NUT

€ 2.00

32

1137144B0020H
ref: 32

COVER,GEAR SHIFT

€ 64.00

33

1148544B10
ref: 33

GASKET,GEAR SHIFT COVER (NAS)

€ 10.00

34

0421109129
ref: 34

PIN

€ 2.00

35

0154706303
ref: 35

BOLT,G/S SWITC

€ 3.00

36

0154706253
ref: 36

SCREW

€ 2.50

37

0154706163
ref: 37

BOLT

€ 2.50

38

2764144B01
ref: 38

PLATE,FR CHAIN GUIDE

€ 5.50

39

0926212001
ref: 39

BEARING(12X28X8)

€ 15.00

40

0833141286
ref: 40

CIRCLIP

€ 3.50
