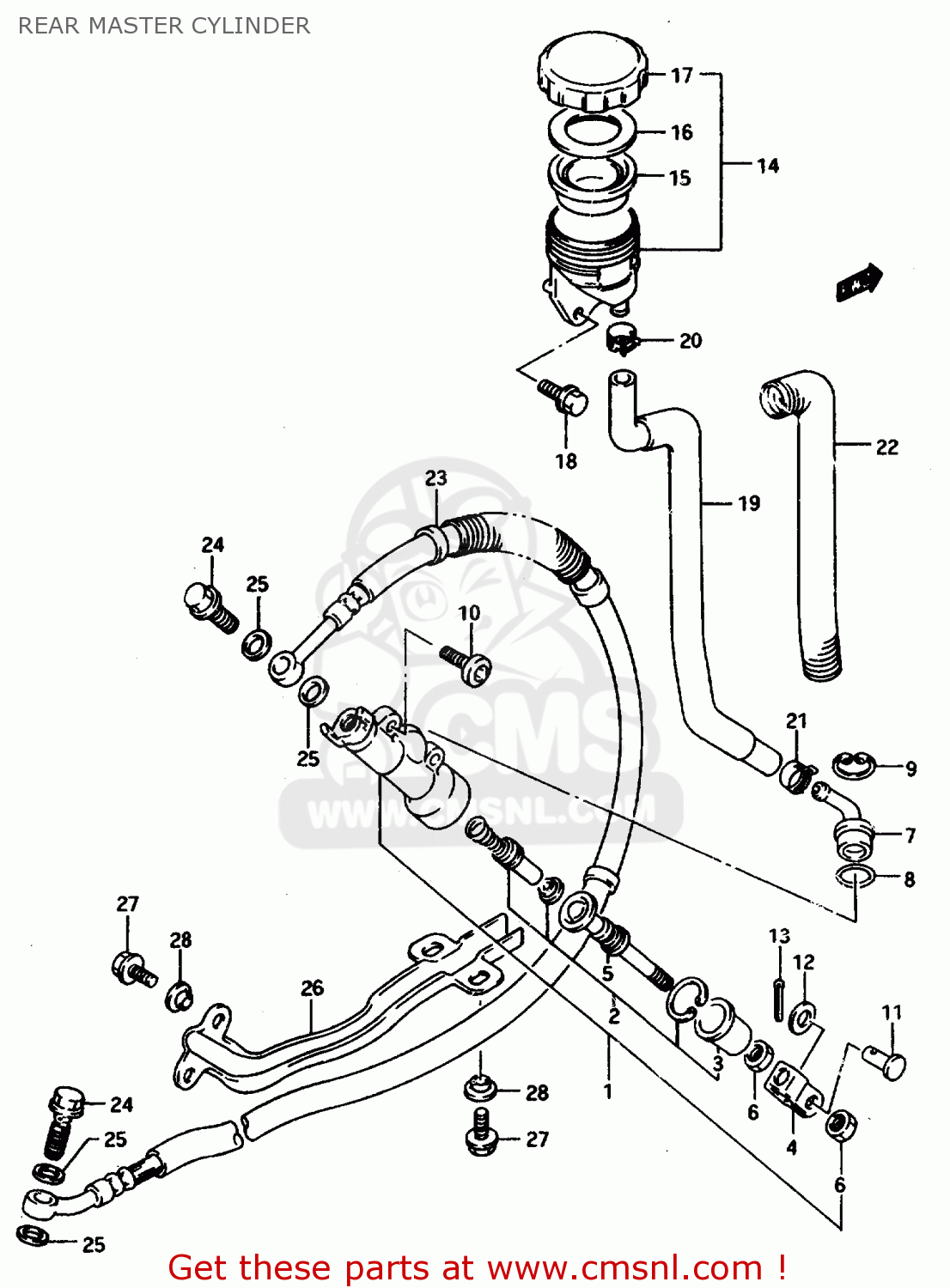

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960031D00
ref: 1

CYLINDER ASSY, REAR MASTER

€ 131.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969200B21
ref: 4

YOKE

€ 13.50

5

6967044B00
ref: 5

ROD,PUSH

€ 19.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0913906067
ref: 10

SCREW(6X16)

€ 3.00

11

0920008048
ref: 11

PIN(8X20)

€ 3.00

12

0916008074
ref: 12

WASHER(8.5X13X1.6)

€ 2.50

13

0411120158
ref: 13

PIN

€ 1.50

14

6974031D00
ref: 14

TANK ASSY,RR RESERVOIR

€ 27.50

15

5966718441
ref: 15

DIAPHRAGM

€ 8.50

16

5966818441
ref: 16

PLATE,DIAPHRAGM

€ 3.50

17

5966907D00
ref: 17

CAP

€ 16.50

18

0155006123
ref: 18

BOLT

€ 2.50

19

6973031D00
ref: 19

HOSE,RESERVOIR TANK

€ 24.00

20

0940113413
ref: 20

CLIP

€ 2.50

21

0940112404
ref: 21

CLIP

€ 2.50

22

6973231D00
ref: 22

SHIELD, HOSE HEAT

€ 12.50

23

6948031D01
ref: 23

HOSE,RR BRAKE

€ 127.00

24

0936010040
ref: 24

BOLT UNION

€ 5.00

25

0916110009
ref: 25

WASHER(10X15X1.5)

€ 2.00

26

6926144B00
ref: 26

PROTECTOR, BRAKE HOSE

€ 20.00

27

0910306083
ref: 27

BOLT 6X12

€ 2.50

28

0916906037
ref: 28

WASHER

€ 6.50
