AIR CLEANER

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

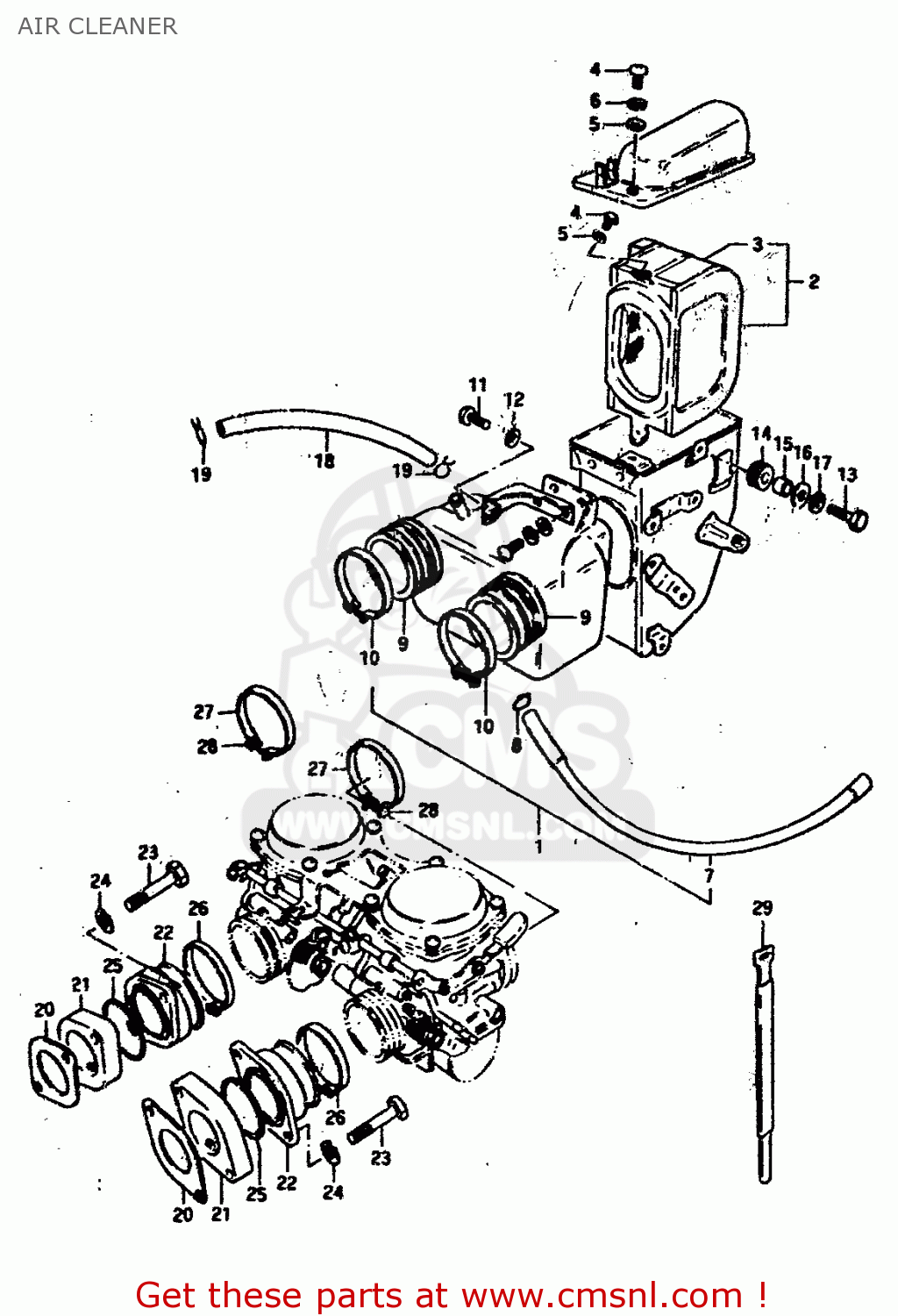

Air cleaner diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

AIR CLEANER GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
AIR CLEANER GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
AIR CLEANER GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1370044011
ref: 1
CLEANER ASSEMBLY,AIR
€ 215.50
2
1378044010
ref: 2
FILTER ASSY
1378044010
€ 40.00
3
1378144010
ref: 3
FILTER
1378144010
€ 20.00
4
0211205108
ref: 4
SCREW
0211205108
€ 2.00
5
0832221058
ref: 5
WASHER
€ 2.50
6
0832121058
ref: 6
LOCK WASHER
0832121058
€ 2.00
7
1379144010
ref: 7
HOLDER,FILTER
1379144010
€ 6.00
8
1379544010
ref: 8
HOSE,AIR CLEANER
€ 2.00
9
1372244010
ref: 9
HOSE,AIR CLEANER INLET
1372244010
€ 28.50
10
0940260300
ref: 10
CLAMP
€ 0.00
11
0211206108
ref: 11
SCREW
0211206108
€ 1.50
12
0832221068
ref: 12
WASHER
0832221068
€ 2.00
13
0110706208
ref: 13
BOLT
0110706208
€ 2.00
14
0932008001
ref: 14
CUSHION
0932008001
€ 3.50
15
0918006011
ref: 15
SPACER (6.1X9X9)
0918006011
€ 2.00
16
0916006007
ref: 16
WASHER
0916006007
€ 2.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
0934311005
ref: 18
HOSE
€ 30.00
19
0940114301
ref: 19
CLIP
0940114301
€ 2.00
20
1312544001
ref: 20
GASKET,CARBURETOR (NAS)
1312544001
€ 4.50
21
1312944001
ref: 21
INSULATOR,CARBURETOR
€ 10.50
22
1311044001
ref: 22
PIPE,INTAKE
1311044001
€ 40.00
23
0110706358
ref: 23
BOLT
0110706358
€ 2.50
24
0832121068
ref: 24
LOCK WASHER
0832121068
€ 2.50
25
0928040003
ref: 25
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
26
0940254303
ref: 26
CLAMP
0940254303
€ 4.00
27
0940258306
ref: 27
CLAMP
0940258306
€ 5.00
28
0311104258
ref: 28
SCREW
0311104258
€ 1.50
29
0940718301
ref: 29
CLAMP
0940718301
€ 6.00
