Buy Suzuki GS Parts Online


HEADLAMP

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

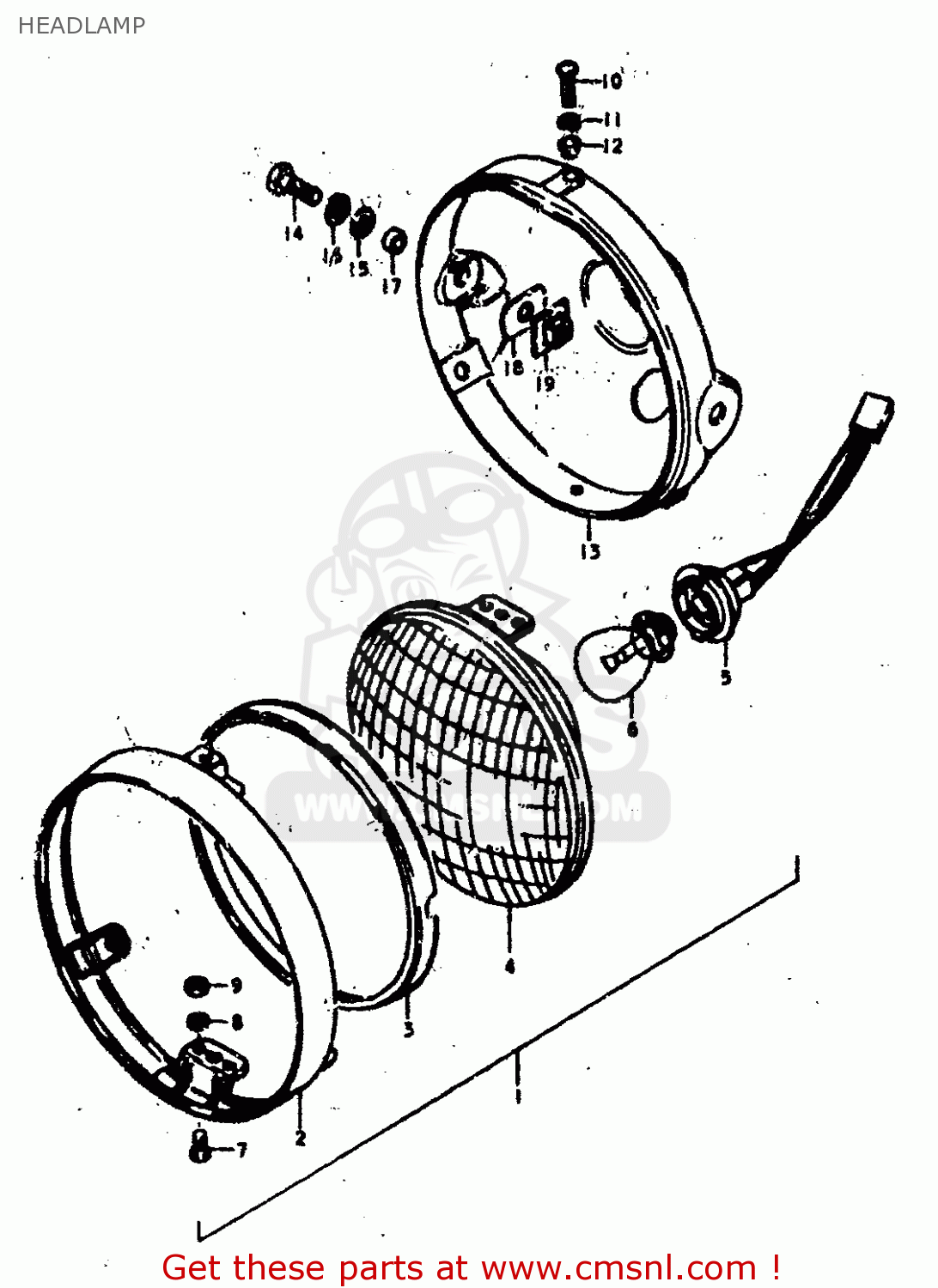

Headlamp diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

HEADLAMP GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
HEADLAMP GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
HEADLAMP GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3510044030
ref: 1
HEADLAMP ASSY
€ 158.50
2
3511144030
ref: 2
RIM
3511144030
€ 46.50
3-1
3512733031
ref: 3-1
TO 35127-33032
RETAINER,HEADLAMP
3512733031
€ 17.00
4
3512144030
ref: 4
UNIT
€ 0.00
5
3517144030
ref: 5
SOCKET
3517144030
€ 34.50
6
0947112044
ref: 6
12V,45/45W
BULB
€ 8.50
7
0211205107
ref: 7
SCREW
0211205107
€ 2.00
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
0831022058
ref: 9
NUT
€ 2.50
10
0912505022
ref: 10
SCREW
0912505022
€ 3.50
11
0916205003
ref: 11
WASHER,LOCK
0916205003
€ 2.00
12
0916906021
ref: 12
WASHER
0916906021
€ 2.50
13
5181144000291
ref: 13
HOUSING,HEADLAMP(BLACK)
5181144000291
€ 63.00
14
0120408257
ref: 14
BOLT
0120408257
€ 2.00
15
0832211088
ref: 15
WASHER
0832211088
€ 2.00
16
0832121088
ref: 16
LOCK WASHER
0832121088
€ 2.00
17
0918008030
ref: 17
SPACER (8.8X12X7)
0918008030
€ 3.50
18
0932912002
ref: 18
CUSHION
0932912002
€ 3.00
19
5186045000
ref: 19
PLATE,HEADLAMP HOUSING
5186045000
€ 2.00
