REAR COMBINATION LAMP

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

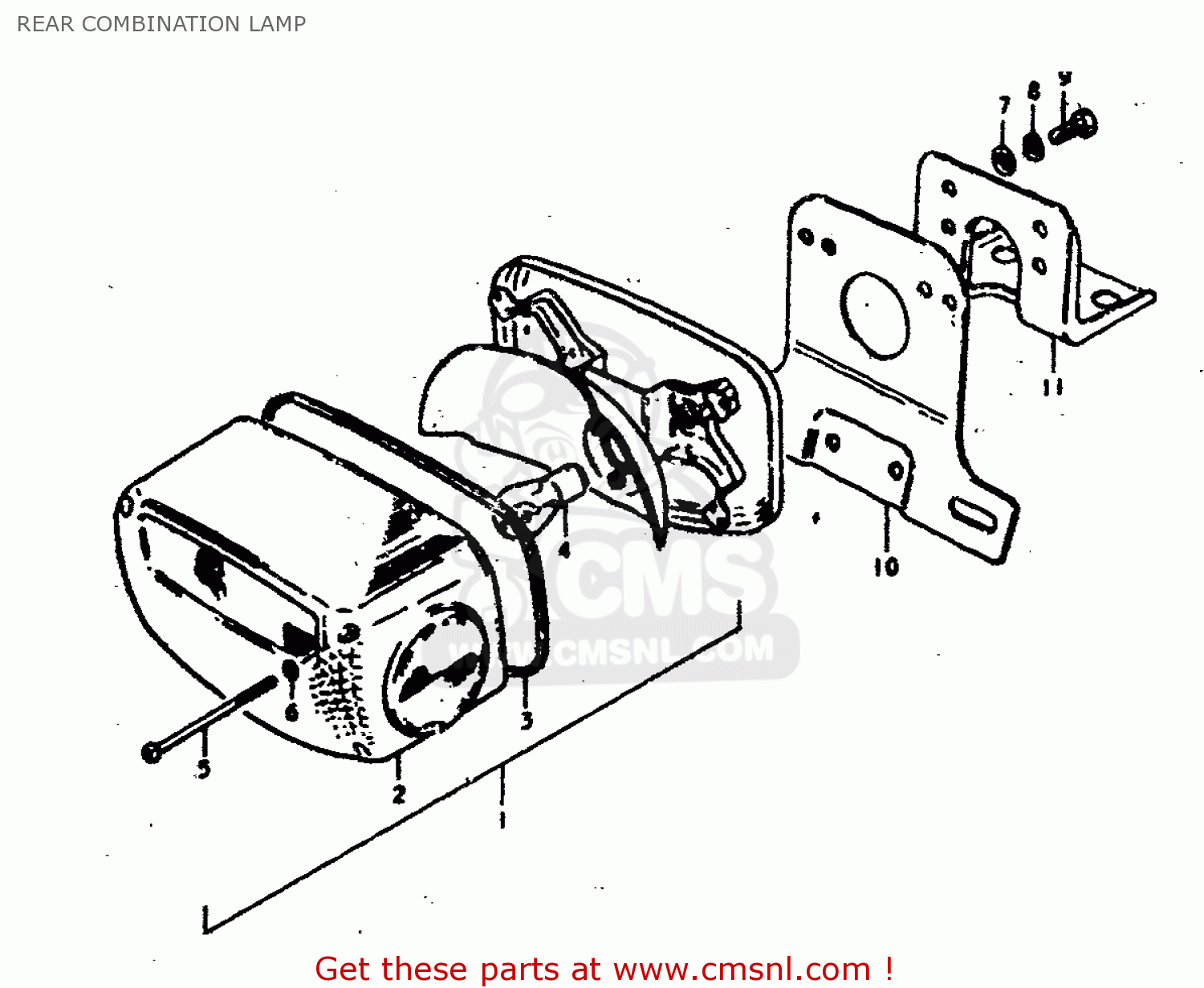

Rear combination lamp diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

prices are in EUR

ref

part #

description

quantity

3571045011
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 192.00

3571245011
ref: 2

LENS,REAR COMBINATION LAMP

€ 63.00

3571345010
ref: 3

GASKET (NAS)

€ 9.00

0947112035
ref: 4
12V 23/8W

BULB(12V23W)

€ 5.50

0211104558
ref: 5

SCREW

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0832221068
ref: 7

WASHER

€ 2.00

0832121068
ref: 8

LOCK WASHER

€ 2.50

0110706128
ref: 9

BOLT

€ 2.00

3592745002
ref: 10

BRACKET,LICENSE PLATE

€ 17.00

11-1

3592845000
ref: 11-1
TO 35928-45000

BRACKET,LICENSE PLATE

€ 8.50
