Buy Suzuki GS Parts Online


SPECIAL MARKET (E22)

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

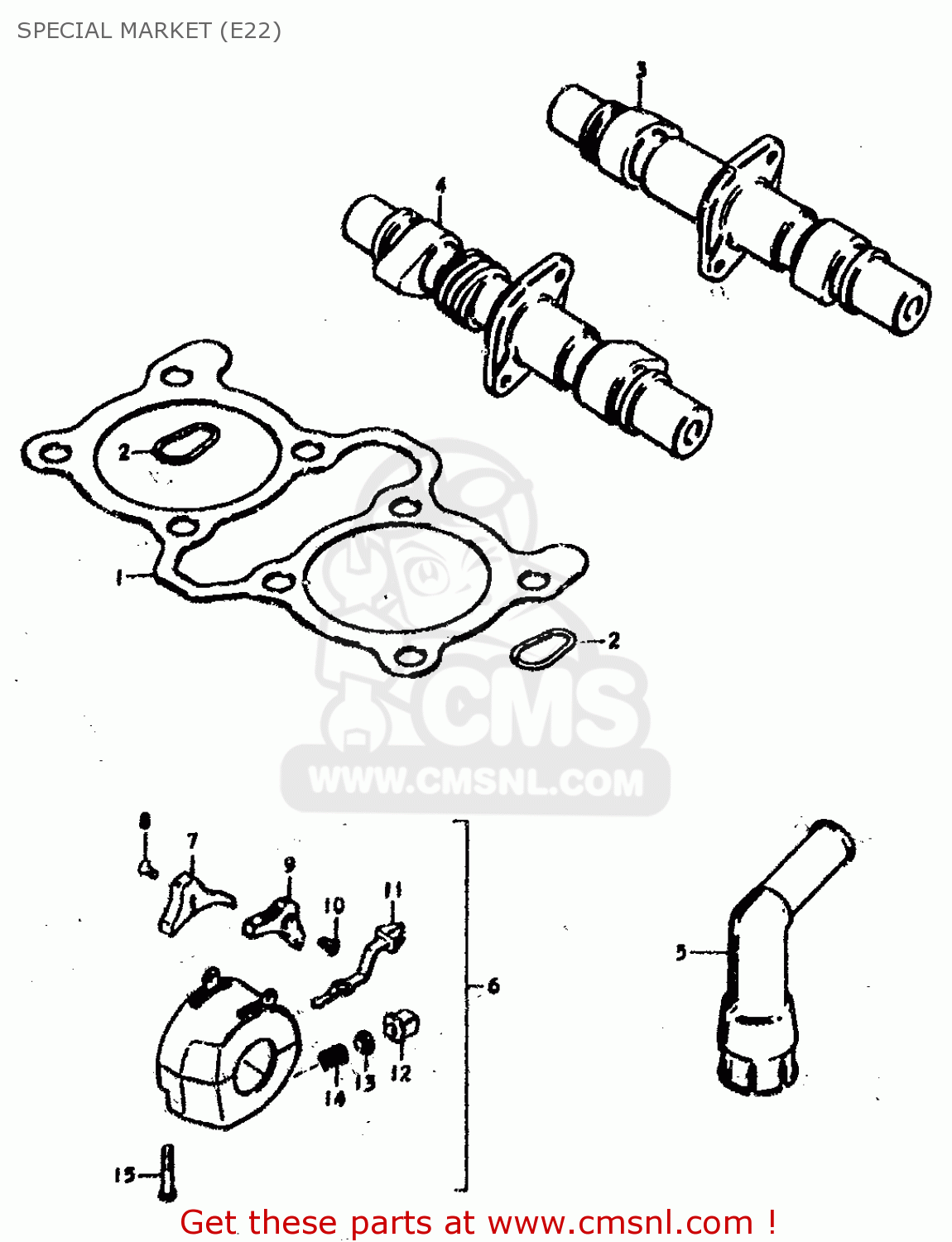

Special market (e22) diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

SPECIAL MARKET (E22) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
SPECIAL MARKET (E22) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
SPECIAL MARKET (E22) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1124144600
ref: 1
GASKET,CYLINDER
€ 17.50
2
0928021006
ref: 2
O RING,CYLINDER NO.2
0928021006
€ 2.00
3
1271144602
ref: 3
CAM SHAFT,INTAKE
€ 0.00
4
1272144602
ref: 4
CAM SHAFT,EXHAUST
€ 118.50
5
3351044600
ref: 5
CAP, SPARK PLUG (S)
3351044600
€ 40.00
6-1
3740045611
ref: 6-1
TO 37400-45612
SWITCH ASSY,HANDLE LH
€ 150.50
7-1
3741145011
ref: 7-1
TO 37411-45012
KNOB,LIGHTING SWITCH
€ 4.50
8
0211103067
ref: 8
SCREW
0211103067
€ 2.00
9-1
3742145011
ref: 9-1
TO 37421-45012
KNOB,DIMMER SWITCH
3742145011
€ 5.50
10
0211103067
ref: 10
SCREW
0211103067
€ 2.00
11
3751345011
ref: 11
KNOB,TURNSIGNAL
3751345011
€ 6.50
12
5737145000
ref: 12
BUTTON,HORN
5737145000
€ 3.00
13
5737245000
ref: 13
CONTACT
5737245000
€ 3.00
14
5738245000
ref: 14
SPRING
5738245000
€ 2.50
15
0211205258
ref: 15
SCREW
0211205258
€ 2.00
