GENERATOR

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

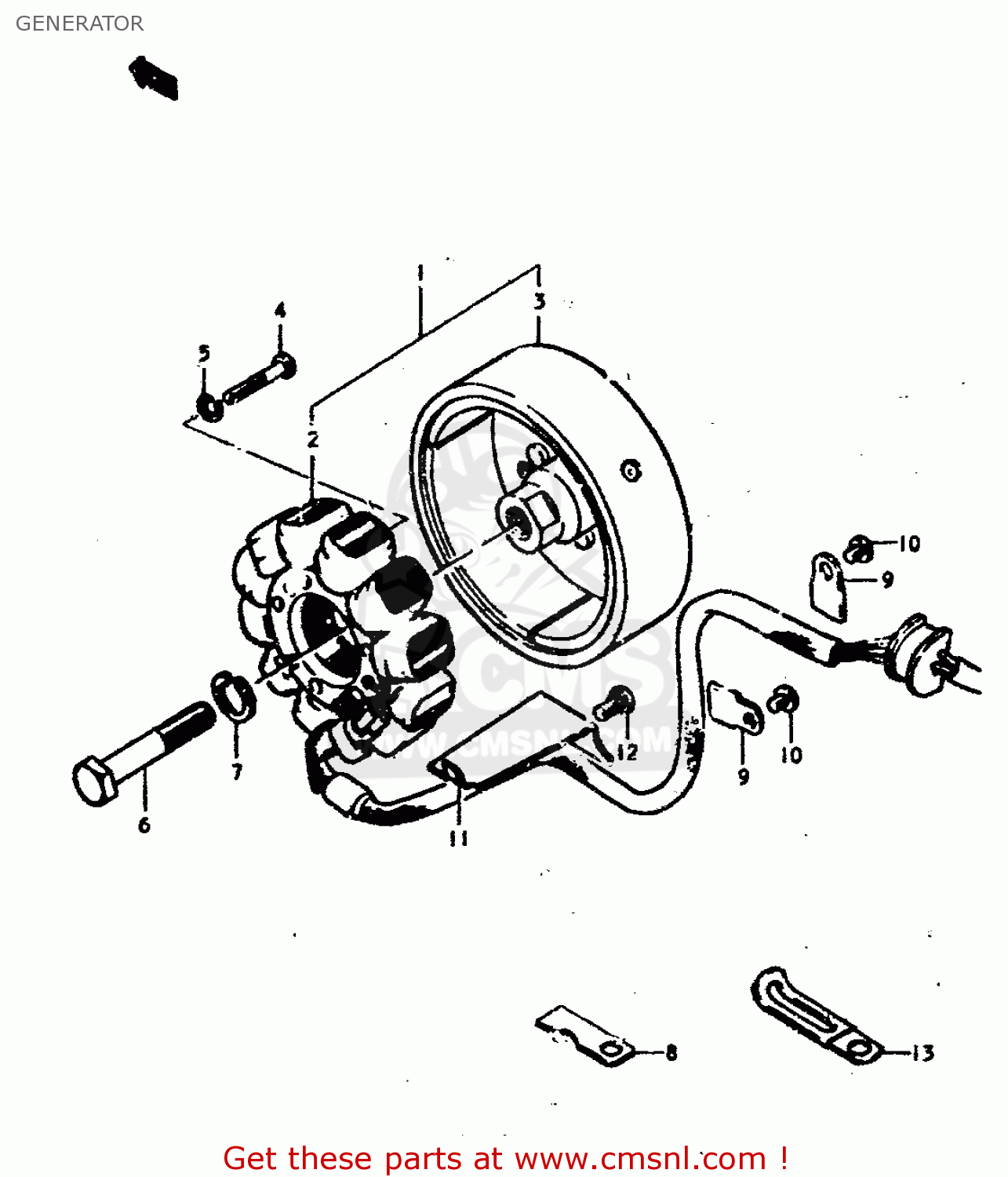

Generator diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

prices are in EUR

ref

part #

description

quantity

3140045011
ref: 1

GENERATOR ASSEMBLY

€ 712.50

3140145011
ref: 2

STARTER ASSY

€ 372.50

3140245011
ref: 3

ROTOR ASSEMBLY

€ 348.50

0211205308
ref: 4

SCREW

€ 1.50

0832121058
ref: 5

LOCK WASHER

€ 2.00

0110712458
ref: 6

BOLT 12X45

€ 5.50

0832121128
ref: 7

WASHER,LOCK 12

€ 2.50

3149744000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 0.00

3149745000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205068
ref: 10

SCREW

€ 4.00

3149845000
ref: 11

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 12

SCREW

€ 1.50

0940406401
ref: 13

CLAMP L:35

€ 2.50
